Product Name: | Sandwich Panel Production Line | Type: | Manual,Semi Automatic,Full Automatic |
---|---|---|---|
Advantage: | High Output, Easy Maintenance | Life Time: | More Than 20 Years |
Warranty: | 1 Year | Voltage: | 220V Or 380V |
exterior eps sandwich panel production line , lightweight wall panel machine
1.Our machine can produce 8 kinds of sandwich panel :
2. Specification of exterior eps sandwich panel production line , lightweight wall panel machine
VJ-HT2270 | ||||||
Name | Main Parameters | |||||
Overall Dimensions(L*W*H) | 3180*1380*3480mm | |||||
Weight | 2800KG | |||||
Mobie Power(KW) | 2.2 | |||||
Mobie Speed(m/min) | ≤60 | |||||
Main Components | Host | chassis assembly (power device), former stands, after stands, after plate, rod | ||||
Accessories | pressing plate, side mould | |||||
Production Information | Thickness (mm) | Width (mm) | Length (mm) | Quantity (pcs/set) | Area (m2/set) | Raw Material (m2) |
60 | 610 | 2270 | 60 | 83.0 | 4.15 | |
75 | 610 | 2270 | 50 | 69.2 | 4.50 | |
90 | 610 | 2270 | 42 | 58.1 | 4.65 | |
100 | 610 | 2270 | 40 | 55.3 | 4.98 | |
120 | 610 | 2270 | 34 | 47.0 | 5.17 | |
150 | 610 | 2270 | 28 | 38.7 | 5.42 | |
180 | 610 | 2270 | 22 | 30.4 | 5.77 | |
|
3. Advantages of exterior eps sandwich panel production line , lightweight wall panel machine
(1) One-key intelligent operation
(2) Unique Operation Software
(3) Addictives (with patent)
(4) Measuring precisely ensuring each panel is with exactly same materials and ratio
(5) Easy maintenance by demounting the broken piece
(6) Recycling use the eps foam& eco-friendly
(7) Use local resources to reduce your production cost
(8) Professional after-services
4.Parameters for exterior eps sandwich panel production line
Item No. | VJ-II |
Rated current | 2.44A |
Rated power | 1.1 KW |
Voltage | 380V3- |
Working mode | S1 |
Machine Type | 2W-7 |
Capacity | 1.25m3/ hour |
Dimension(L*D*H) | 3200X146X2800 |
Weight(kg) | 2800 |
Stroke speed |
<30 meter/minute |

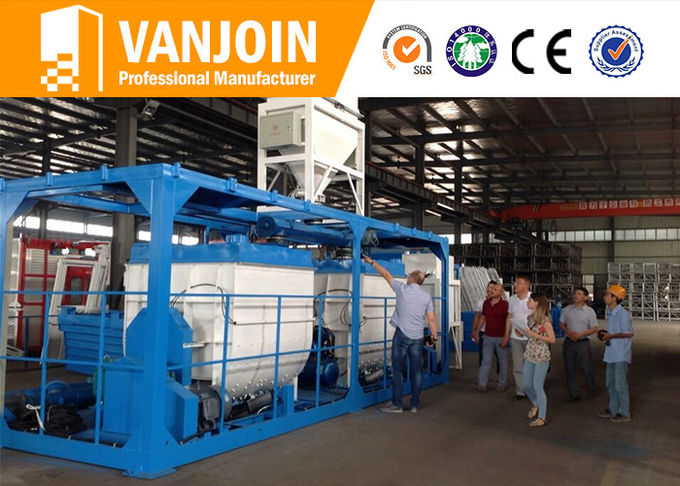

5.Main System of lightweight eps wall panel making machine
