Product Details:
Payment & Shipping Terms:
|
Name: | EPS Sandwich Panel Machine | Automatic: | Full, Semi Automatic Or Manual |
---|---|---|---|
Capacity: | 100,000-1,000,000 Square Meter/year | Panel Types: | EPS / Perlite / Ceramicite Sandwich Panel |
Panel Length: | 2270mm, 2440mm, 2700mm, 3000mm | Panel Width: | 610mm |
Thickness: | 60, 75, 90, 100, 120, 150, 180mm | Application: | Interior Wall, Exterior Wall, Roof Or Floor |
Mould Type: | Vertical Mould Machine | Installation: | Our Engineer Is Available To Install Machines |
Guaranty: | 12 Month | Sevice Time: | More Than 20 Years |
Features Of Panel: | Lightweight, Fireproof, Waterproof, Sound Insulation | Fireproof Of Panel: | 4 Hours Under 1000 Degree |
Lightweight EPS Sandwich Panel Machine for Producing Sandwich Panel
I. Detailed Description of Lightweight EPS Sandwich Panel Machine
Name | Lightweight EPS Sandwich Panel Machine for Producing Sandwich Panel |
Types |
1. Full automation line 2. Semi-automation line 3. Manual Line |
Products | EPS / Perlite / Ceramicite Sandwich Panel |
Specification (sandwich panel) |
Length: 2270mm, 2440mm, 2700mm, 3000mm Width: 610mm Thickness:60mm,75mm, 90mm, 100mm, 120mm, 150mm, 180mm |
Application (sandwich panel) |
Interior wall, exterior wall, roof for house, villa, apartment, school, hotel, office building and so on |
Capacity | 100,000-1,000,000 square meter/year |
Trade terms | EXW, FOB, CNF, CIF |
Payment terms | TT, L/C |
Payment condition |
1. 40% TT deposit in advance, 55% TT balance before delivery, and 5% after installation but before adjusting machines by our engineer. 2. 100% L/C at sight |
Delivery time | 30-45days after getting advanced payment |
Loading port | Wuhan / Shanghai Port |
Package | Standard exported packing |
Our service |
1. Investment cost calculation 2. Capacity calculation 3. Factory design 4. Production line layout design 5. on site engineers for installation and guidance 6. Service life: over 20 years 7. Warranty :1 year 8. Free training |
Your preparation |
1. Raw materials:EPS, sand, cement, water, addictives and ect.(your local materials can also be used) 2. Land (see specifications) 3. Workers (see specifications) |
II. Moulder car, Labors and Land Reuired (Lightweight EPS Sandwich Panel Machine)
Annual Output(m2) | Quantity of Moulding Cars(set) | Quantity of Workers Required | Prodction Area(m2) | Stacking Area(m2) |
100,000 | 5 | 8--13 | 500 | 1000 |
200,000 | 8 | 10--18 | 600 | 2000 |
300,000 | 10 | 12--20 | 700 | 3000 |
400,000 | 11 | 15--23 | 800 | 4000 |
500,000 | 12 | 18--28 | 900 | 5000 |
600,000 | 13 | 22--32 | 1000 | 6000 |
700,000 | 14 | 25--35 | 1100 | 7000 |
800,000 | 15 | 28--38 | 1200 | 8000 |
900,000 | 16 | 32--42 | 1300 | 9000 |
1,000,000 | 17 | 35--46 | 1400 | 10000 |
III. Main Systems of Lightweight EPS Sandwich Panel Machine
1) Foaming System including: Electric / oil / gas Boiler + EPS foaming machine
2) Raw material storage measuring and conveying system: AUTOMATIC weighing and supply
3) Mixing system: two sets double-horizontal-shaft compulsory mixing and discharging separately.
4) Wall panel forming and gating system
1. Railway system
2. Steering system
3. Casting moulding system
5) Automatic Control System: auto feeding; electronic weighing & PLC touch screen One-key Control
IV. Material for producing eps sandwich panel (Lightweight EPS Sandwich Panel Machinee)
Face board | Calcium silicate board. Width must be 608mm, allowed tolerance is ±2mm. |
EPS | Expandable polystyrene granule |
Sand | SiO2≥98% |
Cement | Ordinary portland cement with grade of 42.5 |
Additives | Vanjoin customized additives |
Water | Normal water |
Assistant Material | Wasted machine oil, used to lubricate pressing mould plate, aluminum mould plate |
V. Size of Wall Panels machine can produce (Lightweight EPS Sandwich Panel Machine)
Length | 2270mm, 2440mm, 3000mm |
Width | 610mm |
Thickness |
60mm, 75mm, 90mm, 100mm,120mm, 150mm, 180mm |
VI. Usage and Features of Lightweight EPS Sandwich Wall Panel
Usage:
Our eps sandwich wall panel are mainly used as interior partition wall and exterior wall,
besides, it can also apply to the roof, floor and fence of house and buildings.
Features:
1. Light weight: 1/6 of traditional brick
2. Area-saving: It can save 4.26m² per 100m²(compare with traditional red brick)
3. Waterproof and Damp-proof
4. Fire-proof: passed National fire test, Grade A, 4 hours 1000 centigrade without damage
5. Sound-insulation: 38dB-48dB
6. Best Hanging force, single point load weight: 50kg
7. Anti-seismic and impact resistance: class 7
8. Environmental: not inlude asbestos
9. Fast construction: two workers 75-80m²/day
10. Heat insulation & preservation
11. Strong and durable, 60-70 years life span.
VII. Photos of Lightweight EPS Sandwich Panel Machine

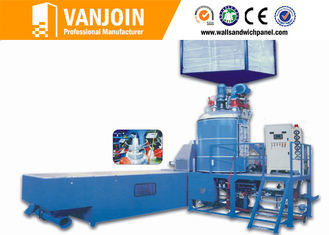

1. EPS Sandwich Panel Foaming Machine
2. EPS Sandwich Panel Mixing Machine
3. Mould Cars and Railway
4. Lightweight EPS Sandwich Panel
