Auto styrofoam concrete sandwich panel making machine / wall panel machine

Large Image : Auto styrofoam concrete sandwich panel making machine / wall panel machine

Product Details:

Place of Origin:	Hubei, China
Brand Name:	VANJOIN
Certification:	CE/BV/ISO9001/ISO14001/
Model Number:	PM-13-4R

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Machinery is carefully packed with wooden pallets for outer packing, components and parts are packed in cartons.
Delivery Time:	30 working days after received your payment
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	20 sets per month

Detailed Product Description

Product Name:	Automatic Lightweight Styrofoam Concrete Wall Panel Making Machine Line	Component:	Storage System, Measuring System, Mixing System, Forming System
Production Capacity:	100,000 - 1,000,000 Sqm Per Year	Operation:	Integrated Electric Control System, PLC
Warranty:	1 Year	Service Time:	20+ Years
Panel Usage:	Roof Panel, Floor Panel, Interior Wall Panel, Exterior Wall Panel	Panel Quality:	Patented Additive, Patented Proportion

Auto styrofoam concrete sandwich panel making machine / wall panel machine

1. Description:

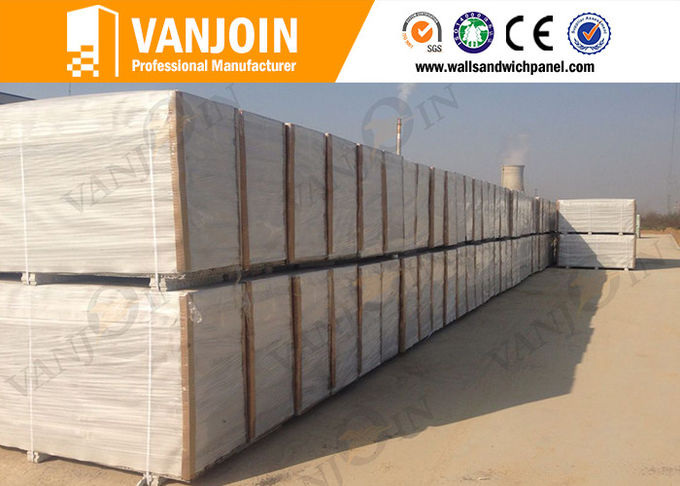

The eps sandwich panels produced by sandwich panel machine, can be widely use for school, hospital, office, prefab house, low rise building, high rise building, villa, prefabricated house, etc.

The full automatic eps sandwich panel machine is operated by integrated electric control system, it's one-key operation, easy maintenance, and high efficiency with capacity from 100,000 square meters to 1,000,000 square meters.

We have experienced and well trained workers and installation teams, professional designers, engineers and technicians, we can provide you life long technical support and service.

2. Technical Parameter and Production Data:

Technical Parameter	Material	Stainless Steel, Anti corrosion, Anti rust
	Powder	45kw per day
	Voltage	380v
	Frequency	50Hz
	Components	Boiler System, Raw Materials Storage/Measuring/Conveying System, Mixing System, Foaming and Gating System
	Automatic Grade	Full Automatic, Semi Automatic, Manual
	Usage	Produce sandwich wall panels
	Machine Capacity	100,000 - 2,000,000 m2 per Year
	Warranty	1 Year
	Service Time	20+ Years

Production Data	Thickness (mm)	Width (mm)	Length (mm)	Production Quantity (pc/set)	Area (㎡/set)	Raw Materials (m³)
	60	610	2270	60	83.0	4.15
	75	610	2270	50	69.2	4.50
	90	610	2270	42	58.1	4.65
	100	610	2270	40	55.3	4.98
	120	610	2270	34	47.0	5.17
	150	610	2270	28	38.7	5.42
	180	610	2270	22	30.4	5.77

3. Vanjoin Automatic Sandwich Wall Panel Machine Competitive Advantage:

※ Produce patented sandwich wall panels with excellent performance;
※ Unique raw material measuring, delivery and mixing system;
※ High-tech support from the talents of specialized research group in famous university;
※ Strict quality control;
※ Experienced and well trained workers and installation team;
※ Professional designer, engineer, technology

Auto styrofoam concrete sandwich panel making machine / wall panel machine

4. Composition:

※ Boiler System;
※ Raw Materials Storage/Measuring/Conveying System;
※ Mixing System;
※ Forming and Gating System

4.3 Raw Materials Storage/Measuring/Conveying System:

※ Automatic Cement Supply System;
※ Automatic Sand Supply System;
※ Automatic Water Supply System;
※ Automatic Foam Supply System;
※ Automatic Additive Supply System.

Auto styrofoam concrete sandwich panel making machine / wall panel machine

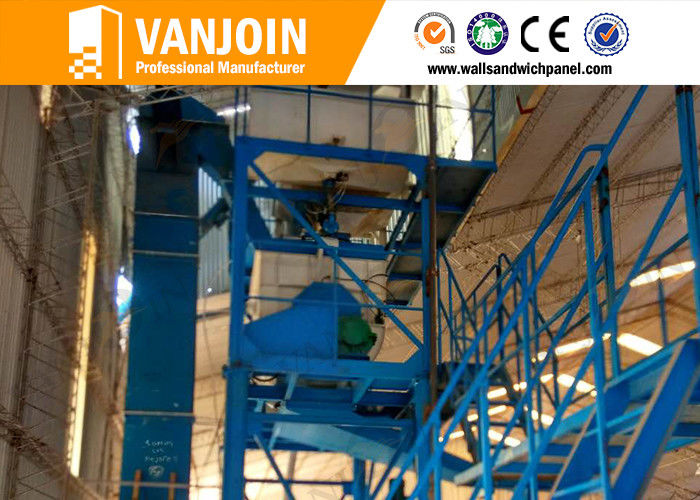

4.4 Mixing System

This concrete mixing plant, through full automatic control system, can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials, and additives, etc.

Mixing time: 180s

Auto styrofoam concrete sandwich panel making machine / wall panel machine

4.5 Forming and Gating System

Vertical Automatic Mould Machinery

Double horizontal shafts compulsory mixing machine is chosen which has features of excellent work reliablity, super mixing quality, high productivity, etc.

Vertical Automatic Mould Technical Parameters:
Name			Main Parameters
Overall Dimensions (Length × Width × Height)			3180 × 1380 × 3480
Weight			2800 KGS
Mobile Power(KW)			2.2
Mobile Speed(m/min)			≤60
Main Components	Host		Chassis assembly(power device), former stands, after stands, after plate, rod
Main Components	Accessories		Press mould, side mould, bottom mould.
Production Information	Thickness (mm)	Width (mm)	Length (mm)	Quantity (pcs/set)	Area (m2/set)	Raw Material (m3)
	60	610	2270	48	66.5	3.32
	75	610	2270	42	58.2	3.78
	90	610	2270	36	49.8	3.99
	100	610	2270	32	44.3	3.99
	120	610	2270	30	41.5	4.57
	150	610	2270	24	33.2	4.65
	180	610	2270	20	27.7	4.71
Remarks	Two transition cars, production line conversion use, one set cheer machine, spray release agent use, pour table, track (the height of the mould cab be customized by customers specific requirements)
