Product Details:
Payment & Shipping Terms:
|
| Name: | Sandwich Wall Panel Machine | Automatic: | Full, Semi Automatic Or Manual |
|---|---|---|---|
| Capacity: | 100,000-1,000,000 Square Meter/year | Panel Types: | EPS / Perlite / Ceramicite Sandwich Panel |
| Panel Length: | 2270mm, 2440mm, 2700mm, 3000mm | Panel Width: | 610mm |
| Thickness: | 60,75, 90, 100, 120, 150, 180mm | Application: | Interior Wall, Exterior Wall, Roof Or Floor |
| Mould Type: | Vertical Mould Machine | Installation: | Our Engineer Is Available To Install Machines |
| Guaranty: | 12 Month | Sevice Time: | More Than 20 Years |
Strong Lightweight EPS Sandwich Wall Panel Machine Easy To Operation

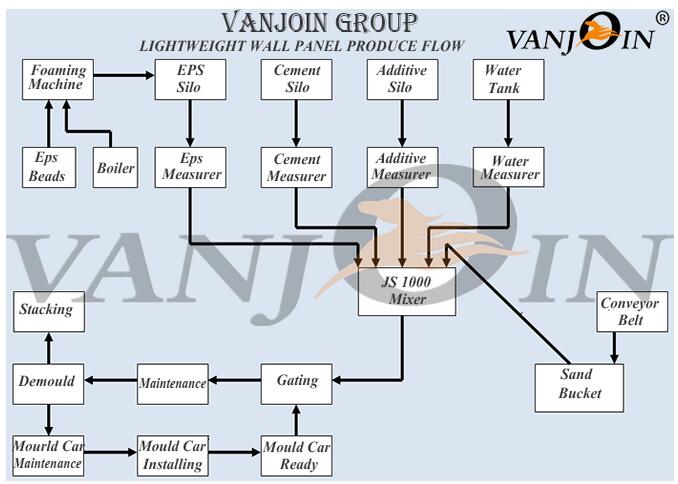

I. Production Procedures of Lightweight EPS Sandwich Wall Panel Machine
II. Specifications of Lightweight EPS Sandwich Wall Panel Machine
| Annual Output(m2) | Quantity of Moulding Cars(set) | Quantity of Workers Required | Prodction Area(m2) | Stacking Area(m2) |
| 100,000 | 5 | 8--13 | 500 | 1000 |
| 200,000 | 8 | 10--18 | 600 | 2000 |
| 300,000 | 10 | 12--20 | 700 | 3000 |
| 400,000 | 11 | 15--23 | 800 | 4000 |
| 500,000 | 12 | 18--28 | 900 | 5000 |
| 600,000 | 13 | 22--32 | 1000 | 6000 |
| 700,000 | 14 | 25--35 | 1100 | 7000 |
| 800,000 | 15 | 28--38 | 1200 | 8000 |
| 900,000 | 16 | 32--42 | 1300 | 9000 |
| 1,000,000 | 17 | 35--46 | 1400 | 10000 |
III. Main Systems of Lightweight EPS Sandwich Wall Panel Machine

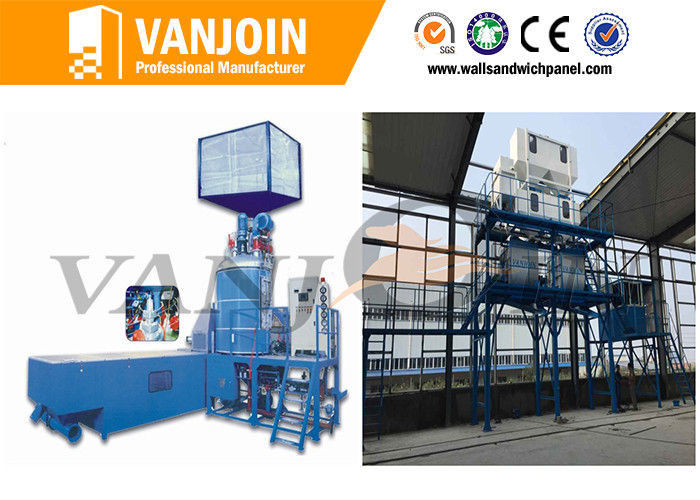

1) Foaming System including: Electric / oil / gas Boiler + EPS foaming machine
2) Raw material storage measuring and conveying system: AUTOMATIC weighing and supply
3) Mixing system: two sets double-horizontal-shaft compulsory mixing and discharging separately.
4) Wall panel forming and gating system
1. Railway system
2. Steering system
3. Casting moulding system
5) Automatic Control System: auto feeding; electronic weighing & PLC touch screen One-key Control
IV. Advantages of Lightweight EPS Sandwich Wall Panel Machine
1. Easy Opration: One-key intelligent operation System; Unique Operation Software
2. Reduce your production cost: you can use local resources (sand, Volcanic rock,Plant seeds)
3. Rich production experience and good after-sale services
We have produced eps sandwich panel for over 10 years with annual capacity 4,000,000m²,
exporting to more than 40 countries. we can solve all production problems you meet.
V. Four Types of Lightweight EPS Sandwich Wall Panel
1. EPS Sandwich Panel
2. Perlite Sandwich Panel
3. Ceramicite Sandwich Panel
4. EPS & Ceramicite Compound Sandwich Panel
VI. Specification of EPS Sandwich Panel
| Length | Width | Thickness | Weight | Application |
|---|---|---|---|---|
| 2270mm | 610mm | 60mm | 45-48kg/m2 | Roof |
| 75mm | 50-53kg/m2 | Interior wall | ||
| 90mm | 55-58kg/m2 | Interior / Exterior wall | ||
| 100mm | 60-65kg/m2 | Interior / Exterior wall | ||
| 120mm | 65-75kg/m2 | Exterior wall | ||
| 150mm | 80-90kg/m2 | Exterior wall | ||
| Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm | ||||
VII. Application of EPS Sandwich Panel
VI. Photos of Lightweight EPS Sandwich Wall Panel Machine

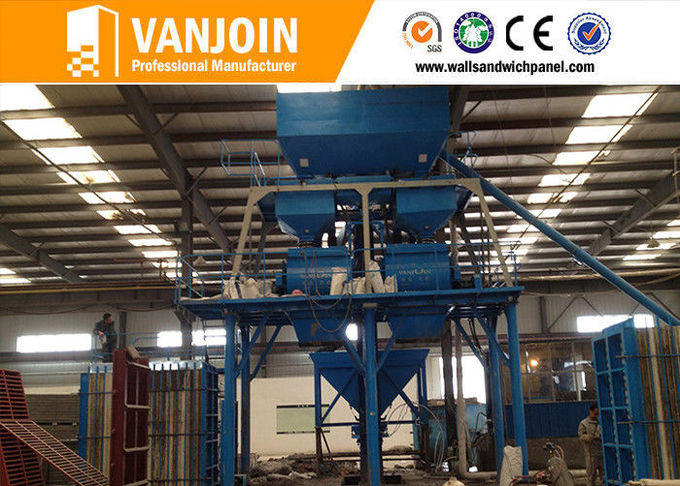

a. Mixing machine (Lightweight EPS Sandwich Wall Panel Machine)

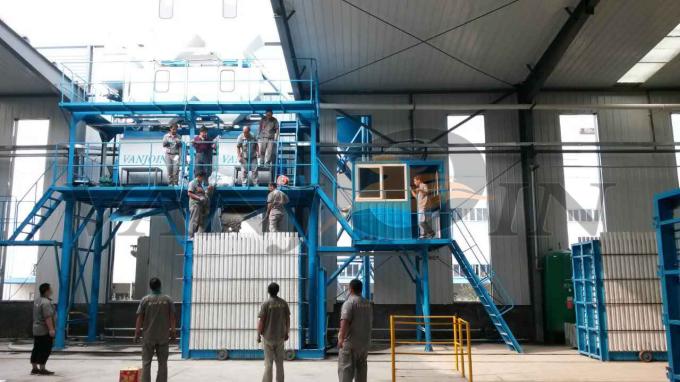

b. Mould Casting (Lightweight EPS Sandwich Wall Panel Machine)

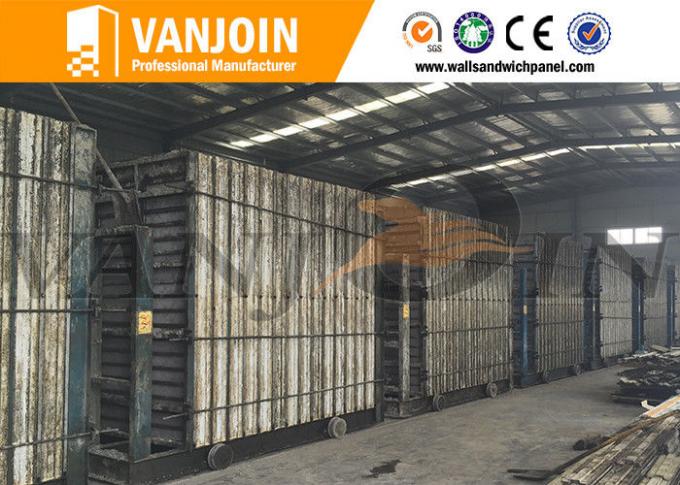

c. Railway Line for Mould Cars (Lightweight EPS Sandwich Wall Panel Machine)

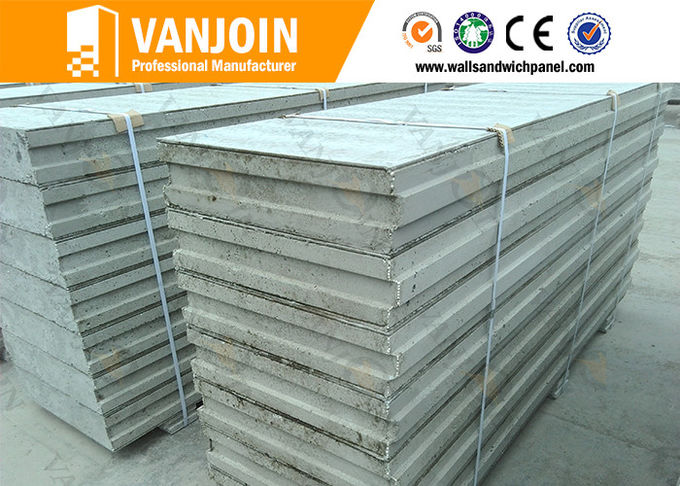

Final Product: Lightweight EPS Sandwich Wall Panel
