Prefab house concrete eps wall sandwich panel machine line 220v or 380v

Large Image : Prefab house concrete eps wall sandwich panel machine line 220v or 380v

Product Details:

Place of Origin:	Hubei, China(Mainland)
Brand Name:	Vanjoin
Certification:	ISO9001, ISO14001
Model Number:	VJB-WPE007JM

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	30-45 days after receiving prepayment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20 sets per month

Detailed Product Description

Product Name:	Sandwich Panel Production Line	Type:	Semi Automatic,Full Automatic
Advantage:	High Output, Easy Maintenance, Long-term Professional Services	Life Time:	More Than 20 Years
Warranty:	1 Year	Advantages:	Automatic And High Efficiency

Prefab house concrete eps wall sandwich panel machine line 220v or 380v

1. Three Kinds of new concrete eps wall panel making machine

(1) full automation line

(2) Semi-automation line

(3) Economic level ( whole by man labor )

2. Specification of new concrete eps wall panel making machine

VJ-HT2270
Name			Main Parameters
Overall Dimensions(LWH)			318013803480mm
Weight			2800KG
Mobie Power(KW)			2.2
Mobie Speed(m/min)			≤60
Main Components	Host		chassis assembly (power device), former stands, after stands, after plate, rod
Main Components	Accessories		pressing plate, side mould
Production Information	Thickness (mm)	Width (mm)	Length (mm)	Quantity (pcs/set)	Area (m2/set)	Raw Material (m2)
	60	610	2270	60	83.0	4.15
	75	610	2270	50	69.2	4.50
	90	610	2270	42	58.1	4.65
	100	610	2270	40	55.3	4.98
	120	610	2270	34	47.0	5.17
	150	610	2270	28	38.7	5.42
	180	610	2270	22	30.4	5.77

3. Advantages of new concrete eps wall panel making machine

(1) One-key intelligent operation

(2) Unique Operation Software

(3) Addictives (with patent)

(4) Measuring precisely ensuring each panel is with exactly same materials and ratio

(5) Easy maintenance by demounting the broken piece

(6) Recycling use the eps foam& eco-friendly

(7) Use local resources to reduce your production cost

(8) Professional after-services

4.Parameters for new concrete eps wall panel making machine

Item No.	VJ-II
Rated current	2.44A
Rated power	1.1 KW
Voltage	380V3-
Working mode	S1
Machine Type	2W-7
Capacity	1.25m3/ hour
Dimension(LDH)	3200X146X2800
Weight(kg)	2800
Stroke speed	<30 meter/minute

5.Main System of new concrete eps wall panel making machine

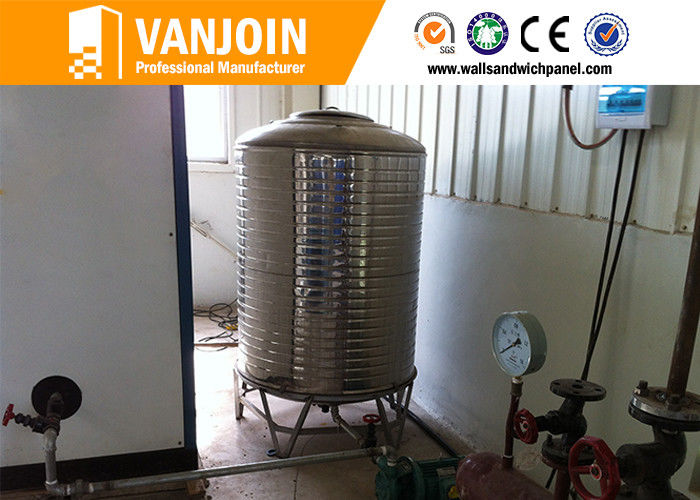

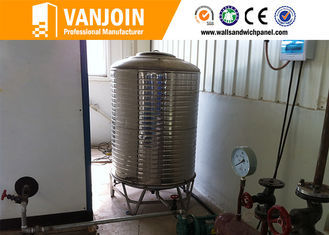

EPS foaming system includes boiler, eps foaming machine, etc.
Raw materials storage/measuring/conveying system includes raw materials silo, storage& weighing &measuring hopper, pump, etc.
Mixing system includes mixing machine, electric control system, etc.

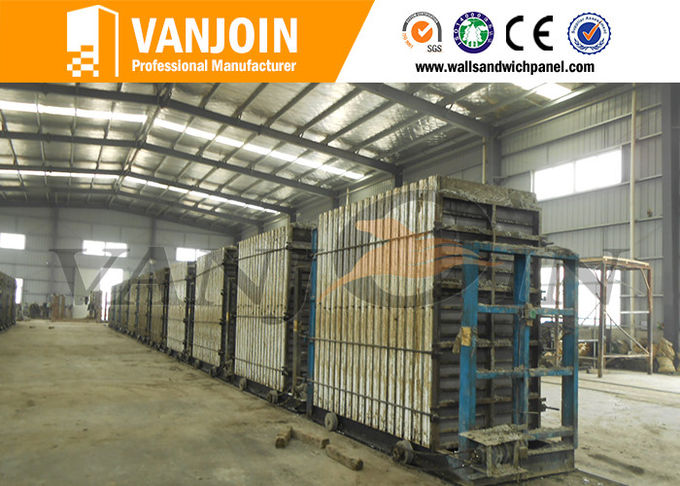

Forming and gating systes includes mould machine ,vibration machines, etc.
