Product Details:
Payment & Shipping Terms:
|
| Automation Level: | Full Automatic | Minimum Capacity: | 100,000m2 |
|---|---|---|---|
| Maximum Capacity: | 1,000,000m2 | Application: | Produce Sandwich Wall Panels |
| Service Life: | 20 Years | Warranty: | 1 Year |
| Mould Type: | Vertical | Mixer: | JS750, JS1000 |
| EPS Foaming Machine: | Automatic |

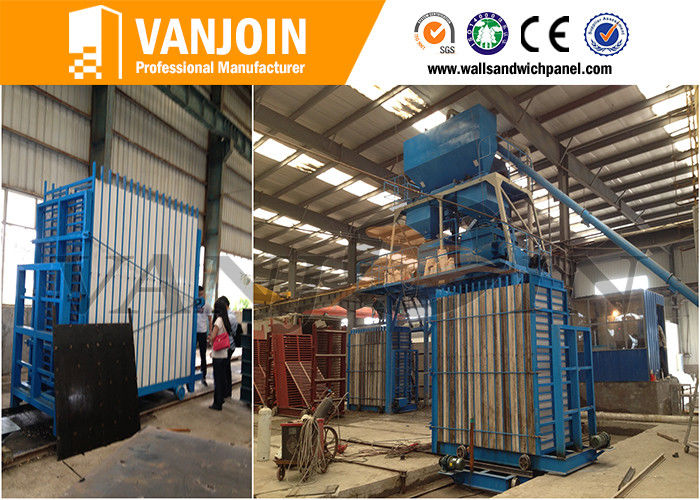

Full Automatic Eps Sandwich Panel Machine Lightweight Wall Panel Production Line
Brief Introduction
Vanjoin sandwich panel production line can produce different kinds of sandwich panels.
EPS cement sandwich panel
Ceramisite sandwich panel
Perlite sandwich panel
EPS & ceramisite sandwich panel
Main Features of EPS Foaming Machine
1. Automatic filling, electronic weighing, temperature control and automatic production
2. Automatic screw conveyor and electronic weighing system
3. High heating efficiency and saves steam
4. Automatic fluidized bed dryer, including drying, sieving,depluming and conveying.
5. Stable quality, long service life and low maintenance cost.
6. Can realize primary and second expansion.
Technical Data of EPS Foaming Machine
| Item | Unit | PSF-Q1400JR |
| Diameter | mm | 1400 |
| Shell height | mm | 2000 |
| Volume | m3 | 3 |
| Useable volume | m3 | 2.8 |
| Steam pressure | mpa | 0.6-0.8 |
| Compressed air pressure | mpa | 0.6-0.8 |
| Density | kg/m3 | 12-40 |
| Throughput | kg/h | 150-600 |
| Connected load | kw | 14.87 |
| Overall dimension | mm | 4500*2150*2950 |
| Machine weight | kg | 2500 |
Advantages of Mixing System
1. Mixer is JS750 or JS1000
2. Automatic cement supply system
3. Automatic sand supply system
4. Automatic water supply system
5. Automatic additives supply system
6. Automatic control system
Technical Parameters of Vertical Mould Car
VJ-HT2270 | ||||||
Name | Main Parameters | |||||
Overall Dimensions(L*W*H) | 3180*1380*3480mm | |||||
Weight | 2800KG | |||||
Mobie Power(KW) | 2.2 | |||||
Mobie Speed(m/min) | ≤60 | |||||
Main Components | Host | chassis assembly (power device), former stands, after stands, after plate, rod | ||||
Accessories | pressing plate, side mould | |||||
Production Information | Thickness (mm) | Width (mm) | Length (mm) | Quantity (pcs/set) | Area (m2/set) | Raw Material (m2) |
60 | 610 | 2270 | 60 | 83.0 | 4.15 | |
75 | 610 | 227 | 50 | 69.2 | 4.50 | |
90 | 610 | 02270 | 42 | 58.1 | 4.65 | |
100 | 610 | 2270 | 40 | 55.3 | 4.98 | |
120 | 610 | 2270 | 34 | 47.0 | 5.17 | |
150 | 610 | 2270 | 28 | 38.7 | 5.42 | |
180 | 610 | 2270 | 22 | 30.4 | 5.77 | |
Remarks | Two transition car, production line conversion use, one set cheer machine, spray release agent use, pour table, track. | |||||
Advantages
1. Service life is over 20 years
2. Warranty is 1 year
3. Full automatic production line system
4. Unique raw materials measuring, conveying and mixing system
5. High production output and low cost input
6. Less workers and less labor cost
7. Environmental protection
8. Long-term professional service and free training
9. New products and new technology sharing
Services
1. Investment cost calculation
2. Factory design
3. Production line layout design
4. Provide engineers for installation and guidance on-site
About Us
10 years production and trading experience.
40,000m2 factory area, 60000m2 stacking area.
Top 1 manufacturer in Middle of China
2,000,000m2 annual production capacity
Over 400 containers export volum per month
More than 50 countries market area
