Product Details:
Payment & Shipping Terms:
|
| Specification(L*W*T): | 2270*610*60/75/90/100/120/150mm | Surface Pane: | Alicium Silicon Board |
|---|---|---|---|
| Core Material: | EPS, Cement, Sand, Water, Additive, Etc | Product Name: | Foam Cement Eps Composite Sandwich Wall Panels For House Interior Exterior Wall |
| Advantages: | Waterproof,Sound Insulation, Heat Insulation Panel | Fireproof: | Under 1000 Degree For 4 Hours Without Damage To The Wall |
| Service Life: | 60-70 Years | Anti-earthquake: | Class 8 |
| Soundproof Performance: | 46dB | Advantages 2: | Lightweight , Eco-friendly |
100mm Building Precast Concrete Wall Panels , Internal External precast wall panels
Composition:
Core Materials: Cement, EPS, and Fly Ash or Sand core
Surface Materials: Calcium Silicon Board , Mgo Board , Fiber Cement Board etc
Specifications of Low Cost Anti-Sound Composite Panel Board
|
Name |
Size(L*W*T)mm |
Weight (kg/m2) |
Packing (pcs/m2 20’GP) |
Application |
|
EPS Cement Sandwich Wall Panel
|
2270x610x60 |
45-48 |
315 pcs /436 m2 |
Roof, interior wall |
|
2270x610x75 |
50-53 |
252pcs / 349 m2 |
Interior wall |
|
|
2270x610x90 |
55-58 |
207pcs / 287 m2 |
Interior/exterior wall |
|
|
2270x610x100 |
60-65 |
189pcs / 262 m2 |
Interior/exterior wall |
|
|
2270x610x120 |
65-75 |
153pcs / 212 m2 |
Exterior wall |
|
|
2270x610x150 |
80-90 |
126pcs / 175 m2 |
Exterior wall |
Characteristic:
1). Fast construction (25m2/day/person)
2). Windproof (75m/s)
3). Sound insulation(44dB)
4). Anti-impact, Anti-seismic (class: 8-13)
5). Waterproof, Fireproof (under 1000 degree centigrade for 240 minutes)
6). Light weight, Energy-saving
7). Eco-friendly green material
8). Save area, Easy installation
9). Heat insulation & preservation
10). Strong and durable, 60-70 years life span

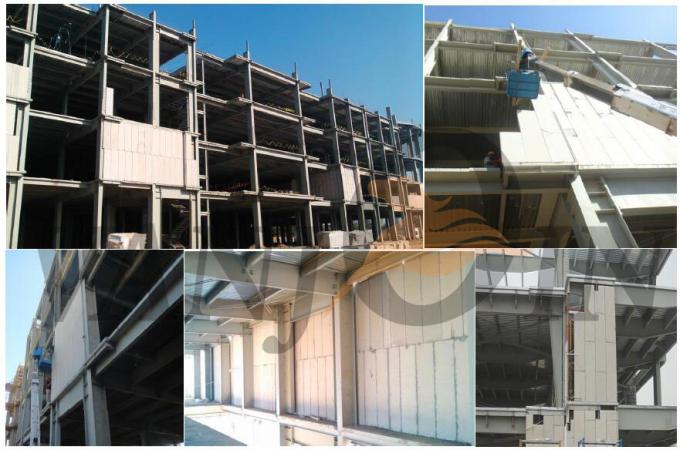

Application of EPS Wall Panel:
1) Floor System
Vanjoin light weight compound sandwich panel can be innovatively used as floor board. This system
has the
outstanding advantages such as high load-bearing capacity, anti-static electricity, friction resistance,
high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation,
no split, etc.
2) Roof System
This system not only solves the problem of roof leakage, but also has the advantages such as heat
insulation,
neat joint surface, high temperature resistance, etc.

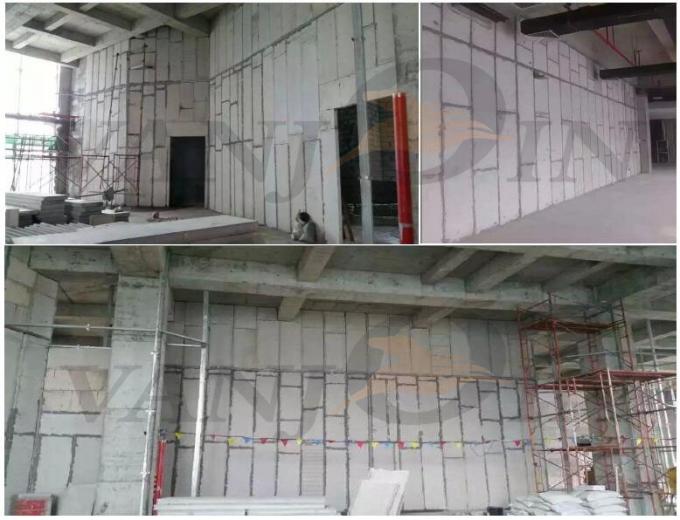

3) Interior Partition System
With EXCELLENT fireproof, best hanging force, sound insulation, heat insulation, waterproof, easy
installation
and the like characteristics.
4) Interior & Exterior Wall System
