Product Name: | EPS Cement Sandwich Panel | Specification(L*W*T): | 2270*610*60/75/90/100/120/150mm |
---|---|---|---|
Raw Materials: | Eps, Sand, Cement, Fly Ash, Water, Additive, Etc | Non-combustibility: | Grade A, BS EN ISO1182:2002 |
Fireproof: | Under 1000 Degree For 4 Hours | Sound Insulation: | 40~56 DB |
Construction: | 75-80 SQM Per Day | Service Life: | 70 Years |
100mm Lightweight EPS foam concrete wall panels , Exterior / Interior insulated building panels

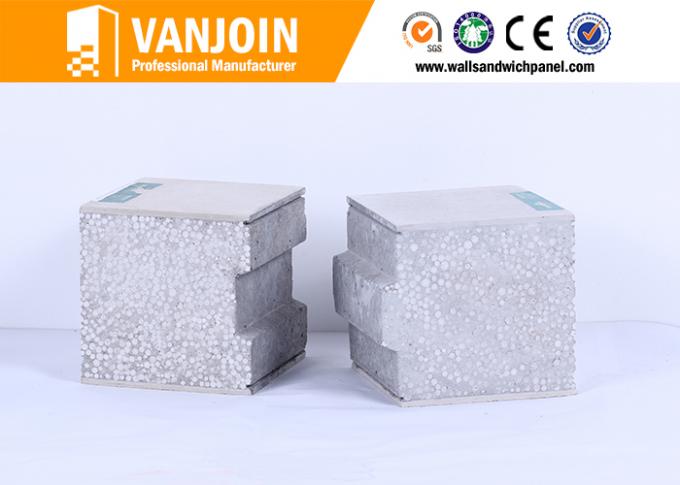

1. Composition:
Double sides surface boards, (calcium silicate boards);
Sandwich core material:
Eps beads, (expandable polystyrene foam);
Ceramicite, ceramsite, ceramic
Cement;
Sand;
Vanjoin patented additive
2.Specification
Name |
Specification (mm) |
Weight (kg/m2) |
Packing (pcs and m2 per 20' FCL) |
VJ Light Weight Compound Sandwich Panel |
2270x610x60 |
45~48 |
315pcs, 436m2 |
2270x610x75 |
50~53 |
252pcs, 349m2 |
|
2270x610x90 |
55~58 |
207pcs, 287m2 |
|
2270x610x100 |
60~65 |
189pcs, 262m2 |
|
2270x610x120 |
65~75 |
153pcs, 212m2 |
|
2270x610x150 |
80~90 |
126pcs, 175m2 |
3. Advantage:
4. Technology Index:
|
Item |
National Standards |
Testing Indexes |
||||
|
Thickness |
60mm |
90mm |
120mm |
60mm |
90mm |
120mm |
1 |
Anti-impact Capacity/times |
≥5 |
≥5 |
≥5 |
≥8 |
≥10 |
≥15 |
2 |
Anti-bending damage load/times over deadweight |
≥1.5 |
≥1.5 |
≥1.5 |
≥3 |
≥4 |
≥5 |
3 |
Compressive strength /Mpa |
≥3.5 |
≥3.5 |
≥3.5 |
≥5 |
≥5 |
≥5 |
4 |
Softening coefficient |
≥0.80 |
≥0.80 |
≥0.80 |
≥1 |
≥1 |
≥1 |
5 |
Surface density g/m2 |
≤70 |
≤90 |
≤110 |
≤55 |
≤70 |
≤85 |
6 |
Moisture rate a/% |
≤12/10/8 |
≤10/9/7 |
||||
7 |
Drying shrinkage value /mm/m |
≤0.6 |
≤0.6 |
≤0.6 |
≤0.45 |
≤.0.5 |
≤0.5 |
8 |
Hanging Force/N |
≥1000 |
≥1000 |
≥1000 |
≥1200 |
≥1300 |
≥1500 |
9 |
Sound insulation capacity in the air /Db |
≥30 |
≥35 |
≥40 |
≥35 |
≥40 |
≥45 |
10 |
Fire proof limit /h |
≥1 |
≥1 |
≥1 |
≥2.5 |
≥3 |
≥4 |
11 |
Heat transfer coefficient w/m2.k |
|
|
≤1.0 |
|
|
≤1.0 |
12 |
Radioactivity Limit |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
13 |
IRa (Inner radiation indexes) |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
14 |
Ir (Outer radiation indexes) |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
≤1 |
5.Application:

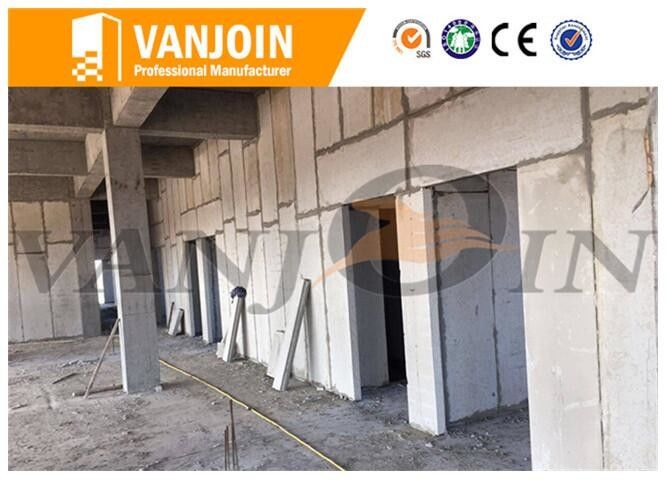

For interior and exterior wall partition on steel or concrete structure building, new construction or renovations. It can replace construction materials such as block, wire spatial grid structure perlite board, perlite porous board and etc. It can widely be applied to wall materials of various high and low buildings such as bank, office building, hospital, school, hotel, mall, amusement, old house reconstruction, residence and workshop.

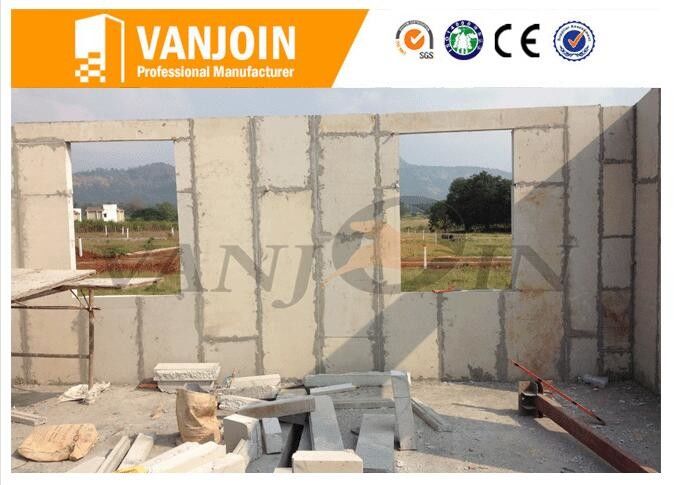

a. Lightweight Precast Concrete Panels for Exterior Wall

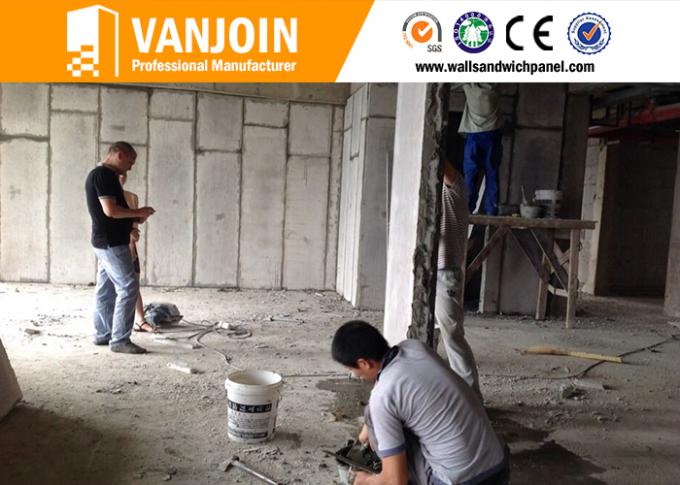

b. Lightweight Precast Concrete Panels for Interior Wall

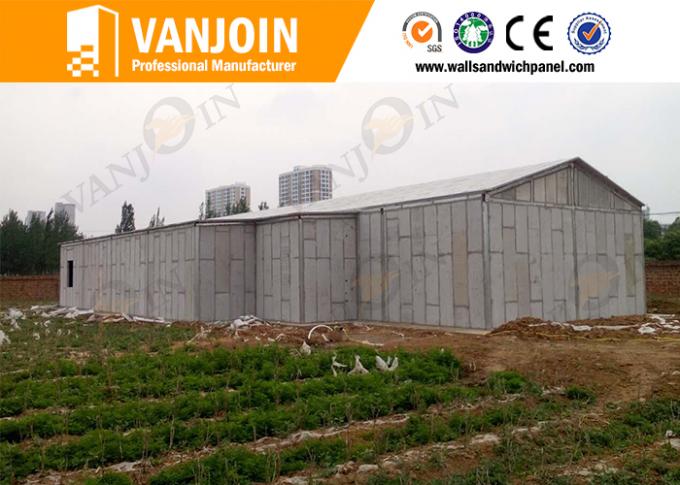

c. Lightweight Precast Concrete Panels for Exterior Wall and Roof
6.Supplied to:
Iran, Russia, Australia, India, Dubai, South Africa and so on.
7. FAQ of EPS Cement Panel
1. What's the annual capacity of lightweight precast concrete panels?

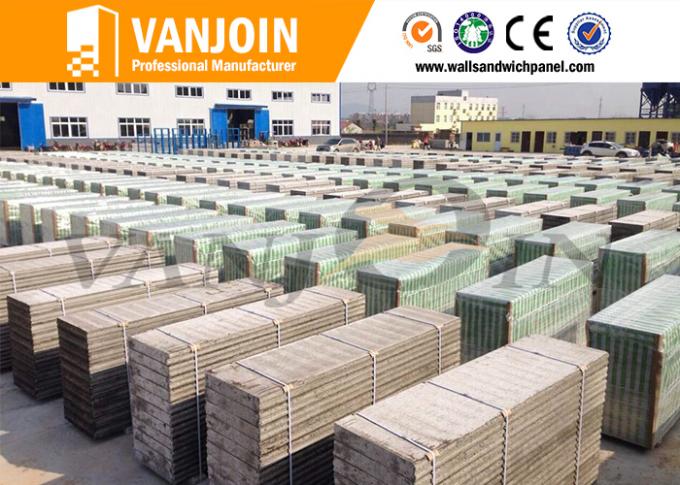

Our eps sandwich panel with annual production capacity of 6,000,000m2, ranking TOP 2 in China.
2 . Main market of Vanjoin lightweight precast concrete panels?
Main market : Asia, South Amercia, Africa, South East Asia, Middle East.
3. Certificate of Vanjoin lightweight precast concrete panels
We get CE, ISO9001, ISO1004, BV, , Patent certificates. We also passed the fireproof, Sound
insulation and other performance test by the Philippines Science and Technology Department.
