Product Details:
Payment & Shipping Terms:
|
| Name: | Automatic Precast Concrete Panel Machine | Automatic: | Full, Semi Automatic Or Manual |
|---|---|---|---|
| Capacity: | 100,000-1,000,000 Square Meter/year | Panel Types: | EPS / Perlite / Ceramicite Sandwich Panel |
| Panel Length: | 2270mm, 2440mm, 2700mm, 3000mm | Panel Width: | 610mm |
| Thickness: | 60, 75, 90, 100, 120, 150, 180mm | Application: | Interior Wall, Exterior Wall, Roof Or Floor |
| Mould Type: | Vertical Mould Machine | Installation: | Our Engineer Is Available To Install Machines |
| Guaranty: | 12 Month | Sevice Time: | More Than 20 Years |
| Features Of Panel: | Lightweight, Fireproof, Waterproof, Sound Insulation | Fireproof Of Panel: | 4 Hours Under 1000 Degree |
Automatic Precast Concrete Wall Panel Machine , Fireproof Sandwich Panel Machine Line

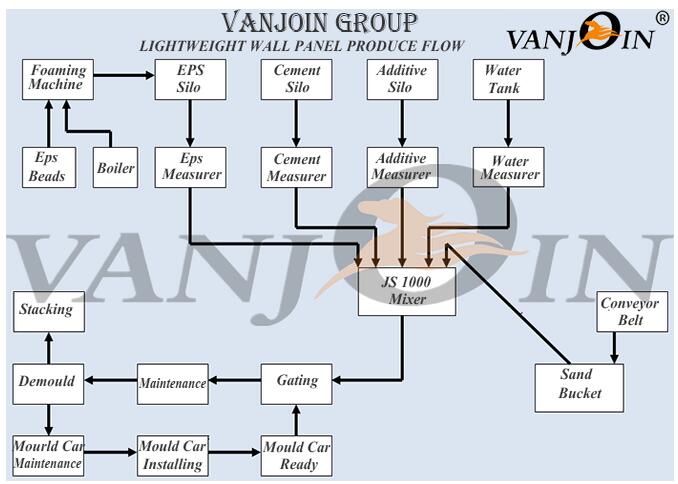

II. Main Systems of Automatic Precast Concrete Wall Panel Machine

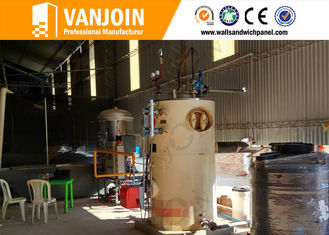

1) Foaming System including: Electric / oil / gas Boiler + EPS foaming machine
2) Raw material storage measuring and conveying system: AUTOMATIC weighing and supply
3) Mixing system: two sets double-horizontal-shaft compulsory mixing and discharging separately.
4) Wall panel forming and gating system
1. Railway system
2. Steering system
3. Casting moulding system
5) Automatic Control System: auto feeding; electronic weighing & PLC touch screen One-key Control
III. Specifications of Automatic Precast Concrete Wall Panel Machine
| Annual Output(m2) | Quantity of Moulding Cars(set) | Quantity of Workers Required | Prodction Area(m2) | Stacking Area(m2) |
| 100,000 | 5 | 8--13 | 500 | 1000 |
| 200,000 | 8 | 10--18 | 600 | 2000 |
| 300,000 | 10 | 12--20 | 700 | 3000 |
| 400,000 | 11 | 15--23 | 800 | 4000 |
| 500,000 | 12 | 18--28 | 900 | 5000 |
| 600,000 | 13 | 22--32 | 1000 | 6000 |
| 700,000 | 14 | 25--35 | 1100 | 7000 |
| 800,000 | 15 | 28--38 | 1200 | 8000 |
| 900,000 | 16 | 32--42 | 1300 | 9000 |
| 1,000,000 | 17 | 35--46 | 1400 | 10000 |
IV. Raw Material of sandwich panel (Automatic Precast Concrete Wall Panel Machine)
| Face board | Calcium silicate board. Width must be 608mm, allowed tolerance is ±2mm. |
| EPS | Expandable polystyrene granule |
| Sand | SiO2≥98% |
| Cement | Ordinary portland cement with grade of 42.5 |
| Additives | Vanjoin customized additives |
| Water | Normal water |
| Assistant Material | Wasted machine oil, used to lubricate pressing mould plate, aluminum mould plate |
V. Size of EPS Sandwich Panels (Automatic Precast Concrete Wall Panel Machine)
| Length | 2270mm, 2440mm, 3000mm |
| Width | 610mm |
| Thickness |
60mm, 75mm, 90mm, 100mm,120mm, 150mm, 180mm |
VI. Usage and Features of Sandwich Panels (Automatic Precast Concrete Wall Panel Machine)
Our eps sandwich wall panel are mainly used as interior partition wall and exterior wall,
besides, it can also apply to the roof, floor and fence of house and buildings.
VII. Photos of Precast EPS Sandwich Panel Machine Production Line

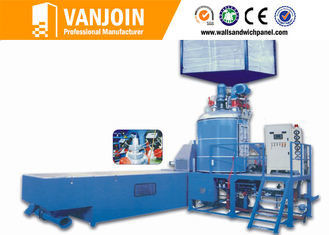

1. Foaming Machine (Automatic Precast Concrete Wall Panel Machine)

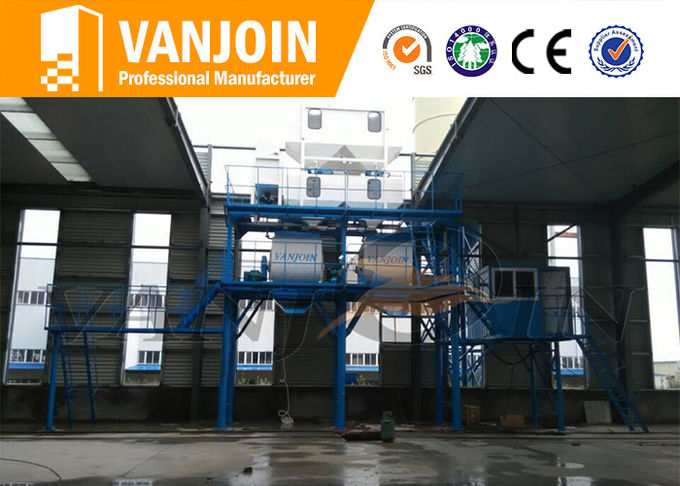

2. Mixing Machine (Automatic Precast Concrete Panel Machine)

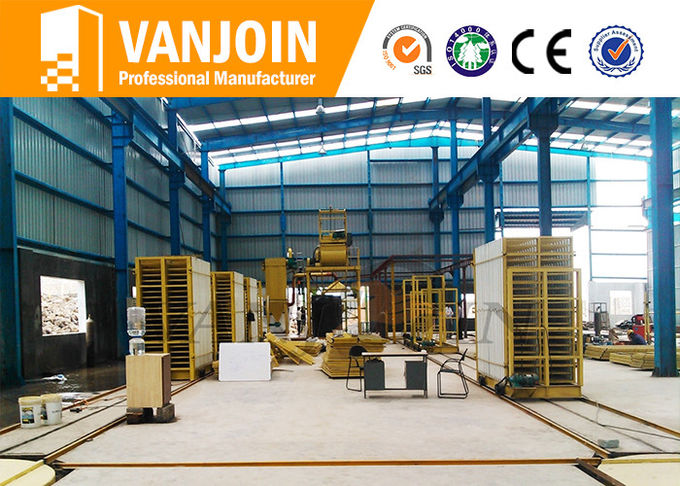

3. Mould Cars and Railway (Automatic Precast Concrete Wall Panel Machine)

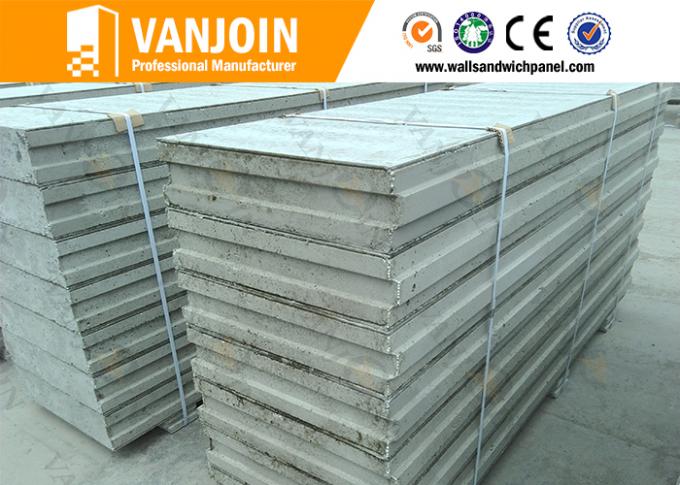

4. EPS Sandwich Wall Panels (Automatic Precast Concrete Wall Panel Machine)
