Product Details:
Payment & Shipping Terms:
|
| Features: | Soundproof, Fireproof, Waterproof | Surface Board: | 5mm Calcium Silicate Board |
|---|---|---|---|
| Core Materials: | Cement, Sand, EPS Foam | Minimum Thickness: | 60mm |
| Maximum Thickness: | 150mm | Fireproof: | 4 Hours |
| Anti-earthquake Degree: | 8-9 Degree | Heat Insulation: | 5 Degree Difference Inside And Outside Of House |
| Single Point Hanging Force: | 50kg |
Lightweight Quick heat insulation sandwich panel Construction Prefab House
| Type | EPS Cement Sandwich Panel |
| Composition |
1. Face boards: calcium silicate board 5mm thickness 2. Core materials: eps foam, cement, sand, additives |
| Standard Size |
Length 2270mm Width 610mm, Thickness: 60mm,75mm,90mm,100mm,120mm,150mm |
| Application | Exterior and interior wall, floor and roof for various houses and buildings |
| Main Structure of House | Concrete or steel structure |
| Supply ability | 2,000,000m2 per year |
| Delivery time | Within 7 days after receiving prepayment. |
| Payment terms | T/T, L/C |
| Packing Details | 1. Standard exporting packing, good pallet+corner protective paper+packing belt+plastic thin film 3. Packing size: 2270*610*1000mm 4.Loading: 18 pallets per 20' container |
| Samples | Free samples are available |
| Certificates | CE,ISO,,BV, with test reports and patents |
1. Raw Materials
Core material: EPS foam, cement, sand, water, addictives.
Surface board: calcium silicon board for 5mm thickness, both sides
2. Specifications
|
Product Name |
Specification (mm) |
Weight (kg/m2) |
Packing (pcs/㎡ per 20GP) |
Application |
|
Vanjoin light weight energy-saving eps cement sandwich panel |
2270x610x60 | 45~48 | 315pcs/436㎡ | Roof |
| 2270x610x75 | 50~53 | 252pcs/349㎡ | Interior wall | |
| 2270x610x90 | 55~58 | 207pcs/287㎡ | Interior/Exterior wall | |
| 2210x610x100 | 60~65 | 189pcs/262㎡ | Interior/Exterior wall | |
| 2210x610x120 | 65~75 | 153pcs/212㎡ | Exterior wall | |
| 2210x610x150 | 80~90 | 126pcs/175㎡ | Exterior wall | |
| 2210x610x180 | 95~105 | 99pcs/138㎡ | Exterior wall | |
| Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm | ||||
3. Outstanding Features
1. Lightweight: 1/6 of traditional brick
2. Area-saving: It can save 4.26m² per 100m²(compare with traditional red brick)
3. Waterproof and Damp-proof
4. Fire-proof: passed National fire test, Grade A, 4 hours 1000 centigrade without damage
5. Sound-insulation: 38dB-48dB
6. Best Hanging force, single point load weight: 50kg
7. Anti-seismic and impact resistance: class 7
8. Environmental: 100% not abestos
9. Fast construction and easy decoration: 75-80m²/day
4. Application
Vanjoin Wall Panels are widely used for interior partition wall, exterior wall,
floor, roof and fence for low houses and high - rise buildings.
1). What's the MOQ of eps cement sandwich panel?
MOQ is 2*20ft container
2). What's the delivery time of eps cement sandwich panel ?
Within 7-15 days after geting the advance payment.
3). What's the annual capacity of eps cement sandwich panel?
Our eps sandwich panel with annual production capacity of 2,000,000m2, ranking TOP 2 in China.
4). Main market of Vanjoin eps cement sandwich panel?
Main market : South East Asia, Middle East,South Amercia, Africa,
5). Can I get free l sample of eps cement sandwich panel?
Yes, you can get free samples within 3-5 days and you only need to pay the courier freight.
6). Certificate of Vanjoin eps cement sandwich panel
We get CE, ISO9001, ISO1004, BV, , Patent certificates. We also passed the fireproof, Sound
insulation and other test reports
Vanjoin Company Photos

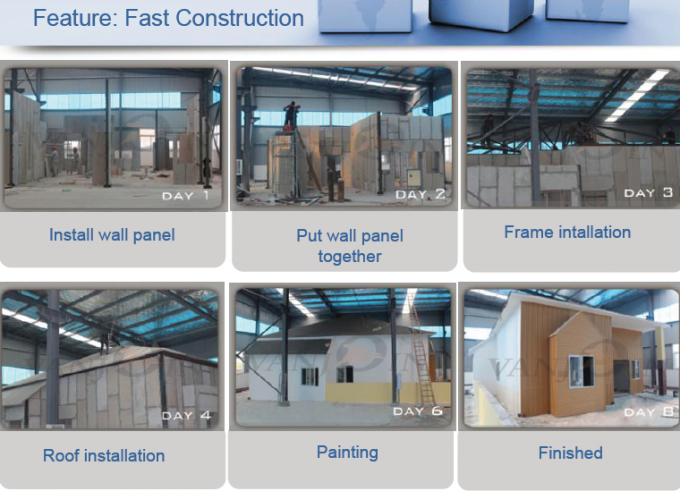

Outstanding Features : Fast Construction

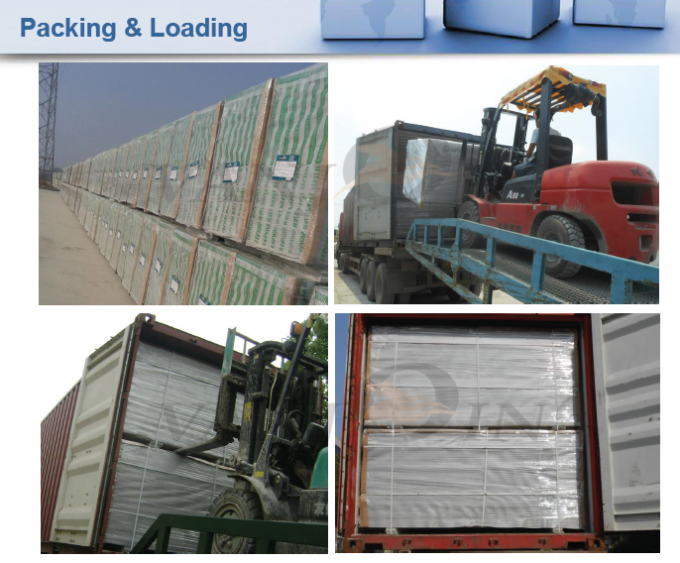

Packing and Loading of Vanjoin Wall Panels
