Product Details:
Payment & Shipping Terms:
|
Name: | Precast Concrete Wall Panels | Application: | Interior And Exterior Wall, Roof And Floor |
---|---|---|---|
Thickness: | 60, 75, 90, 100, 120, 150mm | Sound Insulation: | 38dB-46dB |
Non-combustibility: | Grade A, BS EN ISO1182:2002 | Waterproof: | Good |
Light Weight: | 1/6 Of Traditional Brick | Fireproof: | 4 Hours FRP |
Anti-seismic: | 7-8 Class | Heat Insulated: | Good |
Acoustic Precast Concrete Wall Panels , Foam Composite Insulated Panels
Vanjoin lightweight compound EPS sandwich panels is a kind of energy saving light weight compound board.
It can replace construction materials like red brick, clay solid brick, air brick, color-coated steel sandwich wall board, gypsum block, wire spatial grid structure perlite board and perlite porous board.
I. Composition of Precast Concrete Wall Panels
EPS Sandwich Wall Panel take 5mm Calcium Silicon Board as surface panel, with EPS / ceramsite / perlite, Cement, Sand or fly ash as filler.
II. Application of Precast Concrete Wall Panels
Usage of sandwich wall panel:
III. Specification of Precast Concrete Wall Panels
Length | Width | Thickness | Application |
2270mm | 610mm | 60mm | Roof |
75mm | Interior wall | ||
90mm | Interior / Exterior wall | ||
100mm | Interior / Exterior wall | ||
120mm | Exterior wall | ||
150mm | Exterior wall |
VI. Main Features of Precast Concrete Wall Panels
1. Lightweight | 1 person can carry panel easily, 1/6 of traditional brick |
2. Eco-friendly | 100% non-asbestos |
3. Fast Construction | 3 workers can install 60-80m2 per day |
4. Durable and Long Lifespan | 60-70 years |
5. Sound Insulation | 38-46 dB |
6. Windproof | 65m/s |
7. Fireproof | 4 hours under 1000 degree fire |
8. Anti-earthquake | Grade 8-9 |
9. Best hanging force | Single point is 50kg;Embedded hanging force 150kg |
10. Weight capacity | 650KG / square meter |
11.Space saving | Save 4.26m2 per 100 m2 area |
12.Anti-seimisic / Earthquake | Class 7-8 |
13. Easy decoration | Convenient for pipeline embeded |
V. Packing Details of Precast Concrete Wall Panels
Packing Details | 1. Free packing | with normal pallet and packing belt | |
2. Standard exporting packing | wrapped with plastic thin film,wedge protect & good pallet | ||
3. Packing size: | 1500-3000*610*1000mm | ||
4. Loading | 18 pallets per 20' container |
VI. Photos of Precast Concrete Wall Panels

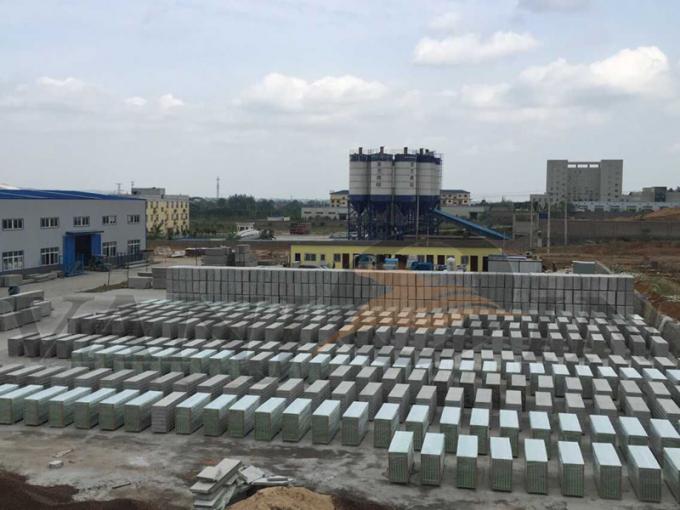

(1) Vanjoin Precast Concrete Wall Panels Factory
(2) Vanjoin Precast Concrete Wall Panels for Interior Wall
(3) Vanjoin Precast Concrete Wall Panels for Exterior Wall and Roof

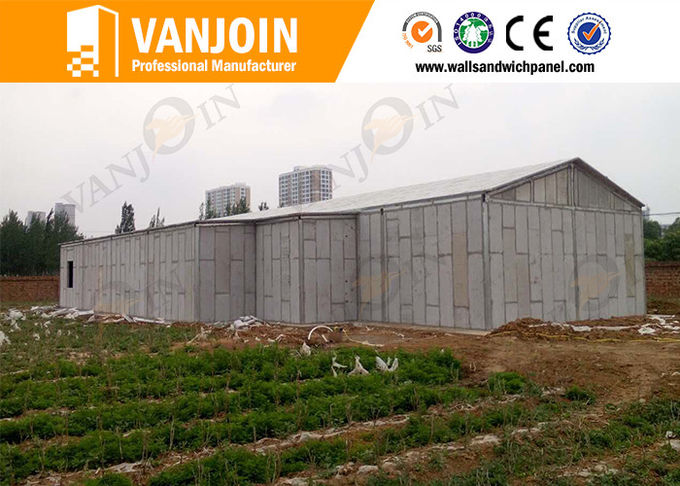

(4) Vanjoin Precast Concrete Wall Panels for House
(Used as interior wall, exterior wall and fence)
