Product Details:
Payment & Shipping Terms:
|
| Raw Material: | EPS, Sand/fly Ash, Cement, Additives | Specification(L*W*T): | 2270*610*60/75/90/100/120/150mm |
|---|---|---|---|
| Safety: | 100% Non-asbestos, Green, Eco-friendly | Raw Material: | Sand,cement,fly Ash,additive |
| Fireproof: | 240min (1000 Degree ) | Heat Resistance: | 80 C |
| Anchorage Load: | 50kg | Useful Life: | 70years |
EPS Soundproof Precast Concrete Wall Panels , Partition lightweight composite panels
1. Application
|
Vanjoin Wall Panel can replace many construction materials |
Replacing such as red brick, clay solid brick, air brick; |
|
Apply to various high and low buildings such as bank, office building, hospital, school, hotel, supermarket, amusement hall, active barrack, old houses reconstruction, residence, and workshop, etc. |
|
| Application | Exterior & Interior wall system, Roof system, Floor system |
2. Description:
Double sides surface boards, (calcium silicate boards);
Sandwich core material:
Eps beads, (expandable polystyrene foam);
Cement;
Sand;
Vanjoin patented additive
3. Panel Specification:
|
Name |
Size(L*W*T) |
Weight(KG) |
Packing(pcs/㎡ per 20") |
|
VJ light weight compound |
2270*610*60 |
45-48 |
315 pcs / 436 ㎡ |
|
2270*610*75 |
50-53 |
252 pcs / 349 ㎡ |
|
|
2270*610*90 |
55-58 |
207 pcs / 287 ㎡ |
|
|
2270*610*100 |
60-65 |
189 pcs / 262 ㎡ |
|
|
2270*610*120 |
65-75 |
153 pcs / 212 ㎡ |
|
|
2270*610*150 |
90-90 |
126 pcs / 175 ㎡ |
Remark: All kinds of panels can be customized by customers' specific requirement,

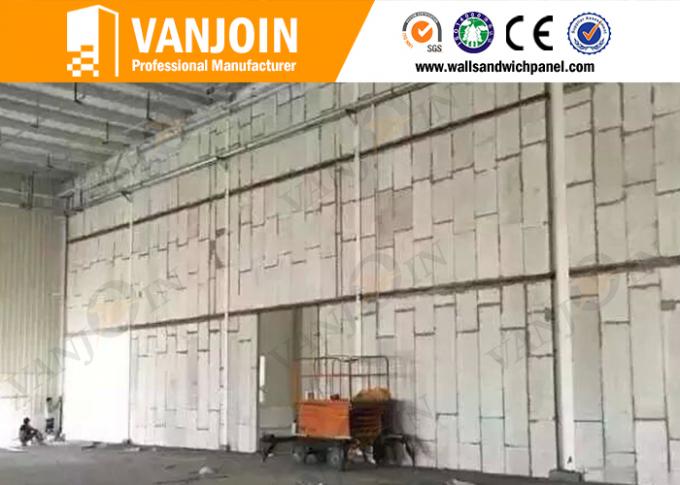

Interior Partition System
Exterior Wall System
Vanjoin lightweigh compound sandwich panel can automatically adjust indoor air and water content with the season and climate changes, which can keep the temperature at an invariable temperature level, and such ecology effect just goes with the tide of modern residential building. It is widely applied to various modular house, low buildings, apartment, villas, and city house, etc.
5. Advantages of VANJOIN Panel
1. Fast construction (25m2/day/person)
2. Windproof (65m/s)
3. Sound insulation(46dB)
4. Anti-impact, Anti-seismic (class: 8)
5. Waterproof, Fireproof (4 hours, under 1000 degree centigrade)
6. Light weight, Energy-saving
7. Eco-friendly green material
8. Save area, Easy installation
9. Heat insulation & preservation
10. Strong and durable, 60-70 years life span.
