Product Details:
Payment & Shipping Terms:
|
| Types: | Nometal Precast Concrete EPS Sandwich Panels | Application: | Interior And Exterior Wall, Fence, Roof And Floor |
|---|---|---|---|
| Thickness: | 60, 75, 90, 100, 120, 150mm | Sound Insulation: | 38dB-46dB |
| Non-combustibility: | Grade A, BS EN ISO1182:2002 | Waterproof: | Good |
| Light Weight: | 1/6 Of Traditional Brick | Fireproof: | 4 Hours FRP |
| Anti-seismic: | 7-8 Class | Heat Insulated: | Good |
| Fast Consruction: | 50-80 ㎡/day | Capacity: | 650kg/m3 |
Insulated Precast Concrete EPS Sandwich Panels , Fireproof Buildling Panels
Vanjoin lightweight sandwich wall panels is lightweight energy-saving building materials.
It can be applied to various high and low rise buildings,such as hotel, office buildings,
bank, hospital, school, shopping mall, amusement hall, portable dwellings, old house reconstruction, family house and workshop ect.
1. Quick Details of Precast Concrete EPS Sandwich Panels , Fireproof Buildling Panels
| Type | Precast Concrete EPS Sandwich Panels |
| Composition |
1. Face boards: calcium silicate board 5mm 2. Core materials: eps foam, cement, sand, additives, etc. |
| Standard Size |
Length 2270mm Width 610mm, Thickness: 60mm,75mm,90mm,100mm,120mm,150mm |
| Application | Exterior and interior wall, floor and roof for various houses and buildings |
| Main Structure of House | Concrete or steel structure |
| Supply ability | 4,000,000m2 per year |
| Delivery time | Within 15 days after receiving prepayment. |
| Payment terms | T/T, L/C |
| Packing Details | 1. Free packing, normal pallet + packing belt 2. Standard exporting packing, good pallet+pearl wool+corner protective paper+packing belt+plastic thin film 3. Packing size: 2270*610*1000mm 4.Loading: 18 pallets per 20' container |
| Samples | Free samples are available |
| Certificates | CE,ISO,,BV, with test reports and patents |
2. Specifications of Precast Concrete EPS Sandwich Panels , Fireproof Buildling Panels
|
Product Name |
Specification (mm) |
Weight (kg/m2) |
Packing (pcs/m2 per 20GP) |
Application |
|
Vanjoin light weight energy-saving compound sandwich panel |
2270x610x60 | 45~48 | 315pcs/436m2 | Roof |
| 2270x610x75 | 50~53 | 252pcs/349m2 | Interior wall | |
| 2270x610x90 | 55~58 | 207pcs/287m2 | Interior/Exterior wall | |
| 2210x610x100 | 60~65 | 189pcs/262m2 | Interior/Exterior wall | |
| 2210x610x120 | 65~75 | 153pcs/212m2 | Exterior wall | |
| 2210x610x150 | 80~90 | 126pcs/175m2 | Exterior wall | |
| 2210x610x180 | 95~105 | 99pcs/138m2 | Exterior wall | |
| Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm | ||||
3. Features of Precast Concrete EPS Sandwich Panels , Fireproof Buildling Panels
| 1. Lightweight | 1 person can carry panel easily, 1/6 of traditional brick |
| 2. Eco-friendly | 100% non-asbestos |
| 3. Fast Construction | 3 workers can install 60-80m2 per day |
| 4. Durable and Long Lifespan | 60-70 years |
| 5. Sound Insulation | 38-46 dB |
| 6. Windproof | 65m/s |
| 7. Fireproof | 4 hours under 1000 degree fire |
| 8. Anti-earthquake | Grade 8-9 |
| 9. Best hanging force | Single point is 50kg;Embedded hanging force 150kg |
| 10. Weight capacity | 650KG / square meter |
| 11.Space saving | Save 4.26m2 per 100 m2 area |
| 12.Anti-seimisic / Earthquake | Class 7-8 |
| 13. Easy decoration | Convenient for pipeline embeded |
4. Application of Precast Concrete EPS Sandwich Panels , Fireproof Buildling Panels
Fire rated composite sandwich board can be used as interior partition wall, exterior wall,
floor, roof and fence for low and high rise house and buildings, which is mainly applied to
interior and exterior partition wall for high buildings.The highest building we have built
is 70 storey.
Precast Concrete EPS Sandwich Panels for Exterior Wall

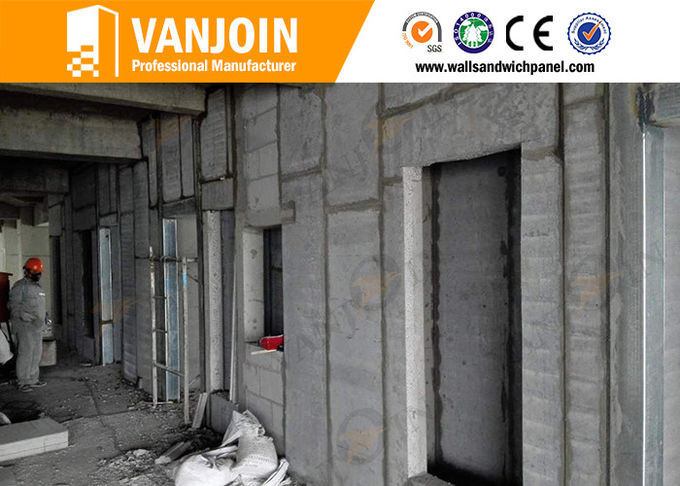

Precast Concrete EPS Sandwich Panels for Interior Wall
1 . What's the MOQ of precast concrete eps sandwich panels?
MOQ is one FCL 20FT Container
2. What's the delivery time of precast concrete eps sandwich panels?
Within 7-15 days after geting the down payment.
3. What's the annual capacity of precast concrete sandwich wall panels?
Our eps sandwich panel with annual production capacity of 4,000,000m2, ranking TOP 2 in China.
4 . Main market of Vanjoin precast concrete sandwich wall panels
Main market : Asia, South Amercia, Africa, South East Asia, Middle East.
5. Can I get free l sample of precast concrete sandwich wall panels?
Yes, you can get free samples within 3-5 days and you only need to pay the courier freight.
6. Certificate of Vanjoin precast concrete sandwich wall panels
We get CE, ISO9001, ISO1004, BV, , Patent certificates. We also passed the fireproof, Sound
insulation and other performance test by the Philippines Science and Technology Department.
6. CE Certificates of Precast Concrete EPS Sandwich Panels Fireproof Buildling Panels
