Product Details:
Payment & Shipping Terms:
|
| Types: | Nometal Lightweight Precast Concrete Panels | Application: | Interior And Exterior Wall, Fence, Roof And Floor |
|---|---|---|---|
| Thickness: | 60, 75, 90, 100, 120, 150mm | Sound Insulation: | 38dB-46dB |
| Non-combustibility: | Grade A, BS EN ISO1182:2002 | Waterproof: | Good |
| Light Weight: | 1/6 Of Traditional Brick | Fireproof: | 4 Hours FRP |
| Anti-seismic: | 7-8 Class | Heat Insulated: | Good |
| Fast Consruction: | 50-80 ㎡/day | Capacity: | 650kg/m3 |
Interior Wall Materials Lightweight Precast Concrete Panels Fire Resistant
Vanjoin lightweight sandwich wall panels is lightweight energy-saving building materials.
It can be applied to various high and low rise buildings,such as hotel, office buildings,
bank, hospital, school, shopping mall, amusement hall, portable dwellings, old house reconstruction, family house and workshop ect.
1. Raw Materials of Interior Wall Lightweight Precast Concrete Panels Fire Resistant
(1)Core material: EPS(Polystyrene) beads, 42% cement, sand, water, addictives ect.
(2)Surface board: calcium silicon board 5mm, both side
2. Specifications of Interior Wall Lightweight Precast Concrete Panels Fire Resistant
|
Product Name |
Specification (mm) |
Weight (kg/m2) |
Packing (pcs/m2 per 20GP) |
Application |
|
Vanjoin light weight energy-saving compound sandwich board |
2270x610x60 | 45~48 | 315pcs/436m2 | Roof |
| 2270x610x75 | 50~53 | 252pcs/349m2 | Interior wall | |
| 2270x610x90 | 55~58 | 207pcs/287m2 | Interior/Exterior wall | |
| 2210x610x100 | 60~65 | 189pcs/262m2 | Interior/Exterior wall | |
| 2210x610x120 | 65~75 | 153pcs/212m2 | Exterior wall | |
| 2210x610x150 | 80~90 | 126pcs/175m2 | Exterior wall | |
| 2210x610x180 | 95~105 | 99pcs/138m2 | Exterior wall | |
| Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm | ||||
3. Features of Interior Wall Lightweight Precast Concrete Panels Fire Resistant
| 1. Lightweight | 1 person can carry panel easily, 1/6 of traditional brick |
| 2. Eco-friendly | 100% non-asbestos |
| 3. Fast Construction | 3 workers can install 60-80m2 per day |
| 4. Durable and Long Lifespan | 60-70 years |
| 5. Sound Insulation | 38-46 dB |
| 6. Windproof | 65m/s |
| 7. Fireproof | 4 hours under 1000 degree fire |
| 8. Anti-earthquake | Grade 8-9 |
| 9. Best hanging force | Single point is 50kg;Embedded hanging force 150kg |
| 10. Weight capacity | 650KG / square meter |
| 11.Space saving | Save 4.26m2 per 100 m2 area |
| 12.Anti-seimisic / Earthquake | Class 7-8 |
| 13. Easy decoration | Convenient for pipeline embeded |
4. Application of Interior Wall Lightweight Precast Concrete Panels Fire Resistant
Fire rated composite sandwich board can be used as interior partition wall, exterior wall,
floor, roof and fence for low and high rise house and buildings, which is mainly applied to
interior and exterior partition wall for high buildings.The highest building we have built
is 70 storey.

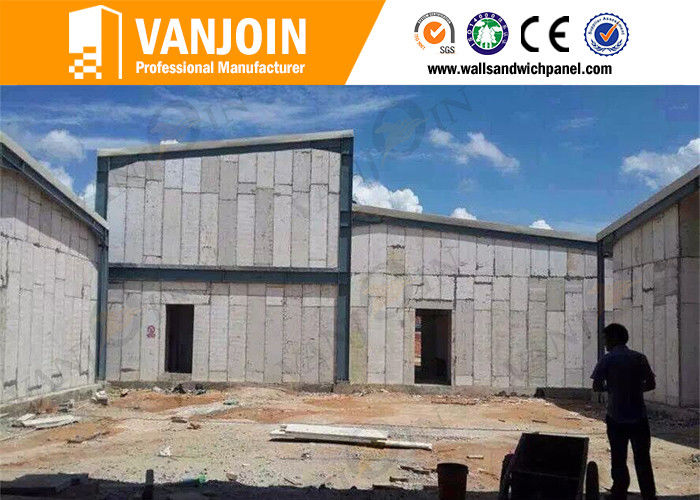

a. Lightweight Precast Concrete Panels for Exterior Wall
b. Lightweight Precast Concrete Panels for Interior Wall
5. CE Certificates of Lightweight Precast Concrete Panels
1 . What's the MOQ of lightweight precast concrete panels?
MOQ is one FCL 20FT Container
2. What's the delivery time of lightweight precast concrete panels?
Within 7-15 days after geting the down payment.
3. What's the annual capacity of lightweight precast concrete panels?
Our eps sandwich panel with annual production capacity of 4,000,000m2, ranking TOP 2 in China.
4 . Main market of Vanjoin lightweight precast concrete panels?
Main market : Asia, South Amercia, Africa, South East Asia, Middle East.
5. Can I get free l sample of lightweight precast concrete panels?
Yes, you can get free samples within 3-5 days and you only need to pay the courier freight.
6. Certificate of Vanjoin lightweight precast concrete panels
We get CE, ISO9001, ISO1004, BV, , Patent certificates. We also passed the fireproof, Sound
insulation and other performance test by the Philippines Science and Technology Department.
