Product Details:
Payment & Shipping Terms:
|
| Types: | Nometal Polystyrene Concrete Wall Panels | Application: | Interior And Exterior Wall, Fence, Roof And Floor |
|---|---|---|---|
| Thickness: | 60, 75, 90, 100, 120, 150mm | Sound Insulation: | 38dB-46dB |
| Non-combustibility: | Grade A, BS EN ISO1182:2002 | Waterproof: | Good |
| Light Weight: | 1/6 Of Traditional Brick | Fireproof: | 4 Hours FRP |
| Anti-seismic: | 7-8 Class | Heat Insulated: | Good |
| Fast Consruction: | 50-80 ㎡/day | Capacity: | 650kg/m3 |

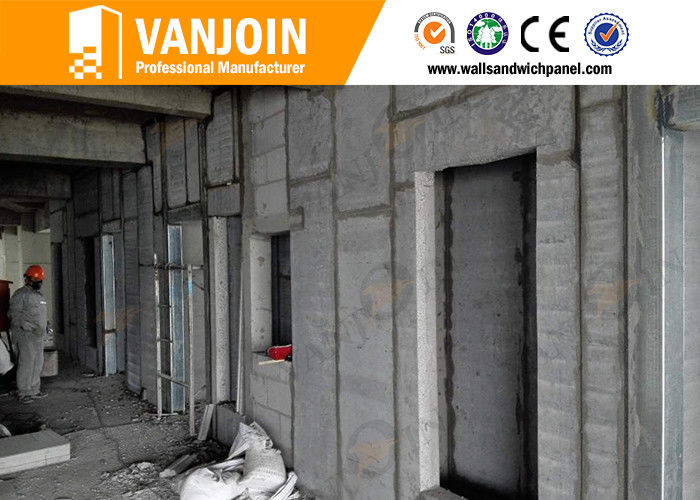

Fire Rated Composite Polystyrene Concrete Wall Panels Sound Insulation
Vanjoin compound sandwich panel is lightweight energy-saving building materials.
It can be applied to various high and low rise buildings,such as hotel, office buildings,
bank, hospital, school, shopping mall, amusement hall, portable dwellings, old house reconstruction, family house and workshop ect.
1. Raw Materials of Fire Rated Composite Polystyrene Concrete Wall Panels
(1)Core material: EPS(Polystyrene) beads, 42% cement, sand, water, addictives ect.
(2)Surface board: calcium silicon board 5mm, both side
2. Specifications of Fire Rated Composite Polystyrene Concrete Wall Panels
|
Product Name |
Specification (mm) |
Weight (kg/m2) |
Packing (pcs/㎡ per 20GP) |
Application |
|
Vanjoin light weight energy-saving compound sandwich board |
2270x610x60 | 45~48 | 315pcs/436㎡ | Roof |
| 2270x610x75 | 50~53 | 252pcs/349㎡ | Interior wall | |
| 2270x610x90 | 55~58 | 207pcs/287㎡ | Interior/Exterior wall | |
| 2210x610x100 | 60~65 | 189pcs/262㎡ | Interior/Exterior wall | |
| 2210x610x120 | 65~75 | 153pcs/212㎡ | Exterior wall | |
| 2210x610x150 | 80~90 | 126pcs/175㎡ | Exterior wall | |
| 2210x610x180 | 95~105 | 99pcs/138㎡ | Exterior wall | |
| Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm | ||||
3. Features of Fire Rated Composite Polystyrene Concrete Wall Panels
1. Lightweight: 1/6 of traditional brick
2. Area-saving: It can save 4.26m² per 100m²(compare with traditional red brick)
3. Waterproof and Damp-proof
4. Fire-proof: passed National fire test, Grade A, 4 hours 1000 centigrade without damage
5. Sound-insulation: 38dB-48dB
6. Best Hanging force, single point load weight: 50kg
7. Anti-seismic and impact resistance: class 7
8. Environmental: 100% not abestos
9. Fast construction and easy decoration: 75-80m²/day
4. Application of Fire Rated Composite Polystyrene Concrete Wall Panels
Fire rated composite sandwich board can be used as interior partition wall, exterior wall,
floor, roof and fence for low and high rise house and buildings, which is mainly applied to
interior and exterior partition wall for high buildings.The highest building we have built
is 70 storey.

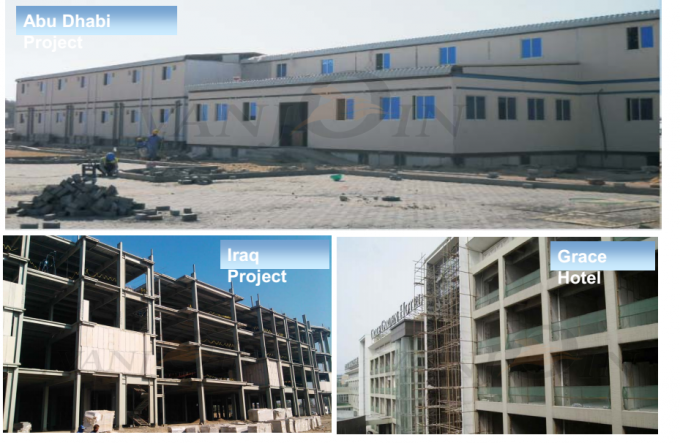

5. Vanjoin Successful Project Cases (Composite Polystyrene Concrete Wall Panels )
6. CE Certificates of Fire Rated Composite Polystyrene Concrete Wall Panels
1 . What's the MOQ of composite polystyrene concrete wall panels?
MOQ is one FCL 20FT Container
2. What's the delivery time of composite polystyrene concrete wall panels?
Within 7-15 days after geting the down payment.
3. What's the annual capacity of composite polystyrene concrete wall panels?
Our eps sandwich panel with annual production capacity of 4,000,000m2, ranking TOP 2 in China.
4 . Main market of Vanjoin composite polystyrene concrete wall panels?
Main market : Asia, South Amercia, Africa, South East Asia, Middle East.
5. Can I get free l sample of composite polystyrene concrete wall panels?
Yes, you can get free samples within 3-5 days and you only need to pay the courier freight.
6. Certificate of Vanjoin composite polystyrene concrete wall panels
We get CE, ISO9001, ISO1004, BV, , Patent certificates. We also passed the fireproof, Sound
insulation and other performance test by the Philippines Science and Technology Department.
