Product Details:
Payment & Shipping Terms:
|
| Features: | Fast Construction, Anti-earthquake, Light Weight, Save Space | Specification(L*W*T): | 2270*610*60/75/90/100/120/150mm |
|---|---|---|---|
| Service Life: | 60-70 Years | Advantages 1: | Lightweight , Eco-friendly |
| Usage: | Exterior Wall, Interior Wall, Roof, Floor | Face Board: | Calcium Silicon Board 5mm |
| Core Material: | EPS, Cement, Sand, Water, Additive, Etc | Fire Resistant: | 4 Hours Under 1000 Degree |
Fireproof Insulation Precast Concrete Wall Panels for Villa Flat Building
1.Vanjoin Lightweight Wall Panel Specification & Loading Details :
Length *Width *Thickness ( 2270---3000)mm*610mm*(60,75,90,100,120,150,180mm)
|
Name |
Size(L*W*T) |
Weight(KG) |
Packing(pcs/㎡ per 20") |
|
VJ light weight compound |
2270mm*610mm*60mm |
45-48 |
315 pcs / 436 ㎡ |
|
2270mm*610mm*75mm |
50-53 |
252 pcs / 349 ㎡ |
|
|
2270mm*610mm*90mm |
55-58 |
207 pcs / 287 ㎡ |
|
|
2270mm*610mm*100mm |
60-65 |
189 pcs / 262 ㎡ |
|
|
2270mm*610mm*120mm |
65-75 |
153 pcs / 212 ㎡ |
|
|
2270mm*610mm*150mm |
90-90 |
126 pcs / 175 ㎡ |
Remark: All kinds of panels can be customized by customers' specific requirement,
such as density and length of panel.

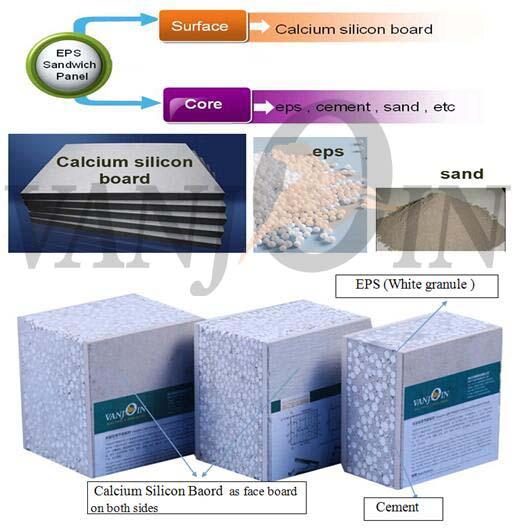

2.Sandwich wall panel Composition :
Face Board : Calcium Silicon Baord
Core Material : Eps , Cement , Sand etc
3. Vanjoin Wall Panel Advantages ( Compare with traditional Construction Materials )
1). Fast construction (25m2/day/person)
2). Windproof (65m/s)
3). Sound insulation(46dB)
4). Anti-impact, Anti-seismic (class: 8)
5). Waterproof, Fireproof
6). Light weight, Energy-saving
7). Eco-friendly green material
8). Save area, Easy installation
9). Heat insulation & preservation
10).Strong and durable, 60-70 years life span

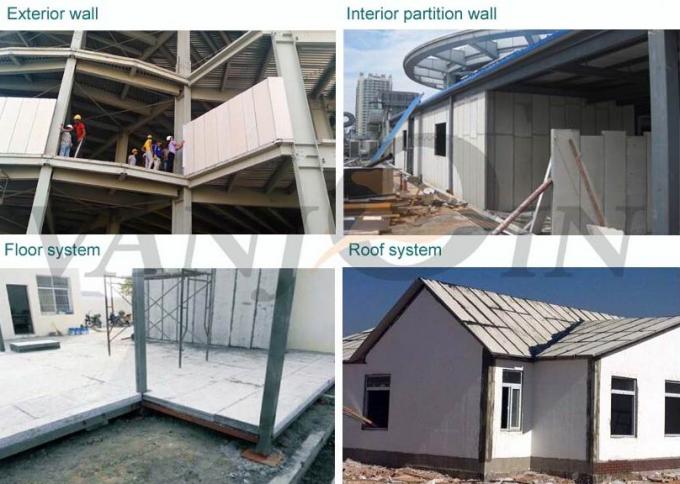

4. EPS Sandwich Wall Panel For Roof , Internal Wall , External Wall & Floor
(1) Can replace construction materials such as red brick, concrete block, Cement Block Etc
(2) For interior and exterior wall on steel or concrete structure building
(3)It can widely be applied to wall materials of various high and low buildings such as hotel,apartment,
tower,mall,bank,office building,hospital,school villa,old house reconstruction,residence and workshop,etc
