Product Details:
Payment & Shipping Terms:
|
| Name: | Lightweight Wall Panel Machine , Fireproof Sandwich Panel Production Line | Automatic: | Full, Semi Automatic Or Manual |
|---|---|---|---|
| Capacity: | 100,000-1,000,000 Square Meter/year | Panel Types: | EPS / Perlite / Ceramicite Sandwich Panel |
| Panel Length: | 2270mm, 2440mm, 2700mm, 3000mm | Panel Width: | 610mm |
| Thickness: | 60,75, 90, 100, 120, 150, 180mm | Application: | Interior Wall, Exterior Wall, Roof Or Floor |
| Mould Type: | Vertical Mould Machine | Installation: | Our Engineer Is Available To Install Machines |
| Guaranty: | 12 Month | Sevice Time: | More Than 20 Years |
Lightweight Wall Panel Machine , Fireproof Sandwich Panel Production Line
I. Detailed Description of Lightweight Wall Panel Machine
| Name | Lightweight Wall Panel Machine |
| Types |
1. Full automation line 2. Semi-automation line 3. Manual Line |
| Products | EPS / Perlite / Ceramicite Sandwich Panel |
|
Specification (sandwich panel) |
Length: 2270mm, 2440mm, 2700mm, 3000mm Width: 610mm Thickness:60mm,75mm, 90mm, 100mm, 120mm, 150mm, 180mm |
|
Application (sandwich panel) |
Interior wall, exterior wall, roof for house, villa, apartment, school, hotel, office building and so on |
| Capacity | 100,000-1,000,000 square meter/year |
| Trade terms | EXW, FOB, CNF, CIF |
| Payment terms | TT, L/C |
| Payment condition |
1. 40% TT deposit in advance, 55% TT balance before delivery, and 5% after installation but before adjusting machines by our engineer. 2. 100% L/C at sight |
| Delivery time | 30-45days after getting advanced payment |
| Loading port | Wuhan / Shanghai Port |
| Package | Standard exported packing |
| Our service |
1. Investment cost calculation 2. Capacity calculation 3. Factory design 4. Production line layout design 5. on site engineers for installation and guidance 6. Service life: over 20 years 7. Warranty :1 year 8. Free training |
| Your preparation |
1. Raw materials:EPS, sand, cement, water, addictives and ect.(your local materials can also be used) 2. Land (see specifications) 3. Workers (see specifications) |
II. Material for producing eps sandwich panel (Lightweight Wall Panel Machine)
| Face board | Calcium silicate board. Width must be 608mm, allowed tolerance is ±2mm. |
| EPS | Expandable polystyrene granule |
| Sand | SiO2≥98% |
| Cement | Ordinary portland cement with grade of 42.5 |
| Additives | Vanjoin customized additives |
| Water | Normal water |
| Assistant Material | Wasted machine oil, used to lubricate pressing mould plate, aluminum mould plate |
III. Size of Wall Panels machine can produce (Lightweight Wall Panel Machine)
| Length | 2270mm, 2440mm, 3000mm |
| Width | 610mm |
| Thickness | 60mm, 75mm, 90mm, 100mm,120mm, 150mm, 180mm |
IV. Moulder car, Labors and Land Reuired (Lightweight Wall Panel Forming Machine)
| Annual Output(m2) | Quantity of Moulding Cars(set) | Quantity of Workers Required | Prodction Area(m2) | Stacking Area(m2) |
| 100,000 | 5 | 8--13 | 500 | 1000 |
| 200,000 | 8 | 10--18 | 600 | 2000 |
| 300,000 | 10 | 12--20 | 700 | 3000 |
| 400,000 | 11 | 15--23 | 800 | 4000 |
| 500,000 | 12 | 18--28 | 900 | 5000 |
| 600,000 | 13 | 22--32 | 1000 | 6000 |
| 700,000 | 14 | 25--35 | 1100 | 7000 |
| 800,000 | 15 | 28--38 | 1200 | 8000 |
| 900,000 | 16 | 32--42 | 1300 | 9000 |
| 1,000,000 | 17 | 35--46 | 1400 | 10000 |
IV. Main Systems of Lightweight Wall Panel Forming Machine
1) Foaming System including: Electric / oil / gas Boiler + EPS foaming machine
2) Raw material storage measuring and conveying system: AUTOMATIC weighing and supply
3) Mixing system: two sets double-horizontal-shaft compulsory mixing and discharging separately.
4) Wall panel forming and gating system
1. Railway system
2. Steering system
3. Casting moulding system
5) Automatic Control System: auto feeding; electronic weighing & PLC touch screen One-key Control
IV. Our Outstanding Advantages of Vanjoin Lightweight Wall Panel Forming Machine
1. One-key intelligent operation
2. Unique Operation Software
3. Addictives (with patent)
4. Measuring precisely ensuring each panel is with exactly same materials and ratio
5. Easy maintenance by demounting the broken piece
6. Recycling use the eps foam& eco-friendly
7. Use local resources to reduce your production cost): sand, Volcanic rock,Plant seeds
8. Professional after-services
We are not only a supplier of machine, but also an experienced sandwich panel manufacturer.
We have produced eps sandwich panel for 10 years. Annual capacity is 4,000,000m², exporting 600 containers per month. Therefore, we can solve all production problems that you meet.

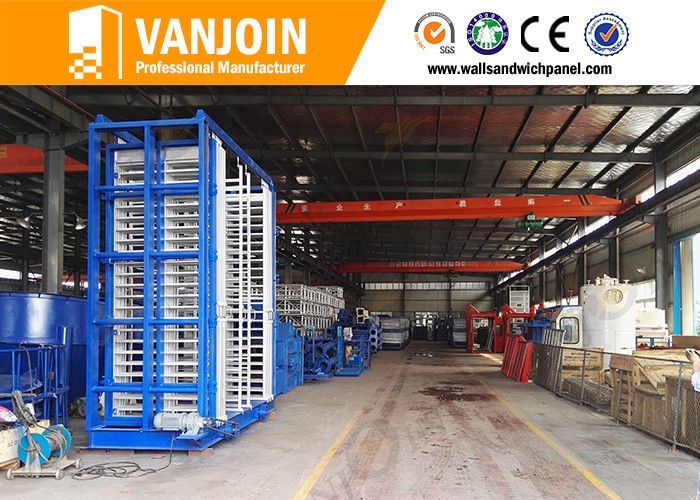

V. Photos of Lightweight Wall Panel Forming Machine
