Product Details:
Payment & Shipping Terms:
|
Application: | Produce Wall Panel | Mixer: | JS750 |
---|---|---|---|
Mould Car: | Vertical | Minimum Production Capacity: | 100,000m2/Year |
Maximum Production Capacity: | 1,000,000/m2/yYear | Service Life: | 20 Years |
Guarantee: | 1 Year | Overseas Service: | Available |

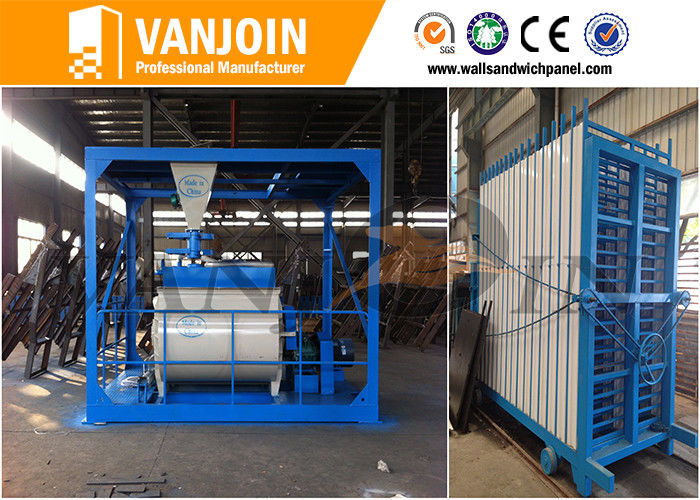

Fireproof Wall Panel Machine Heat Insulation Panel Making Machinery
1. Specification of Wall Panels It Can Produce
Length | 2270mm, 2440mm, 3000mm |
Width | 610mm |
Thickness |
60mm, 75mm, 90mm, 100mm,120mm, 150mm, 180mm |
2. Material Requirements
Face board | Calcium silicate board. Width must be 608mm, allowed tolerance is ±2mm. |
EPS | Expandable polystyrene granule |
Sand | SiO2≥98% |
Cement | Ordinary portland cement with grade of 42.5 |
Additives | Vanjoin customized additives |
Water | Normal water |
Assistant Material | Wasted machine oil, used to lubricate pressing mould plate, aluminum mould plate |
3. Main Machines
Boiler | electric boiler, coal boiler, gas boiler |
EPS Foaing Machine | continuous pre-expander |

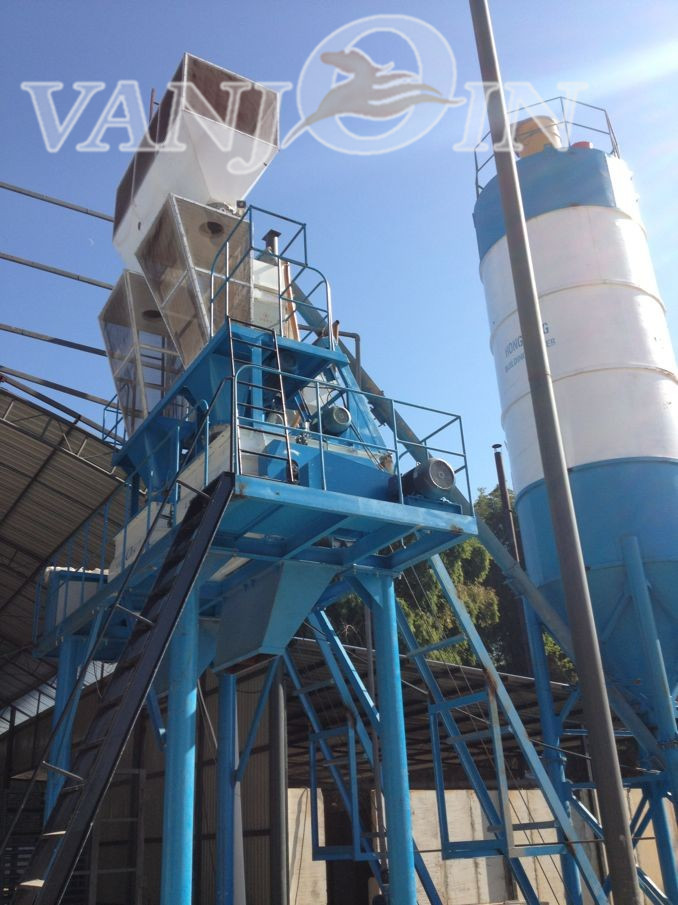

Silo | cement Silo,sand silo |
Mixer | JS750, JS1000 |
Mould Car | Vertical |

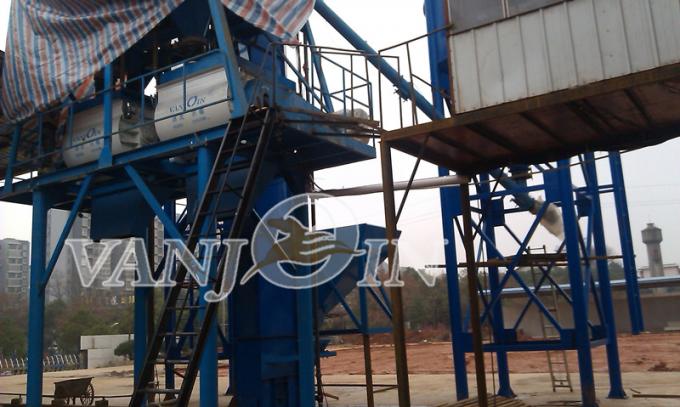

4. Parameters of Mixing System
Theoretical Productivity | 2×35m³/h |
Mixing Time | ≤180s |
Materials Measuring Accuracy | ±1% |
Sand Batching Period | ≤10s |
Sand delivering Speed | 18m³/h |
Water Supply Flow Speed | 30m³/h |
Cement Delivering Capacity | 20t/h |
5. Technical Information of Mould Machine
Item | Main Parameters | ||||||
Overall Dimensions |
3180mm×1380mm×3480mm |
||||||
Weight
|
2800KG |
||||||
Movement Power(KW) |
2.2 |
||||||
Movement Speed(m/min)
|
≤60 |
||||||
Main Components
|
Main Part
|
Base(contain power device), front support, back support, pressing plate, rod
|
|||||
Accessories
|
Pressing Mould Plate, side mould
|
||||||
Production Data
|
Thickness
(mm) |
Width
(mm) |
Length
(mm) |
Production Quantity
(pieces/set) |
Area
(㎡/set) |
Raw Materials
(m³) |
|
60 |
610 |
2270 |
60 |
83.0 |
4.15 |
||
75 |
610 |
2270 |
50 |
69.2 |
4.50 |
||
90 |
610 |
2270 |
42 |
58.1 |
4.65 |
||
100 |
610 |
2270 |
40 |
55.3 |
4.98 |
||
120 |
610 |
2270 |
34 |
47.0 |
5.17 |
||
150 |
610 |
2270 |
28 |
38.7 |
5.42 |
||
180 |
610 |
2270 |
22 |
30.4 |
5.77 |
