Product Details:
Payment & Shipping Terms:
|
| Minimum Production Capacity: | 100,000m2/Year | Maximum Production Capacity: | 1,000,000/m2/yYear |
|---|---|---|---|
| Service Life: | 20 Years | Guarantee: | 1 Year |
| Application: | Produce Wall Panels | Status: | Brand New |
| Production Technology: | Engineer Overseas Training Provided | Mould Car Type: | Vertical |
| Mixer Capacity: | JS1000 / JS1500 |

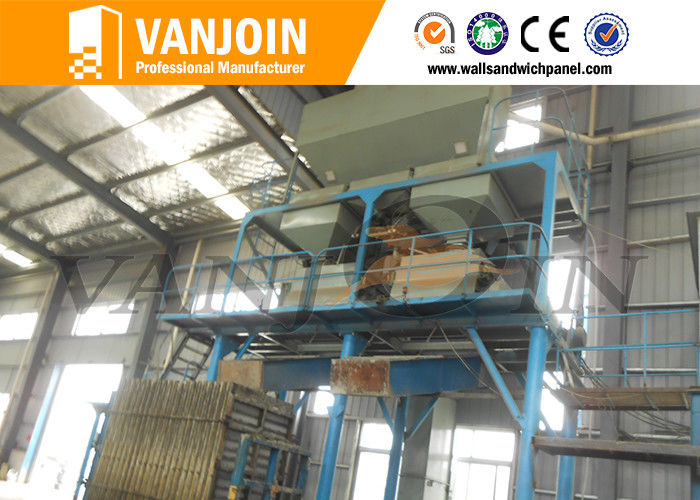

Heat Insulation Wall Panel Machine Sound Insulation Panel Production Line
1. Wall Panel Types It Can Produce
| EPS Sandwich Wall Panel | with face board |
| EPS Sandwich Wall Panel | without face board |
| Ceramisite Sandwich Wall Panel |
with face board |
| Ceramisite Sandwich Wall Panel | without face board |
| Perlite Sandwich Wall Panel | with face board |
| Perlite Sandwich Wall Panel | without face board |
| EPS&Ceramisite Sandwich Wall Panel | with face board |
| EPS&Ceramisite Sandwich Wall Panel | without face board |
2. Material Requirements
| Face board | Calcium silicate board. Width must be 608mm, allowed tolerance is ±2mm. |
| EPS | Expandable polystyrene granule |
| Sand | SiO2≥98% |
| Cement | Ordinary portland cement with grade of 42.5 |
| Additives | Vanjoin customized additives |
| Water | Normal water |
| Assistant Material | Wasted machine oil, used to lubricate pressing mould plate, aluminum mould plate |
3. Main Machines
| Boiler | electric boiler, coal boiler, gas boiler |
| EPS Foaing Machine | continuous pre-expander |
| Silo | cement Silo,sand silo |
| Mixer | JS750, JS1000 |

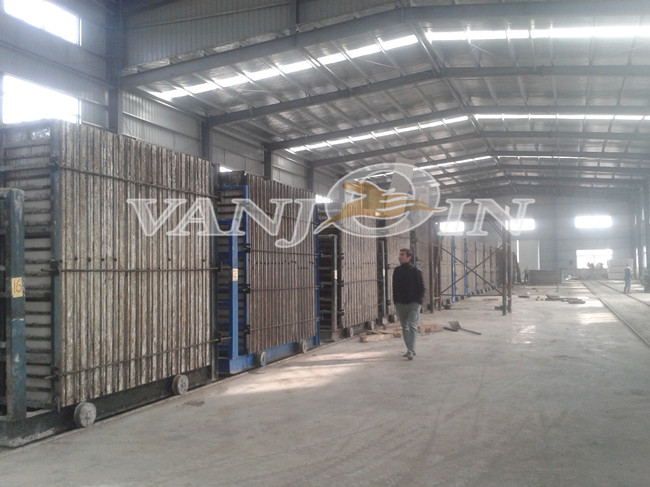

| Mould Car | Vertical |
5. Technical Information of Mould Machine
| Item | Main Parameters | ||||||
| Overall Dimensions |
3180mm×1380mm×3480mm |
||||||
|
Weight
|
2800KG |
||||||
|
Movement Power(KW) |
2.2 |
||||||
|
Movement Speed(m/min)
|
≤60 |
||||||
|
Main Components
|
Main Part
|
Base(contain power device), front support, back support, pressing plate, rod
|
|||||
|
Accessories
|
Pressing Mould Plate, side mould
|
||||||
|
Production Data
|
Thickness
(mm) |
Width
(mm) |
Length
(mm) |
Production Quantity
(pieces/set) |
Area
(㎡/set) |
Raw Materials
(m³) |
|
|
60 |
610 |
2270 |
60 |
83.0 |
4.15 |
||
|
75 |
610 |
2270 |
50 |
69.2 |
4.50 |
||
|
90 |
610 |
2270 |
42 |
58.1 |
4.65 |
||
|
100 |
610 |
2270 |
40 |
55.3 |
4.98 |
||
|
120 |
610 |
2270 |
34 |
47.0 |
5.17 |
||
|
150 |
610 |
2270 |
28 |
38.7 |
5.42 |
||
|
180 |
610 |
2270 |
22 |
30.4 |
5.77 |
||
Why Choose Vanjoin?
Save Freight, you don't need to import wall panels any more
Fast Delivery, you can send wall panels to your customers directly and quickly
Easy Handling, the customers in your country don't need the import procedures
More Profit, seize the market opportunities timely
