Product Details:
Payment & Shipping Terms:
|
| Raw Material: | EPS, Sand/fly Ash, Cement, Additives | Specification(L*W*T): | 2270*610*60/75/90/100/120/150mm |
|---|---|---|---|
| Safety: | 100% Non-asbestos, Green, Eco-friendly | Hanging Force: | 50kg |
| Fireproof: | 240min (1000 Degree ) | Sound Insulation: | 46dB |
| Anti-earthquake: | Class 8-13 | Useful Life: | 70years |
Sound System Environmental Precast Concrete Wall Panels Panel Fireproof Board
Composition:
Core materials: cement, EPS, and fly ash or sand core
Surface materials: fiber reinforced calcium silicone board or cement calcium silicone board
Panel Specification:
|
Name |
Size(L*W*T)mm |
Weight (kg/m2) |
Packing(pcs/m2 |
Application |
|
|
2270x610x60 |
45-48 |
315 pcs /436 m2 |
Roof, interior wall |
|
2270x610x75 |
50-53 |
252pcs / 349 m2 |
Interior wall |
|
|
2270x610x90 |
55-58 |
207pcs / 287 m2 |
Interior/exterior wall |
|
|
2270x610x100 |
60-65 |
189pcs / 262 m2 |
Interior/exterior wall |
|
|
2270x610x120 |
65-75 |
153pcs / 212 m2 |
Exterior wall |
|
|
2270x610x150 |
80-90 |
126pcs / 175 m2 |
Exterior wall |
Remark: All kinds of panels can be customized by customers' specific requirement,
Wall Panel Performance:
|
Light weight |
1 person can take up two pieces of vanjoin panel |
|
Energy-saving, Eco-friendly |
100% non-asbestos |
|
Strong and durable |
Long life 60-70 years |
|
Heat insulation and preservation |
Thermal conductivity: 0.221W/mk |
|
Sound insulation |
42-46 DB |
|
Weatherproof; windproof |
70m/s; grade 13 |
|
Fireproof |
Our sandwich wall panel can keep well under 1000 degree |
|
Anti-impact, anti-earthquake |
Grade 8 |
|
Best hanging strength |
Single point hanging force is > 1200 N |
|
Load bearing capacity |
Over 50 kg |
Application of EPS Wall Panel:
*All kinds of new and old building constructions of indoor and outdoor decoration;
*Indoor and outdoor decoration of office buildings, hospitals, shops, restaurants, bars and other public buildings;
*Interior and exterior wall decoration of family homes, luxury apartments, villas etc;
*Particularly suitable for high-rise building exterior wall insulation decoration.
Panel Types:
|
Different Types |
Different Panels |
|
Type 1 |
EPS cement sandwich panel |
|
Type 2 |
Solid eps cement sandwich panel |
|
Type 3 |
Ceramisite sandwich panel |
|
Type 4 |
Solid Ceramisite sandwich panel |
|
Type 5 |
Perlite sandwich panel |
|
Type 6 |
Solid perlite sandwich panel |
|
Type 7 |
Eps & Ceramicite Sandwich Panel |
|
Type 8 |
Solid Eps & Ceramicite Sandwich Panel |
Packing wall panels :
1. Free pack (with normal pallet and packing belt)
2. Standard exporting packing: wrapped with plastic thin film, edge protector and good pallet.
3. 18 pellets per 20'ft
About US:
We are experienced in this field for 10 years;
We have a 40,000m2 factory, with 60000m2 sotcking area;
We are ranking Top 2 in China, and Top 1 in middle of China;
We are certificated with CE, , ISO9001, ISO14000, Invention Patent, STC tests, etc;
Our production capacity is 2,000,000m2/year;
Our average exports is over 400 containers/month;
Our main markets: Southeast Asia, Africa, Middle East, South America, Oceania, Europe, etc.
FAQ:
1. How many years your company to produce this kind of wall panel ?Until now Which country did you export to?
8 years. It has been widely exported to UAE,Qatar,Russian,Cyprus,Spain,Canada,Australia,Korea, Maldives, philippines,Brazil,Chile,India,Portugal ,Mexico and so on
2. Could you please send us your sample if possible ?
Of course,we can send you free sample,as well as catalog and CD, but delivery cost is on you.Please let me know your express account ,such as DHL,TNT or UPS and so on .
Or we will tell you our west union,then we will send you quickly.

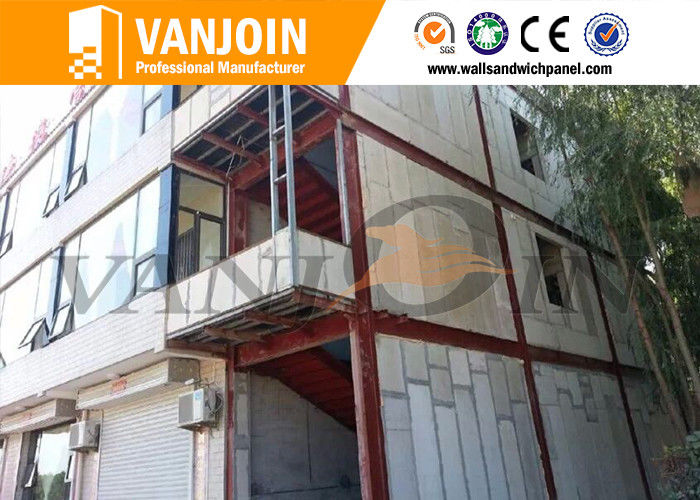

Precast Concrete Wall Panels:

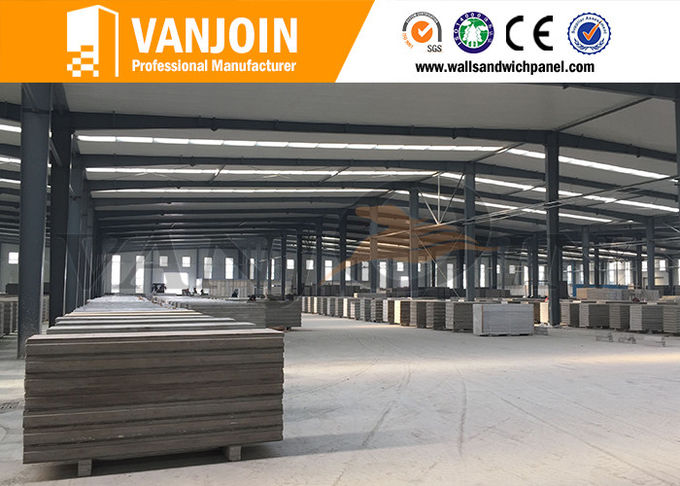

Our workshop
