Fire Resistant Exterior Wall And Interior Wall Panel Forming Machine
Description:
1 . This production line has high output & returns, low input, high reach in production output of 1,000,000 sqm a year .
2 . Our wall panel production line can produce Solid panel(SPB), Reinforced Panel (JPB) and Sandwich Panel(FPB), with advantage of flexible investment, one set of machinery can produce various panels. It is suitable for both small and large manufacturing on production.
Why Choose VANJOIN Production Line?
※ Save freight: You don't need to import the wall panel any more.
※ Fast delivery: You can send the wall panels to your customers directly and quickly
※ Easy handling: The customers in your country don't need the import procedures
※ More profit: Seize the market opportunities timely.
Outstanding Advantages:
1 . Measuring precisely ensuring each panel is with exactly same materials and ratio
2 . Easy maintenanceby demounting the broken piece
3 . Recycling use the eps foam& eco-friendly
4 . Taking good use of local resources: sand
5 . Fully closed working ensuring clear factory with less pollution
Component:
1 . Foaming System.

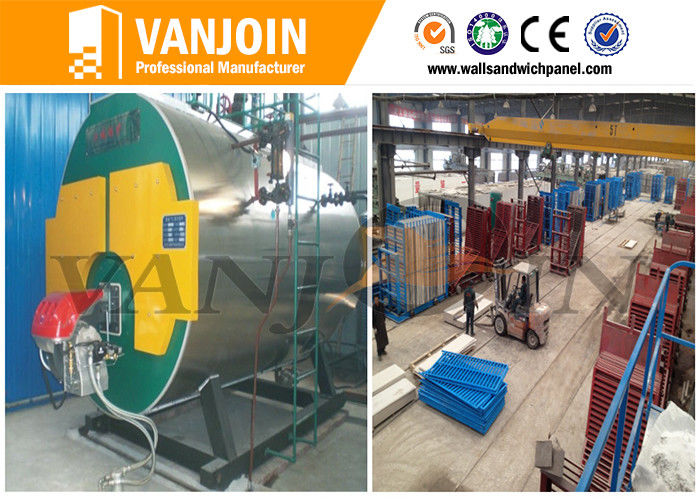

1) Boiler system
The equipment is mainly used for supplying steam for the foaming equipment to foam EPS foam. We used electric heating boiler, which is heating water by electric energy to obtain the specified parameters of steam or hot water. The boiler's thermal efficiency is higher than 98%. Electricity is used for the boiler to heat, clean and pollution-free at site.
2) Continuous pre-expander machine (EPS foaming machine)
The machine adopts PLC and touch screen control, automatic filling, electronic weighing, temperature control, material level control to realize automatic production.
It is complete with Screw Convey and Electronic Weighing system. It can realize the primary and second expansion.
Technical Parameters:
|
Item |
Unit |
PSF-Q1400JR |
|
Diameter |
mm |
1400 |
|
Shell height |
mm |
2000 |
|
Volume |
m³ |
3 |
|
Usable volume |
m³ |
2.8 |
|
Steam pressure |
Mpa |
0.6-0.8 |
|
Compressed air pressure |
Mpa |
0.6-0.8 |
|
Density |
kg/m³ |
12-40 |
|
Throughput |
kg/h |
150-600 |
|
Connected load |
kw |
14.87 |
|
Overall dimension |
mm |
1400x2150x2950 |
|
Machine weight |
kg |
2500 |
2 . Raw Materials Storage / Measuring / Conveying System
Usde for sand, cement, water storage and measurement.
3 . Mixing System

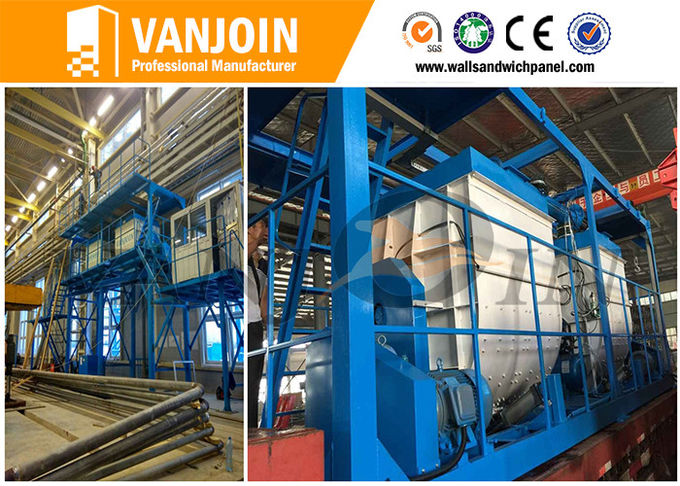

This concrete mixing plant, through full automatic control system, can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials, and additives, etc.
Parameters:
|
Theoretical Productivity |
2×35m³/h |
|
Mixing Time |
≤180s |
|
Materials Measuring Accuracy |
±1% |
|
Sand Batching Period |
≤10s |
|
Sand delivering Speed |
18m³/h |
|
Water Supply Flow Speed |
30m³/h |
|
Cement Delivering Capacity |
20t/h |
4 . Forming and Gating System

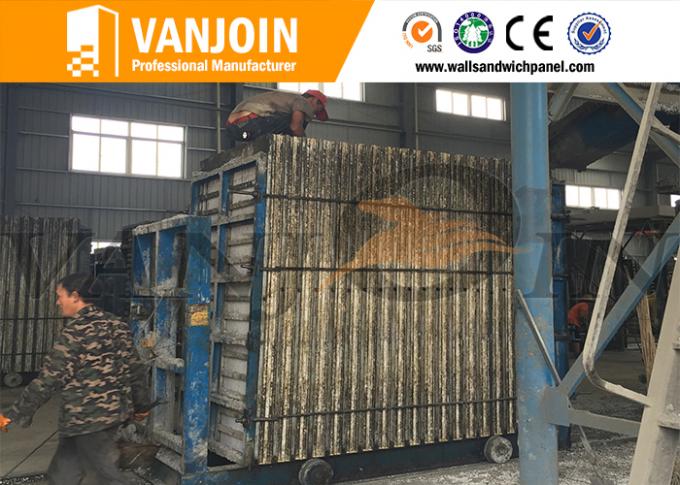

1) Railway of production line
2) Automatica mould machine
Parameters:
|
Item |
Main parameters |
|||||
|
Overall Dimensions |
3180mm×1380mm×3480mm |
|||||
|
Weight |
2800KG |
|||||
|
Movement Power(KW) |
2.2 |
|||||
|
Movement Speed(m/min) |
≤60 |
|||||
|
Main Components |
Main Part |
Base(contain power device), front support, |
||||
|
|
Accessories |
Pressing Mould Plate, side mould |
||||
|
Production Data |
Thickness |
Width |
Length |
Production Quantity |
Area |
Raw Materials |
|
60 |
610 |
2270 |
60 |
83.0 |
4.15 |
|
|
75 |
610 |
2270 |
50 |
69.2 |
4.50 |
|
|
90 |
610 |
2270 |
42 |
58.1 |
4.65 |
|
|
100 |
610 |
2270 |
40 |
55.3 |
4.98 |
|
|
120 |
610 |
2270 |
34 |
47.0 |
5.17 |
|
|
150 |
610 |
2270 |
28 |
38.7 |
5.42 |
|
|
180 |
610 |
2270 |
22 |
30.4 |
5.17 |
|
3) Automatic transfer vehicle
4) Vibration platform
5) Electrical control cabinet: can be customized.
Raw materials for Production are:
1 . Face Board:
Calcium Silicate Board, Magnesium Oxide Board, Fiber Cement Board, Cement Board, Glass Fiber Boar
Width of face board must be 608mm, allowed tolerance is ±2mm.
2 . Sand: SiO2≥98% Fineness: Residue on 200 pore sieve ＜10%
3 . Cement: Ordinary Portland cement with grade of above 42.5
4 . EPS (Expandable Polystyrene Granule), Perlite, Ceramicite, volcanic rock and other light-weight & porous materials.
5 . Vanjoin Chemical Additives for Light Weight Energy Saving Wall Panel
6 . Water
7 . Assistant Raw Material
Mould discharging agent, used to lubricate pressing mould plate & aluminum mould plate, buyer can use wasted machine oil.
The Above mentioned contents are basic requirement for raw material. In some circumstances, qualified light weight energy saving wall panel can also be produced even with different raw material, while the
raw material should be analyzed particularly so as to confirm its adaptability.
