Thermal Insulation Eco Wall Panel Building Material Making Machinery

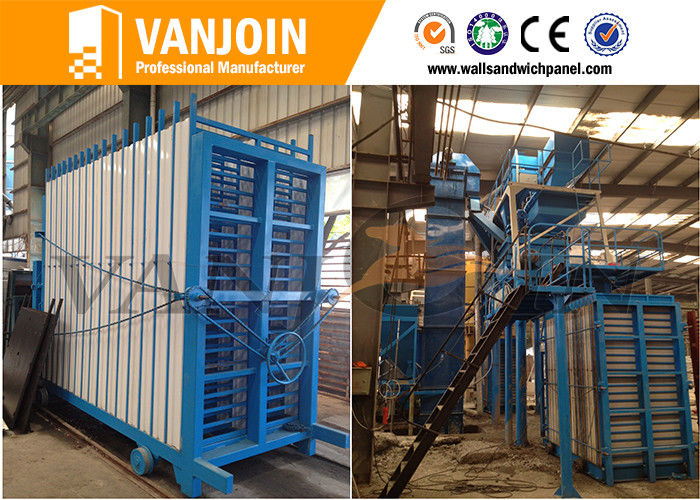

Large Image : Thermal Insulation Eco Wall Panel Building Material Making Machinery

Product Details:

Place of Origin:	Huhei, China
Brand Name:	Vanjoin
Certification:	ISO9001, ISO14001, BV
Model Number:	VJ-M-02H

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Standard Exporting Package
Delivery Time:	30-45 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20 sets per month

Detailed Product Description

Product Name:	Wall Panel Forming Machine	Color:	Blue Or Customized
Production Capacity:	From 100,000 To 1,000,000 SQM Per Yaer	Power Current:	500A
Boiler Voltage:	380V	Warranty:	12 Months
Type:	Automatic	After-sales Service :	Engineers Available To Service Machinery Overseas

Thermal Insulation Eco Wall Panel Building Material Forming Machine

Raw materials for Production are:

1 . Face Board:

Calcium Silicate Board, Magnesium Oxide Board, Fiber Cement Board, Cement Board, Glass Fiber Boar

Width of face board must be 608mm, allowed tolerance is ±2mm.

2 . Sand: SiO2≥98% Fineness: Residue on 200 pore sieve ＜10%

3 . Cement: Ordinary Portland cement with grade of above 42.5

4 . EPS (Expandable Polystyrene Granule), Perlite, Ceramicite, volcanic rock and other light-weight & porous materials.

5 . Vanjoin Chemical Additives for Light Weight Energy Saving Wall Panel

6 . Water

7 . Assistant Raw Material

Mould discharging agent, used to lubricate pressing mould plate & aluminum mould plate, buyer can use

wasted machine oil.

The Above mentioned contents are basic requirement for raw material. In some circumstances, qualified

light weight energy saving wall panel can also be produced even with different raw material, while the

raw material should be analyzed particularly so as to confirm its adaptability.

Outstanding Advantages:

1 . Measuring precisely ensuring each panel is with exactly same materials and ratio

2 . Easy maintenanceby demounting the broken piece

3 . Recycling use the eps foam& eco-friendly

4 . Taking good use of local resources: sand

5 . Fully closed working ensuring clear factory with less pollution

Component:

1 . Foaming System.

1) Boiler system

The equipment is mainly used for supplying steam for the foaming equipment to foam EPS foam. We used electric heating boiler, which is heating water by electric energy to obtain the specified parameters of steam or hot water. The boiler's thermal efficiency is higher than 98%. Electricity is used for the boiler to heat, clean and pollution-free at site.

2) Continuous pre-expander machine (EPS foaming machine)

The machine adopts PLC and touch screen control, automatic filling, electronic weighing, temperature control, material level control to realize automatic production.

It is complete with Screw Convey and Electronic Weighing system. It can realize the primary and second expansion.

Technical Parameters:

Item	Unit	PSF-Q1400JR
Diameter	mm	1400
Shell height	mm	2000
Volume	m³	3
Usable volume	m³	2.8
Steam pressure	Mpa	0.6-0.8
Compressed air pressure	Mpa	0.6-0.8
Density	kg/m³	12-40
Throughput	kg/h	150-600
Connected load	kw	14.87
Overall dimension	mm	1400x2150x2950
Machine weight	kg	2500

2 . Raw Materials Storage / Measuring / Conveying System
Usde for sand, cement, water storage and measurement.
3 . Mixing System
This concrete mixing plant, through full automatic control system, can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials, and additives, etc.

Parameters:

Theoretical Productivity	2×35m³/h
Mixing Time	≤180s
Materials Measuring Accuracy	±1%
Sand Batching Period	≤10s
Sand delivering Speed	18m³/h
Water Supply Flow Speed	30m³/h
Cement Delivering Capacity	20t/h

4 . Forming and Gating System
1) Railway of production line

2) Automatica mould machine

Parameters:

Item				Main parameters
Overall Dimensions ( Length × Width × Height )				3180mm×1380mm×3480mm
Weight				2800KG
Movement Power(KW)				2.2
Movement Speed(m/min) (m/min)				≤60
Main Components	Main Part			Base(contain power device), front support, back support, pressing plate, rod
	Accessories			Pressing Mould Plate, side mould
Production Data	Thickness (mm)	Width (mm)	Length (mm)	Production Quantity (pieces/set)	Area (㎡/set)	Raw Materials (m³)
	60	610	2270	60	83.0	4.15
	75	610	2270	50	69.2	4.50
	90	610	2270	42	58.1	4.65
	100	610	2270	40	55.3	4.98
	120	610	2270	34	47.0	5.17
	150	610	2270	28	38.7	5.42
	180	610	2270	22	30.4	5.17
