150MM Fireproof Prefabricated Exterior Wall Panels Light weight Anti - Seismic

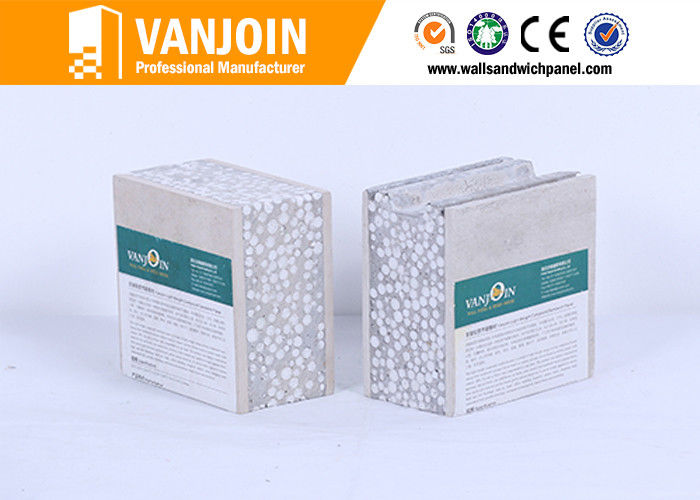

Large Image : 150MM Fireproof Prefabricated Exterior Wall Panels Light weight Anti - Seismic

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	VJ-WPE-01

Payment & Shipping Terms:

Minimum Order Quantity:	200 Square Meter/Square Meters free sample available
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	7-15 days after receiving prepayment
Payment Terms:	L/C,T/T,Paypal, Western Union, D/A,D/P
Supply Ability:	200000 Square Meter/Square Meters per Month

Detailed Product Description

Product Name:	Exterior Lightweight Precast Concrete Wall Panels 100MM Fireproof	Advantages:	Fast Construction, Anti-earthquake, Light Weight, Save Space
Specification(LWT):	227061060/75/90/100/120/150mm	Service Life:	60-70 Years
Weight:	45~90 Kg/㎡	Fireproof:	Under 1000 Degree For 4 Hours Without Damage To The Wall
Sound-insulation:	46db	Construction Efficiency:	3 Workers One Week For 100m2 House
Heat Insulation:	5 Degree Difference Between Inside And Outside	Anchorage Load:	50 Kgs

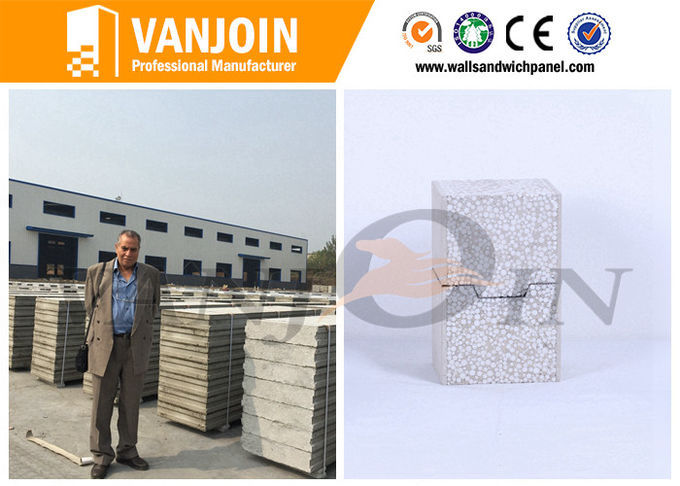

150MM Fireproof Prefabricated Exterior Wall Panels Light weight Anti - Seismic

1 >. Production Description of Precast Concrete Wall Panels:
Vanjoin EPS Cement wall Panel is composed of exterior panels and interior core filling, to form a non-load-bearing lightweight composite wall panel. The exterior panels on both sides are 5mm calcium silicate board, and the middle core is filled with polystyrene beads & cement or ceramicite, polystyrene beads &

cement.

2 >. Performance Index of Precast Concrete Wall Panels:

O.	Item	National Standards			Testing Results
		60mm	90mm	120mm	60mm	90mm	120mm
1	Anti-impact performance/times	≥5	≥5	≥5	≥6	≥6	≥10
2	Anti-bending damage load/times over deadweight	≥1.5	≥1.5	≥1.5	≥3	≥3	≥3


3	Anti-pressure strength /Mpa	≥3.5	≥3.5	≥3.5	≥6	≥6	≥6


4	Surface density kg/m2	≤70	≤90	≤110	≤45	≤54	≤66
5	Single point hanging Strength /N	≥1000	≥1000	≥1000	≥1000	≥1200	≥1300


6	Fire proof limit /h	≥1	≥1	≥1	≥3	≥3	≥4
7	Sound insulation capacity in the air /Db	≥30	≥35	≥40	≥35	≥40	≥45
8	Soften coefficient	≥0.80	≥0.80	≥0.80	≥1	≥1	≥1
9	Moisture rate a/%	≤12	≤10	≤10	≤10	≤9	≤7
10	Heat transfer coefficient w/m2.k	≤2.0	≤2.0	≤2.0	≤1.0	≤0.6	≤0.5
11	Drying shrinkage /mm/m	≤0.6	≤0.6	≤0.6	≤0.45	≤.0.5	≤0.5
12	Inner radiation index	≤1	≤1	≤1	≤1	≤1	≤1


13	Outer radiation index	≤1	≤1	≤1	≤1	≤1	≤1


14	Radioactivity Limit	≤1	≤1	≤1	≤1	≤1	≤1

3 >. Specification of Precast Concrete Wall Panels:
• Thickness: 60, 75, 90, 100, 120, 150mm
• Width: 610mm
• Length: 2270mm (custom-made length can be made for volume order)

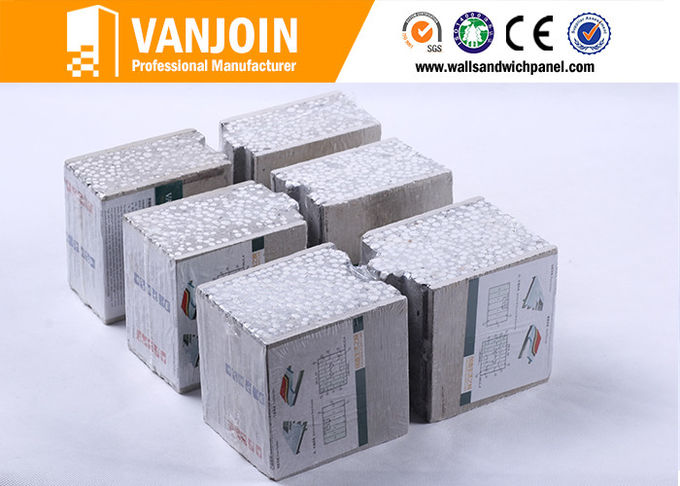

150MM Fireproof Prefabricated Exterior Wall Panels Light weight Anti - Seismic
Remark: All kinds of panels can be customized by customers' specific requirement, such as density and

length of panel.

4 >. Installation of Precast Concrete Wall Panels:

1. Setting the line and carrying the board in position	Eject double lines of board thickness up and down the axes of installed wall board, and easily carry to the side of wall according to the specification needed;
2. Sawing board	Using hand-hold electric saw to cut freely according to the wall specification.
3. Sizing	Sizing cement on tenon side of two boards, then spread polymer mortar on the tenon side casually;
4. Installation	Carrying the board prepared to be installed to the installation place, correcting the wall board by gavelock and making it close tightly, and let the polymer mortar squeeze out into full and fixing it with a chock temporarily;
5. Correcting, fixing	Using the guiding rule of two meters to check the verticality and leveling correction. Then using 6mm or 8mm reinforcing steel bar and ribs adding with construction sealant to fix;
6. Grouting and filling starch	Filling the strickling the corrected wall board with polymer mortar, filling the big gap with pea gravel concrete;
7. Sticking fiberglass mesh (we can supply )	After the polymer (for filling the gaps) and Wall are shaped, sticking fiberglass mesh on the whole wall with anti-crack mortar.
8. Installing electrical wires and switches	Setting lines on the places needing to be set with concealed wire and switch box, then cut a groove by hand-hold electric saw, filling with polymer mortar after installation
9. Installing doorcase	Preparing door and window holes on the installed wall, anchoraging by splint or lines.
10. Facing coating and wall papers	Scraping putty directly without plastering on the installed wall, then brushing coating and sticking wall paper
11. Facing ceramic tile,decorative sheet	Sticking ceramic tiles or other wood facing panels casually without plastering on installed wall.
12. Electric apparatus installation	Install lights, furniture, air-conditioners casually on installed room ,can be nailed or hanged

5 >. Features and Advantages of Precast Concrete Wall Panels:

Interior/Exterior Sandwich Panel	Fast construction	75-80m2/day three workman
	Sound insulation	46dB
	Space saving	Save 4.26m2 per 100 m2 area
	Anti-seismic	Class 7-8
	Fireproof	4 hours, under 1000 degree centigrade
	Eco-friendly	100% non-asbestos
	Hanging force	Single point hanging force 50kg, Embed hanging force 150kg
	Service Life	60-70years
