SGS All Automatic Concrete Lightweight Wall Sandwich Panel Production Line

Large Image : SGS All Automatic Concrete Lightweight Wall Sandwich Panel Production Line

Product Details:

Place of Origin:	Hubei, China
Brand Name:	Vanjoin
Certification:	CE, ISO, , BV, SASO
Model Number:	VJ-PM-YR05

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiation
Packaging Details:	standard export package
Delivery Time:	45-60 days after receiving deposit
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20 Sets Per Month

Detailed Product Description

Type:	Full Automation	Raw Material:	Cement, Sand Or Fly Ash, Eps Foam, Water, Addtivies, Etc
Production Capacity:	10,000m2-1,000,000m2 / Year	Usage:	Produce Sandwich Wall Panels
Advantages:	High Output, Less Worker Needed, Less Waste	Voltage:	220V, 380V
Lifespan:	Over 20 Years	After-sales Service Provided:	Engineers Available To Service Machinery Overseas

SGS All Automatic Concrete Lightweight Wall Sandwich Panel Production Line

1. Vanjoin Produced Sandwich Panel information:

The Raw materials are cement, sand, EPS (expendable polystyrene), compound admixture (our company has developed it with independent intellectual property rights, we will teach you to make it after you purchased our production line), calcium silicate board and water. You can also use other industrial waste material as filling material, such as fly ash, slag, tailings, etc. to bring down the cost and alleviate the industrial waste pollution at the same time. The filling material is non-essential. You can choose the local cheapest material as the filling material or don’t use any filing material, it doesn’t mater.

These raw materials are common and easy to get.

2. Outstanding Advantages:

1. Measuring precisely ensuring each panel is with exactly same materials and ratio

2. Easy maintenance by demounting the broken piece

3. Recycling use the eps foam& eco-friendly

4. Taking good use of local resources: sand

5. Fully closed working ensuring clear factory with less pollution

3. Raw Materials Storage / Measuring / Conveying System

Usde for sand, cement, water storage and measurement.

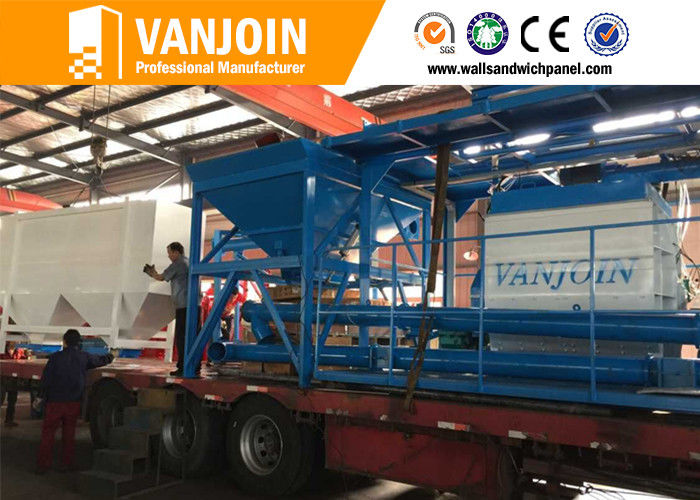

4. Mixing System:

This concrete mixing plant, through full automatic control system, can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials, and additives, etc.

Parameters:

Theoretical Productivity	2×35m³/h
Mixing Time	≤180s
Materials Measuring Accuracy	±1%
Sand Batching Period	≤10s
Sand delivering Speed	18m³/h
Water Supply Flow Speed	30m³/h
Cement Delivering Capacity	20t/h

5. Specificcation of panel production line:

annual output(m2)	quantity of moulding cars(set)	quantity of workers required	prodction area(m2)	stacking area(m2)
100,000	5	8-13	500	1000
200,000	8	10-18	600	2000
300,000	10	12-20	700	3000
400,000	11	15-23	800	4000
500,000	12	18-28	900	5000
600,000	13	22-32	1000	6000
700,000	14	25-35	1100	7000
800,000	15	28-38	1200	8000
900,000	16	32-42	1300	9000
1,000,000	17	35-46	1400	10000

6. Wall Panel Special Features:

Light weight	1 person can take up two pieces of vanjoin panel
Energy-saving, Eco-friendly	100% non-asbestos
Easy to install, fast construction	3 workers can finish a 70 m2 house just by 1 week
Strong and durable	Long life 60-70 years
Heat insulation and preservation	Thermal conductivity: 0.221W/mk
Sound insulation	42-46 DB
Weatherproof; windproof	70m/s; grade 13
Fireproof	keep well about 4 hours under 1000 degree temperature
Anti-impact, anti-earthquake	Grade 8
Best hanging strength	Single point hanging force is > 1200 N
Weight capacity	400KG / square meter
