Product Details:
Payment & Shipping Terms:
|
| Raw Material: | EPS, Sand/fly Ash, Cement, Additives | Specification(L*W*T): | 2270*610*60/75/90/100/120/150mm |
|---|---|---|---|
| Safety: | 100% Non-asbestos, Green, Eco-friendly | Raw Material: | Sand,cement,fly Ash,additive |
| Fireproof: | 240min (1000 Degree ) | Heat Resistance: | 80 C |
| Thermal Conductivity: | 0.221W/mK | Useful Life: | 70years |
Durability lightweight EPS Pracast Concrete Wall Panels Dampproof For Buildings
1. Description:

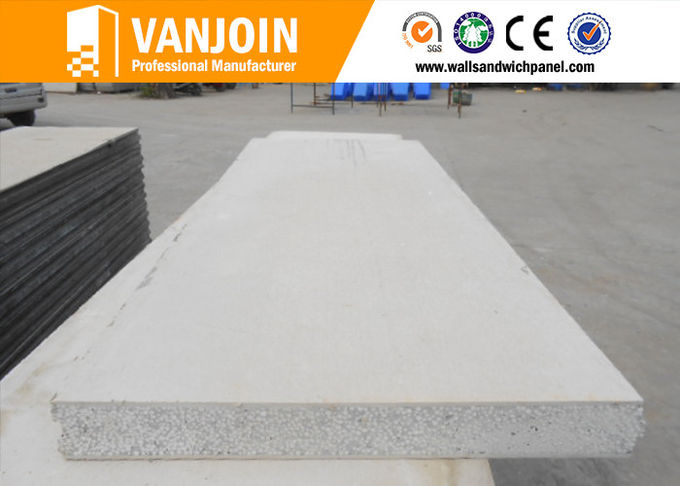

Lightweight EPS Cement Sandwich wall panel for board is a kind of light weight energy-saving green compound board material taking fiber reinforced calcium silicon board or cement calcium silicon board as panel, with cement ,EPS, fly ash as fillers and forming by one time compound .It can widely be applied to wall materials of various high and low building, such as: bank, office building, hospital,school, hotel, mall, amusement hall, active barrack, old house reconstruction, residence and workshop .
2. Composition of Composite Panel Board:
• Core materials: cement, EPS, sand and additives.
• Surface materials: fiber reinforced calcium silicate board or cement calcium silicate Board.
3. Panel Specification:
|
Name |
Size(L*W*T) |
Weight(KG) |
Packing(pcs/㎡ per 20") |
|
VJ light weight compound |
2270*610*60 |
45-48 |
315 pcs / 436 ㎡ |
|
2270*610*75 |
50-53 |
252 pcs / 349 ㎡ |
|
|
2270*610*90 |
55-58 |
207 pcs / 287 ㎡ |
|
|
2270*610*100 |
60-65 |
189 pcs / 262 ㎡ |
|
|
2270*610*120 |
65-75 |
153 pcs / 212 ㎡ |
|
|
2270*610*150 |
90-90 |
126 pcs / 175 ㎡ |
Remark: All kinds of panels can be customized by customers' specific requirement,
4. Application of EPS Wall Panel:
1) Floor System
Vanjoin light weight compound sandwich panel can be innovatively used as floor board. This system has the outstanding advantages such as high load-bearing capacity, anti-static electricity, friction resistance, high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation, no split, etc.
2) Roof System
This system not only solves the problem of roof leakage, but also has the advantages such as heat insulation, neat joint surface, high temperature resistance, etc.
3) Interior Partition System
With EXCELLENT fireproof, best hanging force, sound insulation, heat insulation, waterproof, easy installation and the like characteristics.

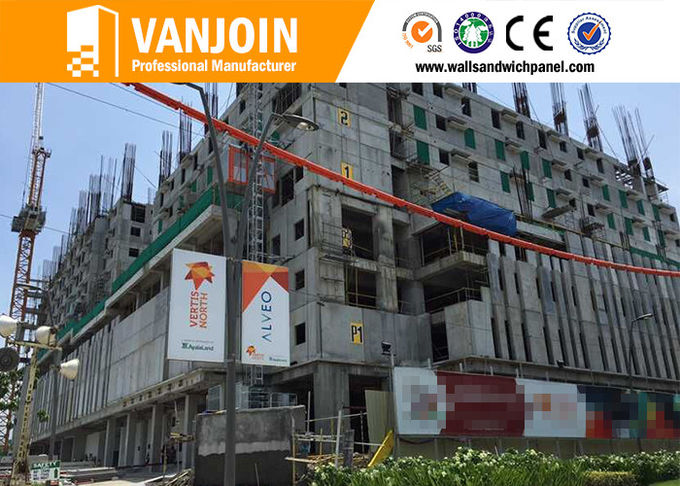

4) Interior & Exterior Wall System
Vanjoin lightweigh compound sandwich panel can automatically adjust indoor air and water content with the season and climate changes, which can keep the temperature at an invariable temperature level, and such ecology effect just goes with the tide of modern residential building. It is widely applied to various modular house, low buildings, apartment, villas, and city house, etc.
5. Advantages of VANJOIN Panel
1. Fast construction (25m2/day/person)
2. Windproof (65m/s)
3. Sound insulation(46dB)
4. Anti-impact, Anti-seismic (class: 8)
5. Waterproof, Fireproof (4 hours, under 1000 degree centigrade)
6. Light weight, Energy-saving
7. Eco-friendly green material
8. Save area, Easy installation
9. Heat insulation & preservation
10. Strong and durable, 60-70 years life span.
6. About US:
We are experienced in this field for 10 years;
We have a 40,000m2 factory, with 60000m2 sotcking area;
We are ranking Top 2 in China, and Top 1 in middle of China;
We are certificated with CE, , ISO9001, ISO14000, Invention Patent, STC tests, etc;
Our production capacity is 2,000,000m2/year;
Our average exports is over 400 containers/month;
Our main markets: Southeast Asia, Africa, Middle East, South America, Oceania, Europe, etc
