Product Details:
Payment & Shipping Terms:
|
| Features: | Fast Construction, Anti-earthquake, Light Weight, Save Space | Specification(L*W*T): | 2270*610*60/75/90/100/120/150mm |
|---|---|---|---|
| Service Life: | 60-70 Years | Advantages 1: | Lightweight , Eco-friendly |
| Usage: | Exterior Wall, Interior Wall, Roof, Floor | Face Board: | Calcium Silicon Board 5mm |
| Core Material: | EPS, Cement, Sand, Water, Additive, Etc | Fire Resistant: | 4 Hours Under 1000 Degree |
Foam precast concrete sandwich panels Heat Insulated 2 hours Fire Resistant
1. Composition
Face Board : Calcium Silicon Board
Core Material : Eps , Cement , Sand etc
2.Specification :
|
Name |
Size(L*W*T)mm |
Weight (kg/m2) |
Packing (pcs/m2 20’GP) |
Application |
|
EPS Cement sandwich wall panel
|
2270x610x60 |
45-48 |
315 pcs /436 m2 |
Roof, interior wall |
|
2270x610x75 |
50-53 |
252pcs / 349 m2 |
Interior wall |
|
|
2270x610x90 |
55-58 |
207pcs / 287 m2 |
Interior/exterior wall |
|
|
2270x610x100 |
60-65 |
189pcs / 262 m2 |
Interior/exterior wall |
|
|
2270x610x120 |
65-75 |
153pcs / 212 m2 |
Exterior wall |
|
|
2270x610x150 |
80-90 |
126pcs / 175 m2 |
Exterior wall |
3. Advantages of Vanjoin panel
1). Fast construction (25m2/day/person)
2). Windproof (75m/s)
3). Sound insulation(44dB)
4). Anti-impact, Anti-seismic (class: 8-13)
5). Waterproof, Fireproof (under 1000 degree centigrade for 240 minutes)
6). Light weight, Energy-saving
7). Eco-friendly green material
8). Save area, Easy installation
9). Heat insulation & preservation
10). Strong and durable, 60-70 years life span

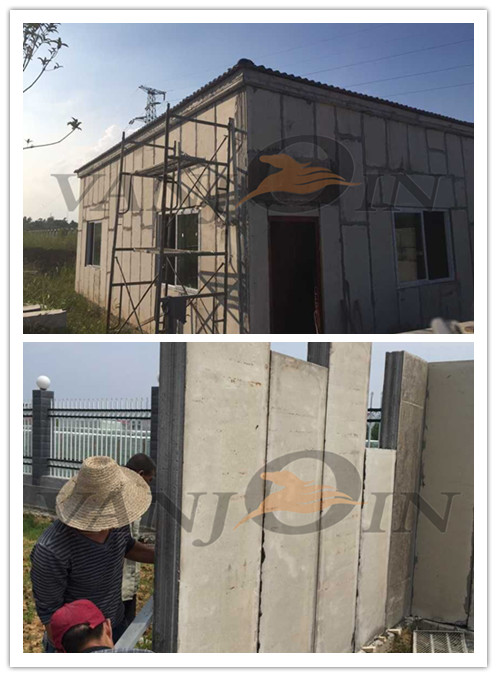

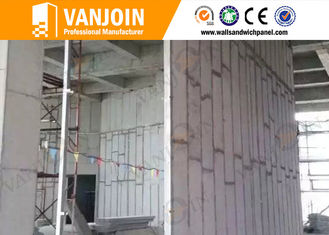

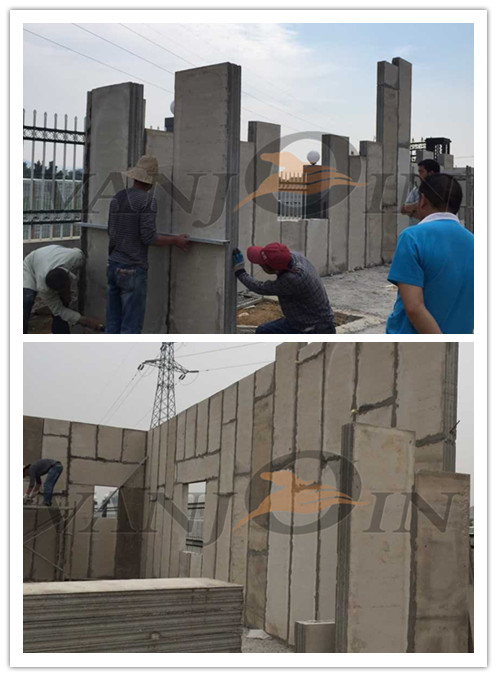

4. Application
|
Vanjoin Wall Panel can replace many construction materials |
Replacing such as red brick, clay solid brick, air brick; |
|
Apply to various high and low buildings such as bank, office building, hospital, school, hotel, supermarket, amusement hall, active barrack, old houses reconstruction, residence, and workshop, etc. |
|
|
Application |
Exterior & Interior wall system, Roof system, Floor system |

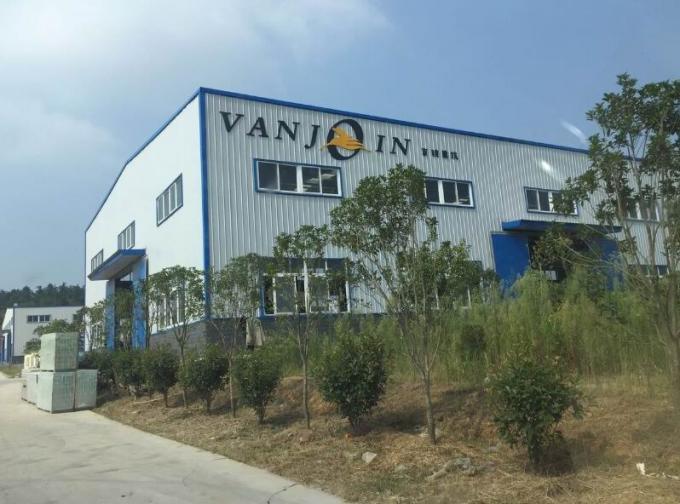

5. About Vanjoin
TOP 2 manufacturer of Eps Cement Wall Panel In China
Annual productivity of 2,000,000m2
Export more than 400 20ft every month
