Product Details:
Payment & Shipping Terms:
|
| Face Board: | 5mm Calcium Silicate Board | Core Materials: | EPS, Cement, Sand, Additives |
|---|---|---|---|
| Standard Length: | 2270mm | Standard Width: | 610mm |
| Standard Thickness: | 60mm, 75mm, 90mm, 100mm, 120mm, 150mm | Application: | Interior Wall, Exterior Wall, Flooring, Roofing |
| Sound Insulation: | 46dB | Construction Efficiency: | 3 Workers Can Install 80m2 Per Day |
| Eco-friendly: | 100% No Asbestos | Wind Proof: | 75m/s, 270km/h |

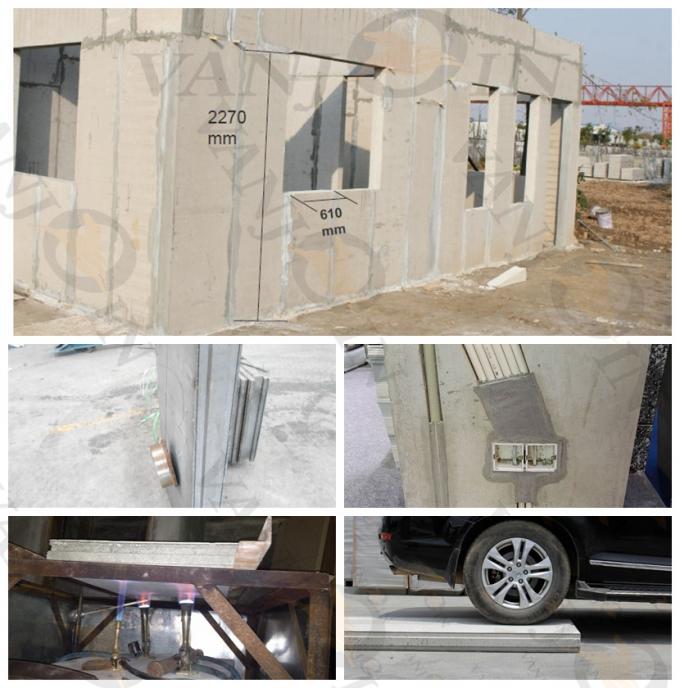

Prefabricated Houses 100mm Concrete EPS Composite Sandwich Wall Panel
1. Specification of EPS Panel
|
Name |
Size(L*W*T)MM |
Weight(KG) |
Loading(PCS/M2 per 20ft) |
|
Fast Installation Composite Panel Board Durable Sandwich Wall Panel |
2270*610*60 |
45-48 |
315 pcs / 436 |
|
2270*610*75 |
50-53 |
252 pcs / 349 |
|
|
2270*610*90 |
55-58 |
207 pcs / 287 |
|
|
2270*610*100 |
60-65 |
189 pcs / 262 |
|
|
2270*610*120 |
65-75 |
153 pcs / 212 |
|
|
2270*610*150 |
90-90 |
126 pcs / 175 |
2. Advantages
| Lightweight | 1 person can carry panel easily |
| Eco-friendly | 100% non-asbestos |
| Fast Construction | 3 workers can install 60-80m2 per day |
| Strong,Durable and Long Lifespan | 70 years |
| Sound Insulation | 42-46 dB |
| Windproof | 65m/s |
| Fireproof | 4 hours |
| Anti-earthquake | Grade 8-9 |
| Best hanging force | Single point hanging force is 50kg |
| Weight capacity |
650KG / square meter |
3. Installation Process
1). Setting the line and carring the board in position
2). Sawing board
3). Sizing, sizing cement mortar on the side of panels
4). Installation, carry panel, correct panel and fix panel
5). Correcting and fixing
6). Grouting and filling starch
7). Sticking fiberglass mesh
8). installing electricity wire and switches
9). Installing doorcase
10). Facing coating and wall papers
11). Facing flexible soft ceramic tile
12). Electric apparatus installation
4. RFQ
Q1 : How many years your company to produce this kind of wall panel ?
A: More than 8 years of manufacturing eps cement sandwich wall panels , now we are the largest manufacture in middle of China , and among TOP 3 in China in this field .
Q2 : Main market of Vanjoin ?
A: Main market : Asia , South Amercia , Africa
South East Asia is our largest market ,Mid East is our second largest market
Q3 : Exporting details :
A: loading & shipping 400 20ft every month

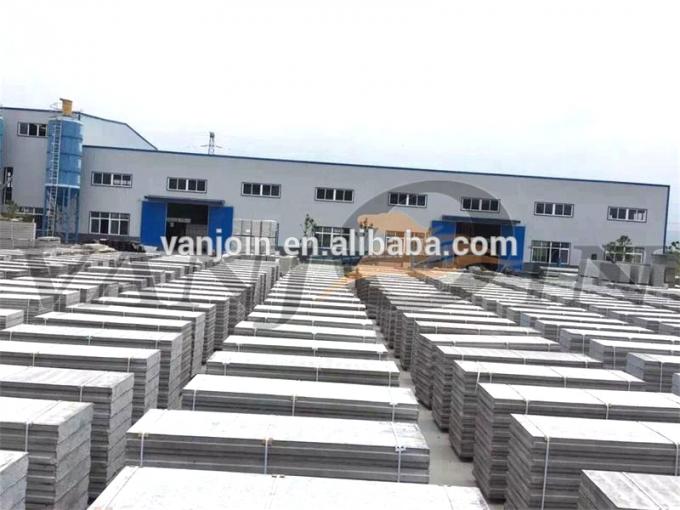

Q4 : More information of Vanjoin factory ?
A: Land area : 30,000m2 Machines : Fully automatic production line
Productivity : 2,000,000m2 wall panel every year
Q5 : How could I get the samples ?
A: We send you the free wall panel samples , brochures & installation cd etc, you pay for the freight charges .
If you get the TNT , DHL , UPS , Fedex account , that is the best .
If not , you can transfer money to our West Union account , then we send you samples by Vanjoin account .
Q6 : Certificate of Vanjoin
A: We get CE , ISO , BV , SGS certificate for our product
We get other wall panel performance testing report , such as fireproof , sound insulation , waterproof , heat insulation certificates etc .
Q7 : How to installation the wall lpanels ?
A: You can watch the installation video on our website or send an enquiry.
