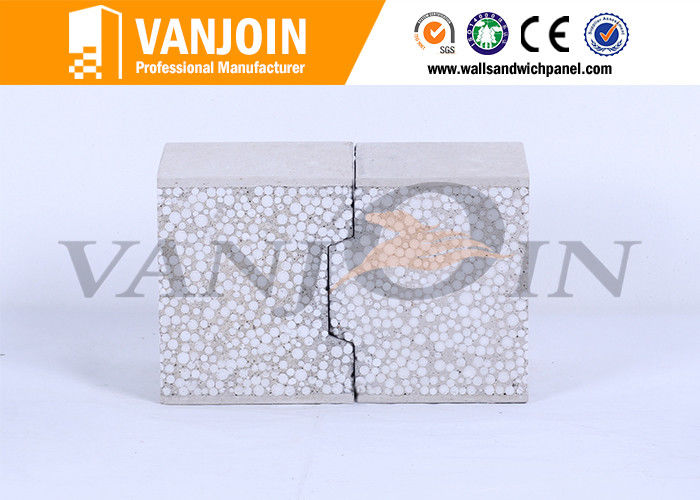

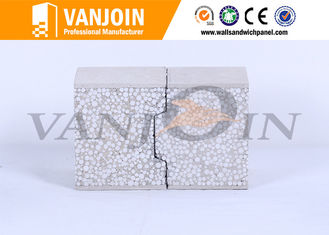

Earthquake Proof EPS Cement Sandwich Panel , Ceramicite Cement Sandwich Panel

Large Image : Earthquake Proof EPS Cement Sandwich Panel , Ceramicite Cement Sandwich Panel

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	VJ-WPE-C07H

Payment & Shipping Terms:

Minimum Order Quantity:	300 Square Maters
Price:	negotiation
Packaging Details:	1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time:	7~15 working days after receive payments
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	200000 Square Meters Per Month

Detailed Product Description

Product Name:	Fire Resistance 100% Non Asbestos Eps Cement Sandwich Panel	Dimension:	2270*610mm
Thickness:	60mm, 75mm, 90mm, 100mm, 120mm, 150mm	Sound Proofing:	38-46dB
Windproof:	70m/s	Fire Resistance:	More Than 120 Minutes
Applications:	Shopping Mall, Villa, Bungalows, Apartment, Warehouse, Etc.	Density:	650 - 850kg/m³

Earthquake Proof EPS Cement Sandwich Panel , Ceramicite Cement Sandwich Panel

Vanjoin EPS cement sandwich panel is mainly used for walls, replacing traditional red brick, clay solid brick, air brick, color-coated steel sandwich board, gypsum block, wire spatial grid structured perlite board, perlite porous board, etc.

Three main kinds of sandwich wall panels:

1) Eps sandwich panel: eps, cement, sand, water, additives, calcium silicate board.

2) Ceramicite Sandwich panel: ceramicite, cement, sand, water, additives, calcium silicate board.

3) Eps & Ceramicite sandwich panel: ceramicite, eps, cement, sand, water, additives, calcium silicate board.

Advantages:

※ Most energy-saving, light weight, environmental protection

The capacity is 650kg/m³, just sixth of the brick building

※ Most Area-saving

In comparison of the inner wall panel 75mm abd 120mm, every 12m will increase practical area,

for the 100㎡ house, it will increase 4.26㎡.

※ Most waterproof and dampproof

Because of the special featuresof the solid panel, the feature of waterproof and dampproof is very

obvious. The experiment shows that without any waterproof facing, build one pool with our products,

and fill it with water, the back of the wall can keep dry without ant blot.When in damp weather, there

isn't any condensation wate.

※ Most fire-proof

Under 1000 degree centigrade for 240 minutes, there isn't damage to the wall.

※ Most sound-insulation

46dB-50dB sound-insulation effect, accord with the national standard GBJ121-88.

※ Best hanging strength

Expansion bol can be installed in random part of the wall, the point hanging force can reach more

than 50kg(50-70kg). With other Pre-embedded material in the panel, the strength can reach 150kg.

※ Most anti-seismic and inpact resistance

Earthquake resistant level: M8.0

※ Most civilized, environmental, high efficiency construction

Simple construction and transportation, stacking health, dry operation, no sludge, low loss, less

waste, construction convenient, no bricklaying plastering, shorten the construction period,

lotted fast, easy to install water and electricity pipeline. The construction efficiency is 8-10 times

of the normal masonry, it's a kind of high-quality reusable wall.

Certificates:

CE, , BV, ISO900, ISO14000, Patent Invention, STC test, fireproof test, etc. certificated.

Thicknesses available:

Specification (mm)	Weight (kg/m2)	Packing (pcs and m2 per 20' FCL)	Suggested Application
2270x610x60	45~48	315pcs, 436m2	Roof
2270x610x75	50~53	252pcs, 349m2	Interior wall
2270x610x90	55~58	207pcs, 287m2	Interior / Exterior wall
2270x610x100	60~65	189pcs, 262m2	Interior / Exterior wall
2270x610x120	65~75	153pcs, 212m2	Exterior wall
2270x610x150	80~90	126pcs, 175m2	Exterior wall

Technical Parameters:

	Item	National Standards			Testing Indexes
	Item	60mm	90mm	120mm	60mm	90mm	120mm
1	Anti-impact Capacity/times	≥5	≥5	≥5	≥8	≥10	≥15
2	Anti-bending damage load/times over deadweight	≥1.5	≥1.5	≥1.5	≥3	≥4	≥5
3	Compressive strength /Mpa	≥3.5	≥3.5	≥3.5	≥5	≥5	≥5
4	Softening coefficient	≥0.80	≥0.80	≥0.80	≥1	≥1	≥1
5	Surface density g/m2	≤70	≤90	≤110	≤55	≤70	≤85
6	Moisture rate a/%	≤12/10/8			≤10/9/7
7	Drying shrinkage value /mm/m	≤0.6	≤0.6	≤0.6	≤0.45	≤.0.5	≤0.5
8	Hanging Force/N	≥1000	≥1000	≥1000	≥1200	≥1300	≥1500
9	Sound insulation capacity in the air /Db	≥30	≥35	≥40	≥35	≥40	≥45
10	Fire proof limit /h	≥1	≥1	≥1	≥2.5	≥3	≥4
11	Heat transfer coefficient w/m2.k			≤1.0			≤1.0
12	Radioactivity Limit	≤1	≤1	≤1	≤1	≤1	≤1
13	IRa (Inner radiation indexes)	≤1	≤1	≤1	≤1	≤1	≤1
14	Ir (Outer radiation indexes)	≤1	≤1	≤1	≤1	≤1	≤1
