Light weight EPS Cement Sandwich Panel / concrete wall board For Prefab House

Large Image : Light weight EPS Cement Sandwich Panel / concrete wall board For Prefab House

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	VJWP-YRR67

Payment & Shipping Terms:

Minimum Order Quantity:	1X20GP Container
Price:	negotiation
Packaging Details:	1. Free packing ( with normal pallet and normal packing belt ) 2. Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time:	7~10 working days after receive payments
Payment Terms:	L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability:	200000 Square Meters per Mont

Detailed Product Description

Product Name:	EPS Cement Sandwich Panel	Specification(LWT):	227061060/75/90/100/120/150mm
Raw Materials:	Eps, Sand, Cement, Fly Ash, Water, Additive, Etc	Usage:	Partition Wall ,exterior Wall,roof And Floor
Fireproof:	Under 1000 Degree For 4 Hours	Sound Insulation:	40~56 DB
Anchorage Load:	50kg	Service Life:	More Than 70 Years

Light weight EPS Cement Sandwich Panel / concrete wall board For Prefab House

Free sampls can provided

1. EPS Cement Sandwich Panel Composition:

Double sides surface boards, (calcium silicate boards);
Lightweight Sandwich core material:
Eps beads, (expandable polystyrene foam);
Cement;
Sand;
Vanjoin patented additive

2.EPS Cement Sandwich Panel Specification

Name	Specification (mm)	Weight (kg/m2)	Packing (pcs and m2 per 20' FCL)
VJ Light Weight Compound Sandwich Panel	2270x610x60	45~48	315pcs, 436m2
	2270x610x75	50~53	252pcs, 349m2
	2270x610x90	55~58	207pcs, 287m2
	2270x610x100	60~65	189pcs, 262m2
	2270x610x120	65~75	153pcs, 212m2
	2270x610x150	80~90	126pcs, 175m2

Light weight EPS Cement Sandwich Panel / concrete wall board For Prefab House
3. EPS Cement Sandwich Panel Advantage:

Energy-saving, light weight, environment-friendly
Area-saving
Waterproof and damp proof
Fire-proof
Sound-insulation
Best hanging force
Anti-seismic and impact resistance
Largest Span and height thin webbed wall
Most civilized, healthy and high efficient construction

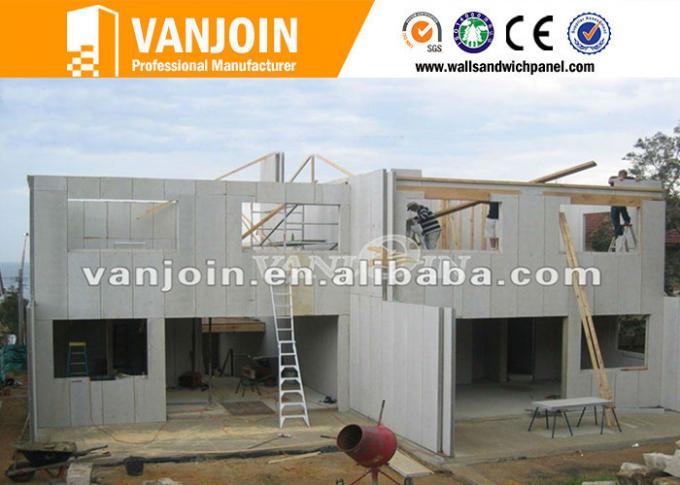

4. EPS Cement Sandwich Panel Application:

Vanjoin Wall Panel can replace

many construction materials

Replacing such as red brick, clay solid brick, air brick;

Apply to various high and low buildings such as bank, office building,

hospital, school, hotel, supermarket, amusement hall, active barrack,

old houses reconstruction, residence, and workshop, etc.

Application

Exterior & Interior wall system, Roof system, Floor system

Light weight EPS Cement Sandwich Panel / concrete wall board For Prefab House
Electricity and Waterpipe Installation:

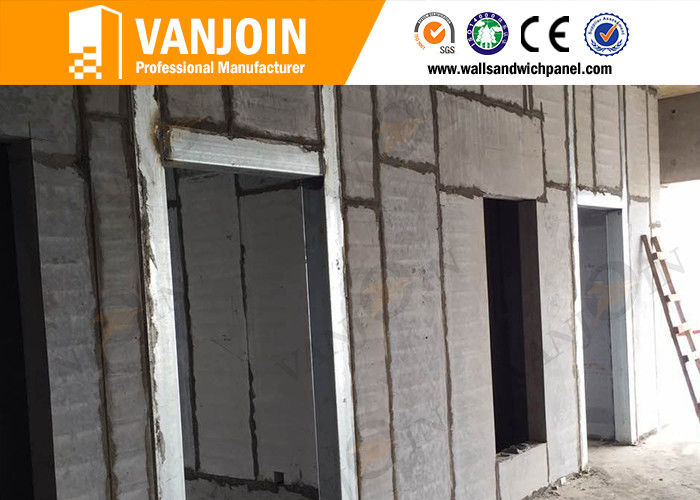

5. EPS Cement Sandwich Panel Installation
Setting the line and carrying the board in position;
Sawing board basing on requirement;
Sizing cement on tenon side of two boards;
Carrying the board prepared to be installed to the installation place, correcting the wall board by gavelock and making it close tightly;
Grouting and filling starch;
Sticking fiber glass mesh;
Apply putty powder and level up;
Finished.
6. EPS Cement Sandwich Panel Supplied to:

Iran, Russia, Australia, India, Dubai, South Africa and so on.
Light weight EPS Cement Sandwich Panel / concrete wall board For Prefab House

7. Vanjoin Company Information
1)Vanjoin is a proffesional manufacturer of EPS cement sandwich wall panel for 10 years.
2) We have a 40,000m2 factory, with 60000m2 stocking area;
3) We produce sandwich panel, sandwich panel making machine, soft ceramic tiles and soft ceramic tiles making machine
4) We are certificated with CE, , ISO9001, ISO14000, Invention Patent, STC tests, etc;
5) Our production capacity is 6,000,000m2/year; Our average exports is over 800 containers/month;
6). Certificate : ISO, SGC, PATENT, BV, CE, TEST REPORT, ect.
