Product Details:
Payment & Shipping Terms:
|
| Specification(L*W*T): | 2270*610*60/75/90/100/120/150mm | Surface Pane: | Alicium Silicon Board |
|---|---|---|---|
| Core Material: | EPS, Cement, Sand, Water, Additive, Etc | Product Name: | Insulated Eps Cement Sandwich Panel Energy Saving Waterproof For High Building |
| Advantages: | Waterproof,Sound Insulation, Heat Insulation Panel | Fireproof: | Under 1000 Degree For 4 Hours Without Damage To The Wall |
| Service Life: | 60-70 Years | Anti-earthquake: | Class 8 |
| Soundproof Performance: | 46dB | Advantages 2: | Lightweight , Eco-friendly |
Insulated Energy Saving eps sandwich wall panel Waterproof For High Building
Composition:
Core Materials: Cement, EPS, and Fly Ash or Sand core
Surface Materials: Calcium Silicon Board , Mgo Board , Fiber Cement Board etc
Specification(Length*Width*Thickness) ,Application & Loading details
Length *Width *Thickness ( 2270---3000)mm*610mm*(60,75,90,100,120,150,180mm)
|
Specification ( Length *Width*Thikcness ) |
Loading on 20ft (pcs/m2) |
Usage of Different Thickness |
| 2270mm*610mm*60mm | 315pcs / 436 m2 | Internal wall & Roof |
| 2270mmx610mmx75mm | 252pcs/ 349 m2 | Internal wall |
| 2270mmx610mmx90mm | 207pcs/ 287 m2 | |
| 2270mmx610mmx100mm | 189pcs/ 262 m2 | Internal & External wall |
| 2270mmx610mmx120mm | 153pcs/ 212 m2 | External wall |
| 2270mmx610mmx150mm | 126pcs/ 175m2 |
Characteristic:
1). Fast construction (25m2/day/person)
2). Windproof (75m/s)
3). Sound insulation(44dB)
4). Anti-impact, Anti-seismic (class: 8-13)
5). Waterproof, Fireproof (under 1000 degree centigrade for 240 minutes)
6). Light weight, Energy-saving
7). Eco-friendly green material
8). Save area, Easy installation
9). Heat insulation & preservation
10). Strong and durable, 60-70 years life span
Application of EPS Wall Panel:
1) Floor System
Vanjoin light weight compound sandwich panel can be innovatively used as floor board. This system
has the
outstanding advantages such as high load-bearing capacity, anti-static electricity, friction resistance,
high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation,
no split, etc.
2) Roof System
This system not only solves the problem of roof leakage, but also has the advantages such as heat
insulation,
neat joint surface, high temperature resistance, etc.

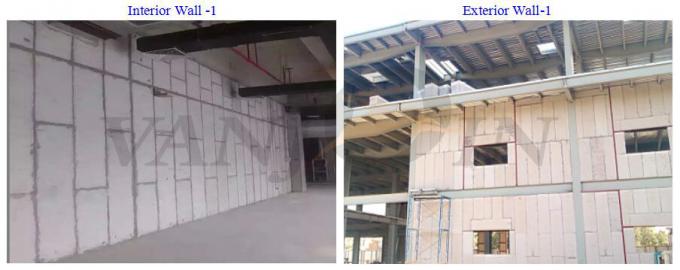

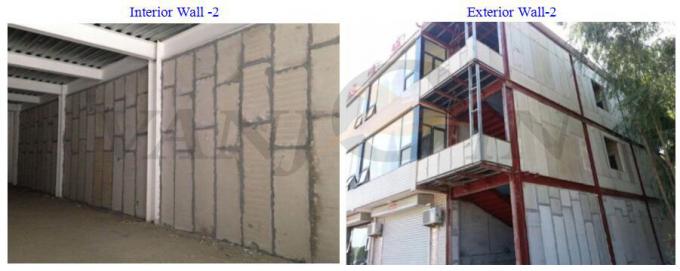

3) Interior Partition System
With EXCELLENT fireproof, best hanging force, sound insulation, heat insulation, waterproof, easy
installation
and the like characteristics.
4) Exterior Wall System
About Vanjoin:
We are experienced in this field for 10 years;
We have a 40,000m2 factory, with 60000m2 sotcking area;
We are ranking Top 2 in China, and Top 1 in middle of China;
We are certificated with CE, , ISO9001, ISO14000, Invention Patent, STC tests, etc;
Our production capacity is 2,000,000m2/year;
Our average exports is over 400 containers/month;
Our main markets: Southeast Asia, Africa, Middle East, South America, Oceania, Europe, etc.

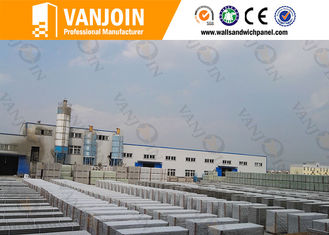

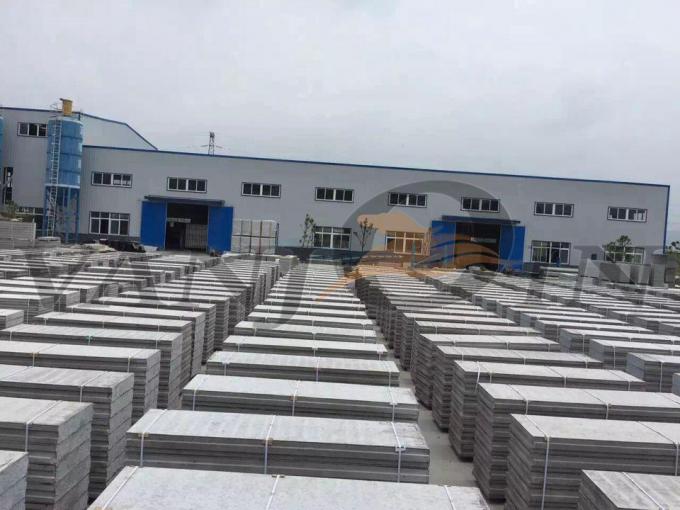

Vanjoin Factory :
