MCM Decorative Composite Panel Board , Insulated Wall Panels for House Project

Large Image : MCM Decorative Composite Panel Board , Insulated Wall Panels for House Project

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	VJ-WP-LX012 Composite Panel Board

Payment & Shipping Terms:

Minimum Order Quantity:	300㎡
Price:	negotiation
Packaging Details:	Standard Exporting Packing( (wrapped with plastic thin film,wedge protect and good pallet) )
Delivery Time:	7-15 days after getting advanced payment
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	4,000,000㎡ per year

Detailed Product Description

Types:	Nometal Composite Panel Board	Application:	Interior And Exterior Wall, Fence, Roof And Floor
Thickness:	60, 75, 90, 100, 120, 150mm	Sound Insulation:	38dB-46dB
Non-combustibility:	Grade A, BS EN ISO1182:2002	Waterproof:	Good
Light Weight:	1/6 Of Traditional Brick	Fireproof:	4 Hours FRP
Anti-seismic:	7-8 Class	Heat Insulated:	Good
Fast Consruction:	50-80 ㎡/day	Capacity:	650kg/m3

MCM Decorative Composite Panel Board , Insulated Wall Panels for House Project

Vanjoin lightweight composite EPS cement panel board is a kind of energy saving light weight building material. It is a new economic construction material, which can apply to high and low rise building as well as villas, warehouse, apartment, school, shopping mall, hospital, hotels, KTV, etc.

1. Composition of MCM Decorative Composite Panel Board, Insulated Wall Panels
Vanjoin composite cement board consists of two parts:
Surface board: 5mm Calcium Silicon Board
Filler: EPS / Ceramsite / Perlite, Cement, Sand or fly ash, Addictives and ect.

2. Application of MCM Decorative Composite Panel Board , Insulated Wall Panels

Our EPS Cement Sandwich Panels are widely used as 5 systems:

1. interior partition wall

2. exterior wall

3. roof system

4. floor system

5. Fence

3. Specification of MCM Decorative Composite Panel Board , Insulated Wall Panels

Product Name	Specification (mm)	Weight (kg/m2)	Packing (pcs/㎡ per 20GP)	Application
Vanjoin light weight energy-saving compound sandwich panels	2270x610x60	45~48	315pcs/436㎡	Roof
	2270x610x75	50~53	252pcs/349㎡	Interior wall
	2270x610x90	55~58	207pcs/287㎡	Interior/Exterior wall
	2210x610x100	60~65	189pcs/262㎡	Interior/Exterior wall
	2210x610x120	65~75	153pcs/212㎡	Exterior wall
	2210x610x150	80~90	126pcs/175㎡	Exterior wall
	2210x610x180	95~105	99pcs/138㎡	Exterior wall
	Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm

Remark: All kinds of EPS sandwich wall panel can be customized by customers' specific requirements,
such as density and length of panels.

4. Outstanding Features of MCM Decorative Composite Panel Board , Insulated Wall Panels

1) Light weight: 1/6 of traditional wall;
2) Space saving: Save 4.26m2 per 100 m2 area;
3) Water-proof, wind-proof;
4) Fireproof: 240 mins of 1000 degree fire;
5) Sound insulation 38dB-46dB, heat insulation;
6) High strength, anti-impact;
7) Anti-seismic: Class 7-8;
8) Great hanging force: Single point hanging force 50kg, Embed hanging force 150kg;
9) Fast construction: 8-10 times of traditional wall;
10) Easy decoration: convenient for pipeline embeded;
11) Eco-friendly: 100% non-asbestos
12) Recyclable and long life span: 60-70 years service life. ect.

5. Packing Size & Details of MCM Decorative Composite Panel Board , Insulated Wall Panels

1) Free packing: with normal pallet and packing belt
2) Standard exporting packing: wrapped with plastic thin film,wedge protect and good pallet
3) Packing size: 1500-3000*610*1000mm
4) Loading: 18 pallets per 20' container

6. Vanjoin Company Information
1)Vanjoin is a proffesional manufacturer of EPS composite sandwich board for 10 years.
2) We have a 40,000m2 factory, with 60000m2 stocking area;
3) We produce sandwich panel, sandwich panel making machine, soft ceramic tiles and soft ceramic tiles making machine
4) We are certificated with CE, , ISO9001, ISO14000, Invention Patent, STC tests, etc;
5) Our production capacity is 4,000,000m2/year; Our average exports is over 600 containers/month;
6) Our main markets: Southeast Asia, Africa, Middle East, South America, Oceania, Europe, etc.
7). Certificate : ISO, SGC, PATENT, BV, CE, TEST REPORT, ect.

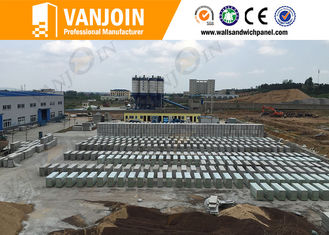

7. Photos of Vanjoin Composite Panel Board Factory
