Environmental Composite Panel Board / Lightweight Sandwich Soundproof Wall Panels

Large Image : Environmental Composite Panel Board / Lightweight Sandwich Soundproof Wall Panels

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	VJ-WP-AY010

Payment & Shipping Terms:

Minimum Order Quantity:	300m2
Price:	negotiation
Packaging Details:	Standard Exporting Pallet Packing
Delivery Time:	7 work days
Payment Terms:	T/T, L/C
Supply Ability:	200,000m2 per month

Detailed Product Description

Panel Type:	Composite Panel	Eco-friendly:	Non-asbestos
Windproof:	65m/s	Fireproof:	4 Hours
Soundproof:	46dB	Usage:	Interior Wall, Exterior Wall
Thickness Range:	60mm - 150mm	Application:	Various Houses And Buildings

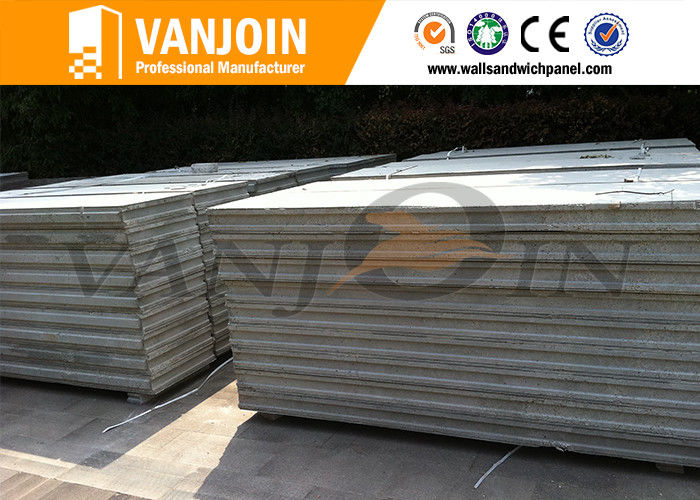

Environmental Composite Panel Board / Lightweight Sandwich Soundproof Wall Panels

1. Specification and Weight and Loading Information

Name	Size(LWT)MM	Weight(KG)	Loading(PCS/M2 per 20ft)
Fast Installation Composite Panel Board Durable Sandwich Wall Panel	227061060	45-48	315 pcs / 436
	227061075	50-53	252 pcs / 349
	227061090	55-58	207 pcs / 287
	2270610100	60-65	189 pcs / 262
	2270610120	65-75	153 pcs / 212
	2270610150	90-90	126 pcs / 175

2. Installation Accessories

Cement mortar, connecting wall panels

Steel bar, fix wall panels

Fiberglass mesh, base layer for wall anti-cracking

Anti-crack mortar, basic adhesive for wall anti-cracking

3. Installation Process

1). Setting the line and carring the board in position

2). Sawing board

3). Sizing, sizing cement mortar on the side of panels

4). Installation, carry panel, correct panel and fix panel

5). Correcting and fixing

6). Grouting and filling starch

7). Sticking fiberglass mesh

8). installing electricity wire and switches

9). Installing doorcase

10). Facing coating and wall papers

11). Facing flexible soft ceramic tile

12). Electric apparatus installation

3. Advantages

Lightweight	1 person can carry panel easily
Eco-friendly	100% non-asbestos
Fast Construction	3 workers can install 60-80m2 per day
Strong,Durable and Long Lifespan	70 years
Sound Insulation	42-46 dB
Windproof	65m/s
Fireproof	4 hours
Anti-earthquake	Grade 8-9
Best hanging force	Single point hanging force is 50kg
Weight capacity	650KG / square meter

4. Performance

Flexural Strength(longitudianal)	4.27 MPa
Flexural Strength(transverse)	4118N
Moisture Movement	0.06%
Moisture Content	9%
Resistance to continuous heating	80 °c
Surface Alkalinity	pH 7-10
Non-combustibility(face Boards)	BS EN ISO 1182: 2002 BS476: Part 4 GB8624-1997, Grade A
Heat of combustion(face boards)	BS EN ISO 1716: 2002
Building regulations classification(face boars)	Euro Class A1
Fire rated partition	2 hour FRP BS EN 1364-1 BS 476: Part 22 GB/T9978
Water tightness to ASTM C1185	No droplets observed behind the panel, Test of 24 hours at 250 mm water head
Partition stiffness-heavy duty grade (BS 5234; Part2: 1992, Annex A)	Pass
Resistance to substructure damage by multiple impacts from a large soft body -heavy duty grade( BS 5234; Part2: 1992, Annex E)	No collapse of dislocation
Surface damage by hard body impact- heavy duty grade (BS 5234; Part2: 1992, Annex B)	Pass
Effects of door slamming-heavy duty grade BS 5234; Part2: 1992, Annex B	Pass
resistance to crowd pressure-heavy duty grade BS 5234; Part2: 1992, Annex G	No collapse of damage
Resistance to anchorage(high level wall cupboard) eccentric downward BS 5234; Part2: 1992, Annex K	No damage or detachment of anchor
Anchorage Load	45 kg
Acoustic performance - 60 mm thick - 75 mm thick - 100 mm thick - 120 mm thick - 150 mm thick	38 dB 40 dB 42 dB 44 dB 46 dB
