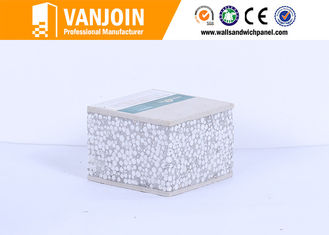

High rise Building Exterior Wall Cladding EPS Cement Sandwich Panel Fireproof 46dB

Large Image : High rise Building Exterior Wall Cladding EPS Cement Sandwich Panel Fireproof 46dB

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	WP-1-101R

Payment & Shipping Terms:

Minimum Order Quantity:	Two 20GP
Price:	negotiation
Packaging Details:	Standard exporting packing (wrapped with plastic thin film, edge protect and good pallet)
Delivery Time:	15 working days after received the payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	200,000 sqm per month

Detailed Product Description

Product Name:	Eco-friendly EPS Cement Sandwich Panel High-rise Building Exterior Wall Cladding	Fireproof:	Grade A
Waterproof:	Excellent	Eco-friendly:	Asbestos Free
Light Weight:	1/6 Of Other Materials	Soundproof:	Excellent, 46dB

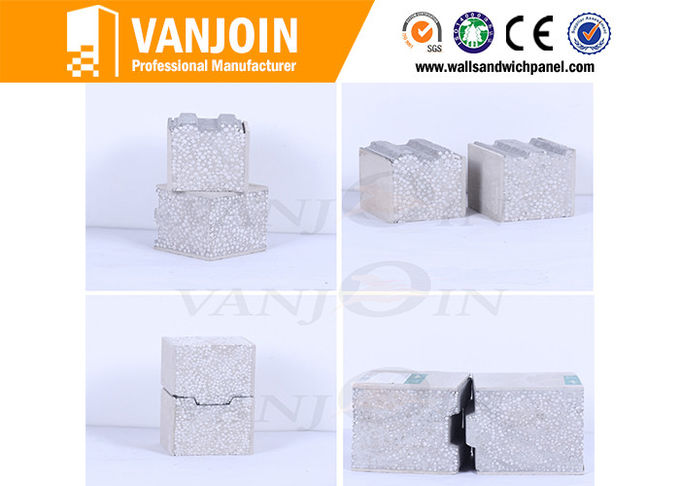

Joint Type:	Tongue And Groove, Interlock	Usage:	Interior Wall, Exterior Wall, Prefab House, High-rise Building, Villa

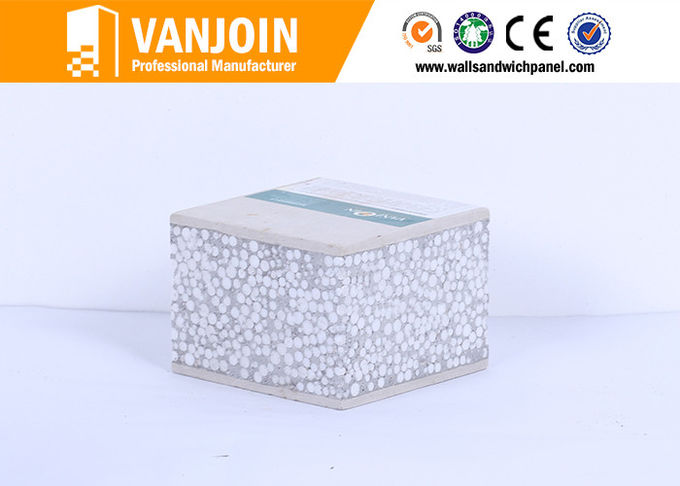

Eco-friendly EPS Cement Sandwich Panel High-rise Building Exterior Wall Cladding

1. Introduction

Vanjoin eps cement sandwich wall cladding is composited by double sides surface boards, Sandwich core material are Eps beads, (expandable polystyrene foam); Cement; Sand; Vanjoin patented additive.

After using Vanjoin patented additive, the eps beads can joint with the cement and sand, as well as the face boards tightly. Then the claddings can connect with each other and structures as a whole wall.

2. Specification

Length * Width * Thichness (mm)

2270*610*60

2270*610*75

2270*610*90

2270*610*100

2270*610*120

2270*610*150

Other size can be customized as per your requirements.

3.Features

Name	Features
Light weight	Capacity 650kg/m3, 1/6 of traditional wall with same volume
Space saving	Save 4.26m2 per 100 m2
Waterproof	Excellent
Fireproof	A Grade,4 hours 1000 degree fire
Sound Insulation	46dB, soundproof, sound absorption
Hanging force	Single point hanging force 50kg while embed hanging force can exceed 150kg
Windproof	75m/s; 270km/h
Anti-seismic	Class 8, anti earthquake
Anti-impact	High strength, 1.5 times of traditional wall
Fast construction	8~10 times of traditional wall, easy decoration
Eco-friendly	100% no asbestos, asbestos free
Service Life	60-70 years life span

4. Performance

Vanjoin Panels Performance
Thermal conductivity(BS 874: Part 2: 1986)	0.221 W/mK
Flexural Strength(longitudianal)	4.27 MPa
Flexural Strength(transverse)	4118N
Moisture Movement	0.06%
Moisture Content	9%
Resistance to continuous heating	80 °c
Surface Alkalinity	pH 7-10
Non-combustibility(face Boards)	BS EN ISO 1182: 2002 BS476: Part 4 GB8624-1997, Grade A
Heat of combustion(face boards)	BS EN ISO 1716: 2002
Building regulations classification(face boars)	Euro Class A1
Fire rated partition	2 hour FRP BS EN 1364-1 BS 476: Part 22 GB/T9978
Water tightness to ASTM C1185	No droplets observed behind the panel, Test of 24 hours at 250 mm water head
Partition stiffness-heavy duty grade (BS 5234; Part2: 1992, Annex A)	Pass
Resistance to substructure damage by multiple impacts from a large soft body -heavy duty grade( BS 5234; Part2: 1992, Annex E)	No collapse of dislocation
Surface damage by hard body impact- heavy duty grade (BS 5234; Part2: 1992, Annex B)	Pass
Effects of door slamming-heavy duty grade BS 5234; Part2: 1992, Annex B	Pass
resistance to crowd pressure-heavy duty grade BS 5234; Part2: 1992, Annex G	No collapse of damage
Resistance to anchorage(high level wall cupboard) eccentric downward BS 5234; Part2: 1992, Annex K	No damage or detachment of anchor
Anchorage Load	45 kg
Acoustic performance - 60 mm thick - 75 mm thick - 100 mm thick - 120 mm thick - 150 mm thick	38 dB 40 dB 42 dB 44 dB 46 dB

High rise Building Exterior Wall Cladding EPS Cement Sandwich Panel Fireproof 46dB
5. Installation
Setting the line and carrying the board in position;

Sawing board basing on requirement;

Sizing cement on tenon side of two boards;

Carrying the board prepared to be installed to the installation place, correcting the wall board by gavelock and making it close tightly;

Grouting and filling starch;

Sticking fiber glass mesh;

Apply putty powder and level up;

Finished.

6. Packing and Shipping

	Specification (LWT)(mm)	Weight (kg/m2)	Packing (pcs/m2 per 20’GP)	Application
Vanjoin EPS Cement Wall Cladding	227061060	45~48	315pcs/436m2	Roof system
	227061075	50~53	252pcs/349m2	Floor system
	227061090	55~58	207pcs/287m2	Interior/Exterior wall
	2270610100	60~65	189pcs/262m2	Interior/Exterior wall
	2270610120	65~75	153pcs/212m2	Exterior wall
	2270610150	80~90	126pcs/175m2	Exterior wall

7. Application:

Eps cement sandwich wall cladding can be widely used as interior wall, exterior wall, prefab house, high-rise building, villa, etc.

Business Organizations	supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.
Financial Organizations	Banks, negotiable securities, funds, insurance companies, pawnshops; Non-profit Organizations: Telecommunications, post offices, hospital, schools;
Public Places	subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums,museums, convention centers, ticket agencies, HR market, lottery centers; Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms;
Entertainments	Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course
