Product Details:
Payment & Shipping Terms:
|
| Product Name: | EPS Cement Sandwich Panel | Application: | Building Walls |
|---|---|---|---|
| Core Material: | EPS, Sand, Cement, Water, Additives | Construction Speed: | 75-80M2 / Day |
| Fireproof: | A Level | Anchorage Load: | 45 KG |
| Anti-earthquake: | Class 8 | Acoustic Performance: | 38-46dB |
Nonmetal Fire Rated EPS Cement Sandwich Panel With No Asbestos
Product Introduction:
Vanjoin EPS Cement Sandwich Panel are made from a non-toxic light weight core of Portland cement and expanded Polystyrene beads sandwiched between two Calcium Silicate boards. The Calcium Silicate boards used in the production are fire rated, thermal rated, water vapor resistance with excellent values.
Advantages:
1 . Light weight: 1/6 of traditional wall ;
2 . Space saving: save 4.26 m2 per 100m2 area;
3 . Waterproof, windproof;
4 . Fireproof: Under 1000℃ for 240 minutes;
5 . Sound insulation, Heat insulation;
6 . High strength, Anti-impact;
7 . Anti-seismic: Class7-8;
8 . Great hanging force: Single point hanging force 50KG, Embed hanging force 150KG;
9 . Fast construction: 8-10 times of traditional wall;
10 . Easy decoration: convenient for pipeline embedded;
11 . Eco-friendly: 100% non-asbestos
12 . Recyclable and long life span: 60-70 years service life, etc.
Specifications:
| 2270*610*60mm | 315pcs /436m2 |
| 2270*610*75mm | 252pcs/349m2 |
| 2270*610*90mm | 207pcs/287m2 |
| 2270*610*100mm | 189pcs/262m2 |
| 2270*610*120mm | 153pcs/212m2 |
| 2270*610*150mm | 135pcs/187m2 |
Index Datas:
|
Flexural Strength(Longitudinal) |
4.27MPa |
|
Flexural Strength(Transverse) |
4118N |
|
Moisture Content |
9% |
|
Moisture Movement |
0.06% |
|
Resistance to Continuous Heating |
80°C |
|
Surface Alkalinity |
pH 7-10 |
|
Non-combustibility(face board) |
BS EN ISO 1182: 2002 BS476: Part 4 GB8624-1997, Grade A |
|
Heat of Combustion(Face Board) |
BS EN ISO 1716: 2002 |
|
Building Regulations Classification(face board) |
Eur0 Class A1 |
|
Fire Rated Partition |
4 hour FRP BS EN 1364-1 BS 476: Part 22 GB/T9978 |
|
Water Tightness to ASTM c1185 |
No droplets observed behind the panel, Test of 24 hours at 250mm water head |
Application:
For interior and exterior wall partition on steel or concrete structure building, new construction or renovations. It can replace construction materials such as block, wire spatial grid structure perlite board, perlite porous board and etc. It can widely be applied to wall materials of various high and low buildings such as bank, office building, hospital, school, hotel, mall, amusement, old house reconstruction, residence and workshop.

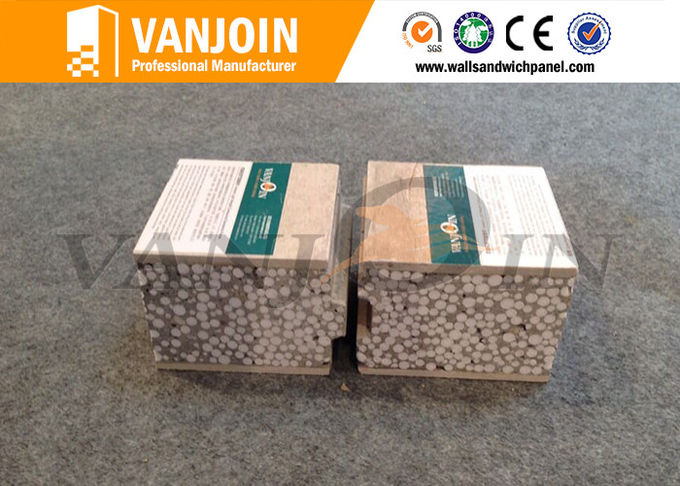

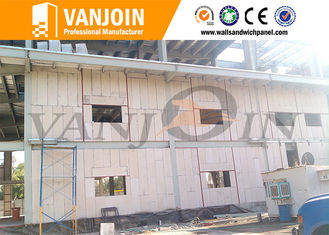

EPS Cement Sandwich Panel Photo:
