Expandable Polystyrene EPS Composite Wall Panels High Strength

Large Image : Expandable Polystyrene EPS Composite Wall Panels High Strength

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	VJWP-YRR11

Payment & Shipping Terms:

Minimum Order Quantity:	300 Square Meter
Price:	negotiation
Packaging Details:	Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time:	7~10 working days after receive deposit
Payment Terms:	L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability:	200000 Square Meters per Month

Detailed Product Description

Raw Material:	EPS, Sand/fly Ash, Cement, Additives	Specification(LWT):	227061060/75/90/100/120/150mm
Safety:	100% Non-asbestos, Green, Eco-friendly	Application:	Inside Wall, Outside Wall, Roofing
Fireproof:	240min (1000 Degree )	Sound Insulation:	46dB
Anti-earthquake:	Class 8-13	Useful Life:	70years

Eco-friendly Expandable Polystyrene EPS Composite Panel Board High Strength

1. Composition:

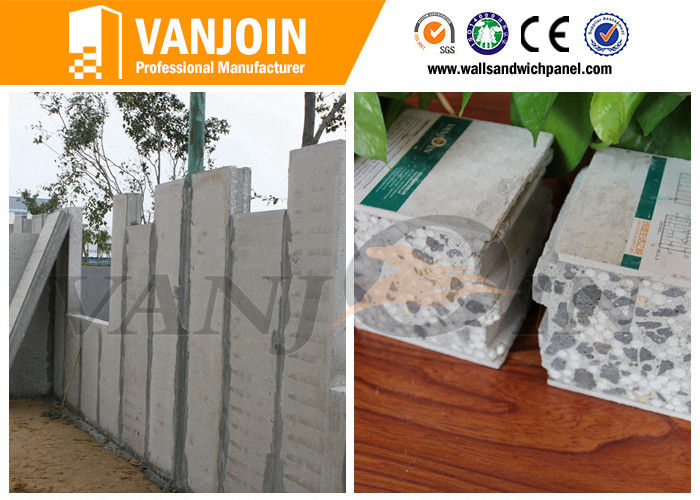

Core materials: cement, EPS, and fly ash core. Surface materials: fiber reinforced calcium silicone board or cement calcium silicone board.

2. Specification:

Name	Size(LWT)mm	Weight (kg/m2)	Packing(pcs/m2 20’GP)	Application
EPS Cement sandwich wall panel	2270x610x60	45-48	315 pcs /436 m2	Roof, interior wall
	2270x610x75	50-53	252pcs / 349 m2	Interior wall
	2270x610x90	55-58	207pcs / 287 m2	Interior/exterior wall
	2270x610x100	60-65	189pcs / 262 m2	Interior/exterior wall
	2270x610x120	65-75	153pcs / 212 m2	Exterior wall
	2270x610x150	80-90	126pcs / 175 m2	Exterior wall

3. Usage:

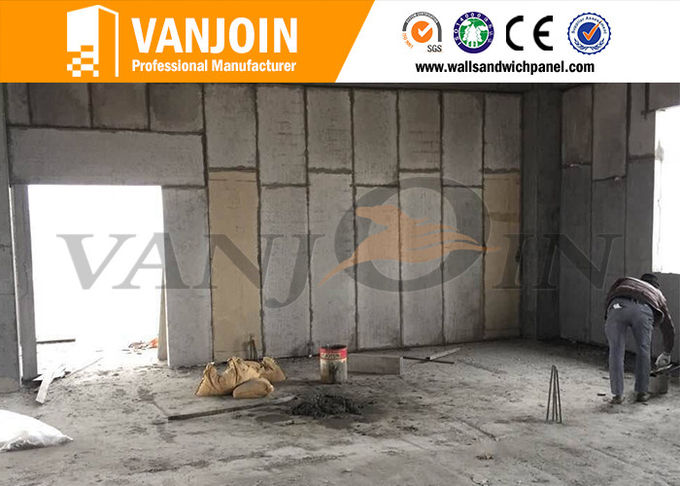

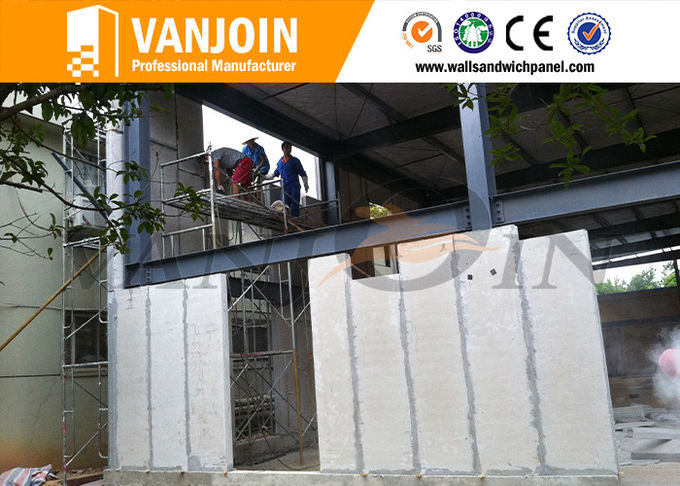

Interior and exterior partition on steel or concrete structure building, For new construction, additions or renovations.

4. Key Specifications/Special Features:

Light weight	One sixth of the brick walls
Energy-saving, Eco-friendly	100% non-asbestos, no pollution
Strong and durable	Long life time 60-70 years
Heat insulation and preservation	Thermal conductivity: 0.0856 W/m2.k
Sound insulation	42-46 DB, (brick wall only 35dB)
Fireproof	The panel can keep well gor 4 hours under 1000 degree temperature
Weatherproof; windproof	65m/s
Anti-impact, anti-earthquake	Grade 8
Best hanging strength	Single point hanging force is over 70kg, 150kg with embedded cement
Weight capacity	400KG / square meter
Fast Installation	25m2/person/day
High efficiency Construction	Construction efficiency: 8 times of traditional brick (block) walls
Area-saving	Every 100m2 house, 4.26m2 will be increased.

5. Supply Markets:

Iran, Kazakstan, Russia, Australia, India, Dubai, South Africa, Spain, Maldives, Egypt and so on.

6. About Us:
We are 10 years production and trading experience.
40,000m2 factory area, 60000m2 stacking area.
Top 1 manufacturer in Middle of China
2,000,000m2 annual production capacity
Over 400 containers export volum per month
More than 50 countries market area
