Product Details:
Payment & Shipping Terms:
|
| Product Name: | Cement Sandwich Panel | Specification(L*W*T): | 2270*610*60/75/90/100/120/150mm |
|---|---|---|---|
| Safety: | 100% Non-asbestos, Green, Eco-friendly | Raw Material: | Sand,cement,fly Ash,additive |
| Fireproof: | 240min (1000 Degree ) | Anchorage Load: | 50 Kgs |
| Anti-wind: | 13 Degree | Usage: | Interior Partition ,exterior ,roof And Floor |

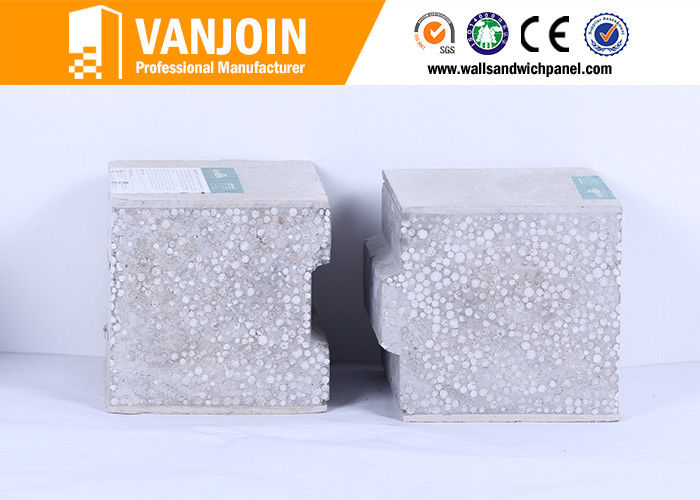

Non-Asbestos Soundproof EPS Cement Sandwich Panel , High Strength Panel
Green Raw Materials:
- Surface: calcium silicate board
- Core: eps, cement, sand, water, additives,etc.
Panel Specification:
|
Name |
Size(L*W*T) |
Weight(KG) |
Packing(pcs/㎡ per 20") |
|
VJ light weight compound |
2270*610*60 |
45-48 |
315 pcs / 436 ㎡ |
|
2270*610*75 |
50-53 |
252 pcs / 349 ㎡ |
|
|
2270*610*90 |
55-58 |
207 pcs / 287 ㎡ |
|
|
2270*610*100 |
60-65 |
189 pcs / 262 ㎡ |
|
|
2270*610*120 |
65-75 |
153 pcs / 212 ㎡ |
|
|
2270*610*150 |
90-90 |
126 pcs / 175 ㎡ |
Remark: All kinds of panels can be customized by customers' specific requirement,
Features and Advantages of EPS Cement Wall Panel:
1. Fast construction (25m2/day/person)
2. Windproof (65m/s)
3. Sound insulation(46dB)
4. Anti-impact, Anti-seismic (class: 8)
5. Waterproof, Fireproof (4 hours, under 1000 degree centigrade)
6. Light weight, Energy-saving
7. Eco-friendly green material
8. Save area, Easy installation
9. Heat insulation & preservation
10. Strong and durable, 60-70 years life span.
Application of EPS Wall Panel:
- Floor System
Vanjoin light weight compound sandwich panel can be innovatively used as floor board. This system has the outstanding advantages such as high load-bearing capacity, anti-static electricity, friction resistance, high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation, no split, etc.
- Roof System
This system not only solves the problem of roof leakage, but also has the advantages such as heat insulation, neat joint surface, high temperature resistance, etc.
- Interior Partition System
With EXCELLENT fireproof, best hanging force, sound insulation, heat insulation, waterproof, easy installation and the like characteristics.

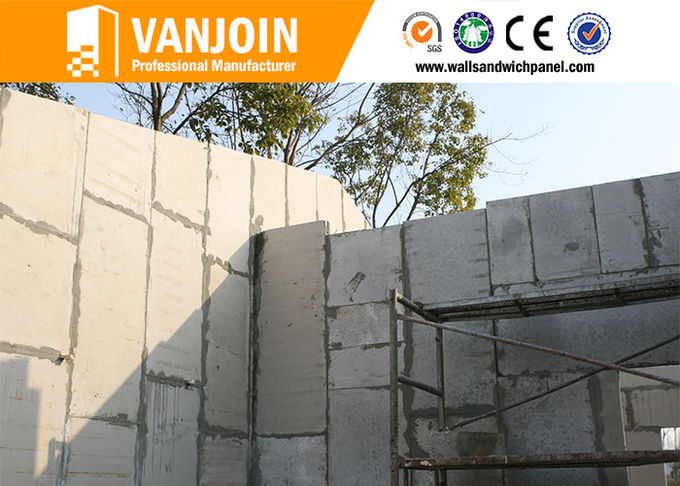

- Interior & Exterior Wall System
Vanjoin lightweigh compound sandwich panel can automatically adjust indoor air and water content with the season and climate changes, which can keep the temperature at an invariable temperature level, and such ecology effect just goes with the tide of modern residential building. It is widely applied to various modular house, low buildings, apartment, villas, and city house, etc.
Type Specification:
|
Different Types |
Different Panels |
|
Type 1 |
EPS cement sandwich panel |
|
Type 2 |
Solid eps cement sandwich panel |
|
Type 3 |
Ceramisite sandwich panel |
|
Type 4 |
Solid Ceramisite sandwich panel |
|
Type 5 |
Perlite sandwich panel |
|
Type 6 |
Solid perlite sandwich panel |
|
Type 7 |
Eps & Ceramicite Sandwich Panel |
|
Type 8 |
Solid Eps & Ceramicite Sandwich Panel |
