Product Details:
Payment & Shipping Terms:
|
| Panel Material: | Nonmetal | Fireproof: | 240 Minutes – Class A |
|---|---|---|---|
| Hanging Force: | More Than 50KG | Usage: | Exterior Wall, Interior Wall, Roof, Floor |
| Face Board: | Calcium Silicon Board 5mm | Sound Insulation Performance: | 38~46dB |
| Certification: | ISO/BV/CE/ | Feathures: | Waterproof , Lightweight ,Energy Saving |
| Anti-earthquake: | 8-13 Grade |
Buildings Insulated Fiber Cement Board EPS Cement Sandwich Panel from China
1.Different Types of Wall Panels :
1. EPS cement sandwich panel
2. Solid eps cement sandwich panel
3. Ceramisite sandwich panel
4. Solid Ceramisite sandwich panel
5. Perlite sandwich panel
6. Solid perlite sandwich panel
7. Eps & Ceramicite Sandwich Panel
8. Solid Eps & Ceramicite Sandwich Panel
2.Vanjoin Lightweight Wall Panel Specification & Loading Details :
Length *Width *Thickness ( 2270---3000)mm*610mm*(60,75,90,100,120,150,180mm)
| Name | Size(L*W*T) | Weight(KG) | Packing(pcs/㎡ per 20") |
|
VJ light weight compound |
2270mm*610mm*60mm | 45-48 | 315 pcs / 436 ㎡ |
| 2270mm*610mm*75mm | 50-53 | 252 pcs / 349 ㎡ | |
| 2270mm*610mm*90mm | 55-58 | 207 pcs / 287 ㎡ | |
| 2270mm*610mm*100mm | 60-65 | 189 pcs / 262 ㎡ | |
| 2270mm*610mm*120mm | 65-75 | 153 pcs / 212 ㎡ | |
| 2270mm*610mm*150mm | 90-90 | 126 pcs / 175 ㎡ |
3. Advantages of wall Panel
| Light weight | 1 person can take up two pieces of Vanjoin panel |
| Energy-saving, Eco-friendly | 100% non-asbestos |
| Easy to install, fast construction | 3 workers can finish a 70 m2 house just by 1 week |
| Strong and durable | Long life 60-70 years |
| Heat insulation and preservation | Thermal conductivity: 0.221W/mk |
| Sound insulation | 42-46 DB |
| Weatherproof; windproof | 70m/s; grade 13 |
| Fireproof | The panel can keep well about 4 hours under 1000 degree temperature |
| Anti-impact, anti-earthquake | Grade 8 |
| Best hanging strength | Single point hanging force is > 1200 N |
| Weight capacity |
600KG / square meter |

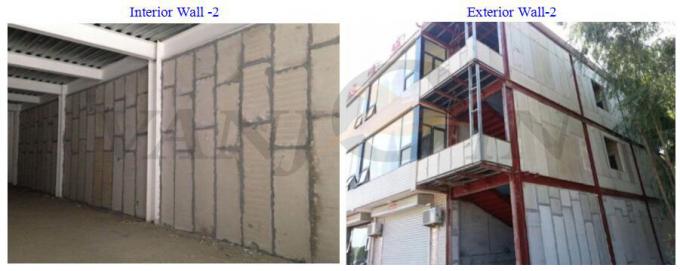

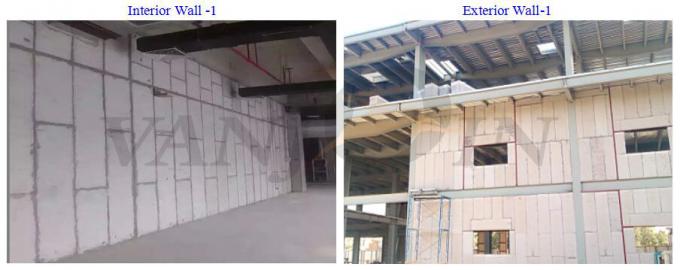

4. Application : Mainly for interior wall & exterior Wall
5. RFQ
Q: How long is your cargo ready?
A: Usually about two weeks after receipt deposit.
Q: Can you offer sample for testing?
A: Of course, we can offer free small sample at your required thickness.
Q: Do you have any certificates or qualifications?
A: Yes. We have passed CE & ISO9001, and also have many test reports, the fireproof performance of our sandwich panel is more than 4 hours in the heat of 1000℃.
Q: What are the disadvantages of your sandwich panel?
A: Our panel is non-load bearing wall panel, so when build several floors or high-rise buildings, must combine with steel structure or concrete structure.
Q: When the time goes by. whether the panel might damage due to the climate change and whether it can be harmed by insects?
A: Our panel will not be damaged due to the climate change, and also will not be harmed by insects. But for more than 2 storey or high-rise building, this panel need to combine with steel structures or concrete structures. And lifespan is about 50~70 years.
Q: How would you guaranty the quality of your products and would like to know whether a warranty is available for the products we are to order?
A: The physical property of this panel will not be changed with the time goes by, generally speaking, it maybe damaged during transport or improper use or man-made damage.
Q: Whether the panel might access easily to fix nails or to drill without any damage to the panel or the EPS - Cementmixture?
A: Yes, this panel can be easily fixed by steel bar, and can be cut by electric saw at any size freely.
Q: What is your recommendation on usage (for what kind of a construction each panel can be used in accordance with the thickness)?
A: Usually, we suggest to use 50-100mm panels for interior wall partition, 120-200mm for exterior wall.
Q: What is the thickness of calcium silicate board independently?
A: The thickness of calcium silicate board is 4.5mm on each side, so total thickness is 9mm.
