Product Details:
Payment & Shipping Terms:
|
| Type: | EPS Sandwich Wall Panels | Panel Material: | Nonmetal |
|---|---|---|---|
| Surface Panel Material: | Calcium Silicate Board | Core Material: | EPS, Cement, Sand, Water, Additive, Etc |
| Use Life: | 70 Years | Hight Speed: | 40 M2/day One Person |
| Anchorage Load: | 45 Kg |

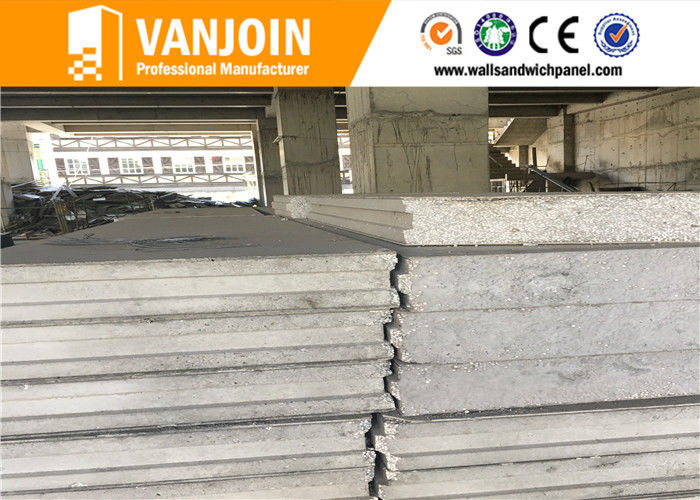

Prefabricated Stable Polystyrene Composite Panel For Real Estate Project In Malaysia
Vanjoin lightweight EPS sandwich composite panel board is a kind of energy saving light
weight compound board. It can replace construction materials like red brick, clay solid brick, air brick,
color-coated steel sandwich wall board, gypsum block, wire spatial grid structure perlite board and
perlite porous board. This kind of composite panel board can be used as interior wall, exterior wall,
roof, floor and fence.
1. Composition:
Core materials: cement, EPS, and fly ash core.
Surface materials: fiber reinforced calcium silicone board or cement calcium silicone board.
2. Specification: (L*W*T)
1500-3000mm X 610mm X (60, 75, 90, 100, 120,150,180mm)
3. Usage:
Interior and exterior partition on steel or concrete structure building,
For new construction, additions or renovations.
4. Advantages:
| | | | ||||
| Thickness | 60mm | 90mm | 120mm | 60mm | 90mm | 120mm |
1 | Anti-impact Capacity/times | ≥5 | ≥5 | ≥5 | ≥8 | ≥10 | ≥15 |
2 | Anti-bending damageload/times over deadweight | ≥1.5 | ≥1.5 | ≥1.5 | ≥3 | ≥4 | ≥5 |
3 | Compressive strength /Mpa | ≥3.5 | ≥3.5 | ≥3.5 | ≥5 | ≥5 | ≥5 |
4 | Softening coefficient | ≥0.80 | ≥0.80 | ≥0.80 | ≥1 | ≥1 | ≥1 |
5 | Surface density g/kg | ≤70 | ≤90 | ≤110 | ≤55 | ≤70 | ≤85 |
6 | Moisture rate a/% | ≤12/10/8 | ≤10/9/7 | ||||
7 | Drying shrinkage value /mm/m | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.45 | ≤.0.5 | ≤0.5 |
8 | Drying shrinkage value /mm/m | ≥1000 | ≥1000 | ≥1000 | ≥1200 | ≥1300 | ≥1500 |
9 | Sound insulation capacity in the air /Db | ≥30 | ≥35 | ≥40 | ≥35 | ≥40 | ≥45 |
10 | Fire proof limit /h | ≥1 | ≥1 | ≥1 | ≥2.5 | ≥3 | ≥4 |
11 | Heat transfer coefficient b/w/. |
|
| ≤1.0 |
|
| ≤1.0 |
12 | Radioactivity Limit | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
13 | IRa Inner radiation indexes | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
14 | Ir Outer radiation indexes | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
6. Application:
Can replace construction materials as red bricks, clay solid bricks, air bricks, color-coated steel sandwich boards, gypsum blocks, wire spatial grid structure perlite boards, and perlite porous board
Can widely be applied to wall materials of various high and low buildings such as banks, office buildings, hospitals, schools, hotels, malls, amusement halls, active barracks, old houses reconstruction, residences, and workshops.
