Product Details:
Payment & Shipping Terms:
|
Type: | Sandwich Panels Board | Panel Material: | Nonmetal |
---|---|---|---|
Usage: | Internal Wall , External Wall , Roof , Floor | Size: | 2270mm* 610mm * 60/75/90/100/120/150mm |
Core: | EPS, Cement, Sand, Additive | Weight: | 45-105 Kg ( Vary With Thickness) |
Wind Proof Economic Hot Sell Low Cost Prefabricated Homes By Sandwich Wall Panel
Application:

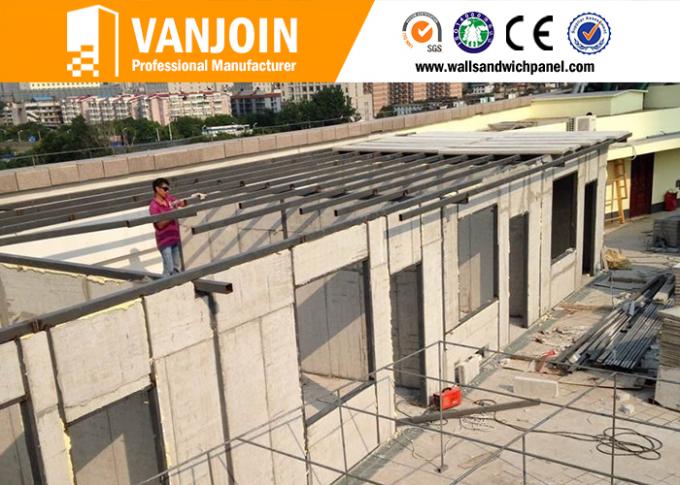

Eps cement sandwich wall siding can be widely used as interior wall, exterior wall, roof and floor, prefab house, high-rise building, villa, etc.
|
supermarket, large-scale shopping malls, exclusive agency, chain shops, |
|
Banks, negotiable securities, funds, insurance companies, pawnshops; |
|
subway, airports, stations, gas stations, toll stations, bookstores, parks, |
Entertainments |
Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, |
Composition:
EPS Concrete Sandwich Panel is a kind of light weight energy saving composite wall panel which takes calcium boardas face panel, with cement and EPS polystyrene grain as core and moulding by one time.They are widely used as interiorwall, exterior wall, floor, roof, etc
Specification:
Specification (L*W*T)(mm) |
Weight (kg/m2) |
Packing (pcs/m2 per 20’GP) |
Application | |
Vanjoin EPS Cement Wall Board |
2270*610*60 | 45~48 | 315pcs/436m2 | Roof system |
2270*610*75 | 50~53 | 252pcs/349m2 | Floor system | |
2270*610*90 | 55~58 | 207pcs/287m2 | Interior/Exterior wall | |
2270*610*100 | 60~65 | 189pcs/262m2 | Interior/Exterior wall | |
2270*610*120 | 65~75 | 153pcs/212m2 | Exterior wall | |
2270*610*150 | 80~90 | 126pcs/175m2 | Exterior wall |
Characteristic:
1). Fast construction (25m2/day/person)
2). Windproof (75m/s)
3). Sound insulation(44dB)
4). Anti-impact, Anti-seismic (class: 8-13)
5). Waterproof, Fireproof (under 1000 degree centigrade for 240 minutes)
6). Light weight, Energy-saving
7). Eco-friendly green material
8). Save area, Easy installation
9). Heat insulation & preservation
10). Strong and durable, 60-70 years life span

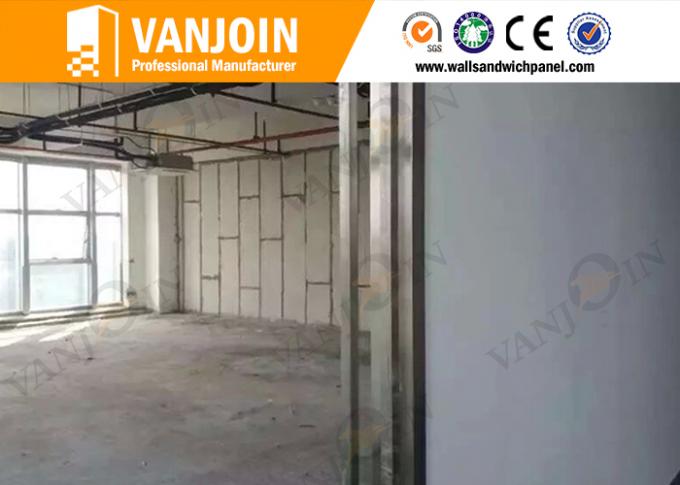

Use for interior and partition wall

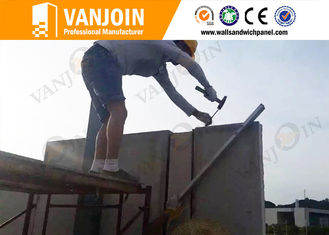

Use for exterior

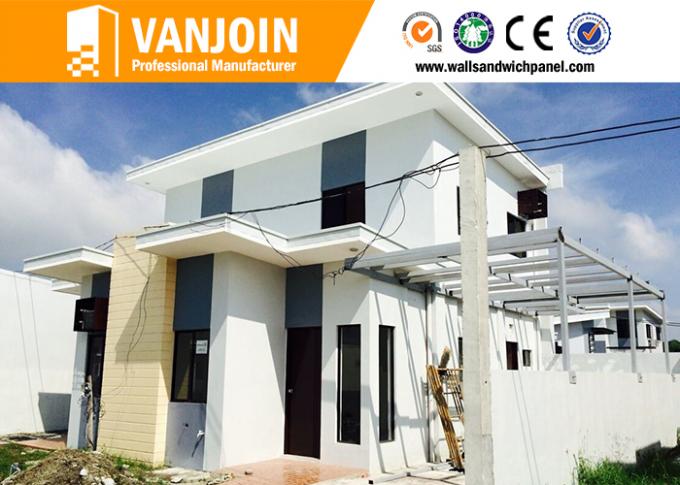

Finished prefab house
Supply to:
We have exported to Philippine Top 3 builders, Austrilia, Brazil, Sweden, India, Maldives, Singapore, brunei,Iran, Qatar, Iraq, Egypt, and so on.
