Product Details:
Payment & Shipping Terms:
|
| Types: | Nonmetal Sandwich Wall Panels | Application: | Interior And Exterior Wall, Roof And Floor |
|---|---|---|---|
| Thickness: | 60, 75, 90, 100, 120, 150mm | Sound Insulation: | 38dB-46dB |
| Non-combustibility: | Grade A, BS EN ISO1182:2002 | Waterproof: | Good |
| Light Weight: | 1/6 Of Traditional Brick | Fireproof: | 4 Hours FRP |
| Anti-seismic: | 7-8 Class | Heat Insulated: | Good |
Fireproof Building Material Precast Sandwich Wwall Panels Lightweight Anti - impact
Vanjoin lightweight EPS(expandable polystyrene beads) sandwich panels is a new kind of light
weight fireproof sound insulation fast construction easy decoration building materials.
This kind of sandwich wall panel can be widely applied to interior wall, exterior wall, roof,
floor and fence system for house,school, hotel, hospital, warehouse, shopping mall ect.
I. Composition of Vanjoin Sandwich Wall Panels
Sandwich Wall Panels take 5mm Calcium Silicon Board as surface panel, with EPS(expandable
polystyrene beads), Cement, Sand or fly ash as filler.
II. Main Features of Sandwich Wall Panels
1. Light weight: 1/6 of traditional brick
2. Fireproof: 4 hours 1000 degree; Grade A(GB/T9987)
3. Area-saving:save 4 m² per 100 m², if using our sandwich panel
4. Waterproof: Good waterproof perfermance
5. Sound-insulation:38dB-46dB, 38dB for 60mm thickness panel, 46dB for 150mm panel.
6. Fast and easy construction, Labor saving: two workers can install 50-80 m2/day.
7. Long life usage:70 years
III. Application of Sandwich Wall Panels
IV. Specification of Sandwich Wall Panels
| Length | Width | Thickness | Weight | Application |
|---|---|---|---|---|
| 2270mm | 610mm | 60mm | 45-48kg/m2 | Roof |
| 75mm | 50-53kg/m2 | Interior wall | ||
| 90mm | 55-58kg/m2 | Interior / Exterior wall | ||
| 100mm | 60-65kg/m2 | Interior / Exterior wall | ||
| 120mm | 65-75kg/m2 | Exterior wall | ||
| 150mm | 80-90kg/m2 | Exterior wall | ||
| Allowed Tolerance: Length±5mm; Width±2mm; Thickness±1mm; Diagonal±2mm | ||||
V. Packing Size & Details of EPS Composite Sandwich Wall Panels
| Length | Width | Thickness | Packing Size of 20' GP Container |
| 2270mm | 610mm | 60mm | 315pcs / 436㎡ |
| 75mm | 252pcs / 349㎡ | ||
| 90mm | 207pcs / 287㎡ | ||
| 100mm | 189pcs / 262㎡ | ||
| 120mm | 153pcs / 212㎡ | ||
| 150mm | 126pcs / 175㎡ | ||
| Packing Details | 1. Free packing | with normal pallet and packing belt | |
| 2. Standard exporting packing | wrapped with plastic thin film,wedge protect & good pallet | ||
| 3. Packing size: | 1500-3000*610*1000mm | ||
| 4. Loading | 18 pallets per 20' container | ||
VI. Photos of Sandwich Wall Panel Application

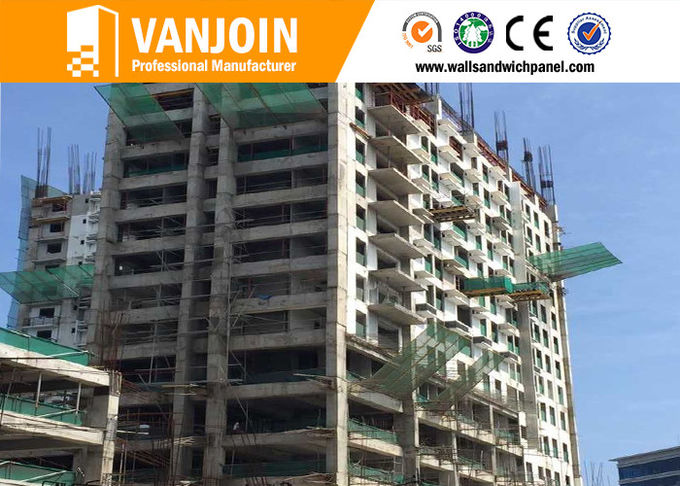

a. Sandwich Wall Panels for Exterior Wall

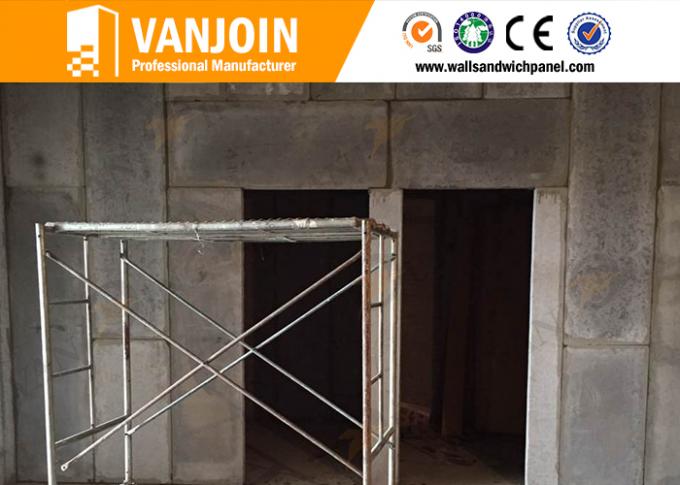

b. Sandwich Wall Panels for Interior Wall
C. Sandwich Wall Panels for Project
