Product Details:
Payment & Shipping Terms:
|
| Features: | Thermal Insulation, Sound Insulation | Face Board: | Calcium Silicate Board |
|---|---|---|---|
| Cor Materials: | EPS, Cement, Sand, Additives | Standard Thickness: | 60mm, 75mm, 90mm, 100mm, 120mm, 150mm |
| Application: | Low Houses And High Buildings | Sound Insulation: | 46dB |
| Lifespan: | 70 Years | Certificate: | CE, ISO, , BV, Patent |
| Usage: | Interior Wall, Exterior Wall, Flooring, Roofing |
CE Approved Exterior lightweight sandwich panels For Holiday Apartment
Brief Information
|
Type |
Sandwich wall panel |
|
Material |
Face boards are calcium silicate board, inner materials are eps foam, cement, sand, additives, etc. |
|
Size |
Standard length 2270mm, width 610mm, thickness 60mm,75mm,90mm,100mm,120mm,150mm. |
|
Application |
External and internal wall for various houses and buildings |
|
Joining Method |
Tongue & groove type |
|
Supply ability |
200,000m2 per month. |
|
Delivery time |
Usually 7 days after receiving prepayment. |
|
Payment terms |
T/T, L/C. |
|
Packing |
Exporting standard pallets |
|
Samples |
Free samples are available. |
|
Certificates |
CE,ISO,,BV, with test reports and patents |
Types
EPS cement sandwich wall panel (with face board and without face board)
Ceramiste sandwich wall panel (with face board and without face board)
Perlite sandwich wall panel (with face board and without face board)
Specification and Weight and Loading Information
|
Name |
Size(L*W*T)MM |
Weight(KG) |
Loading(PCS/M2 per 20ft) |
|
Fast Installation Composite Panel Board Durable Sandwich Wall Panel |
2270*610*60 |
45-48 |
315 pcs / 436 |
|
2270*610*75 |
50-53 |
252 pcs / 349 |
|
|
2270*610*90 |
55-58 |
207 pcs / 287 |
|
|
2270*610*100 |
60-65 |
189 pcs / 262 |
|
|
2270*610*120 |
65-75 |
153 pcs / 212 |
|
|
2270*610*150 |
90-90 |
126 pcs / 175 |
Strengths
|
Lightweight |
1 person can carry panel easily |
|
Eco-friendly |
100% non-asbestos |
|
Fast Construction |
3 workers can install 60-80m2 per day |
|
Strong,Durable and Long Lifespan |
70 years |
|
Sound Insulation |
42-46 dB |
|
Windproof |
65m/s |
|
Fireproof |
4 hours |
|
Anti-earthquake |
Grade 8-9 |
|
Best hanging force |
Single point hanging force is 50kg |
|
Weight capacity |
650KG / square meter |
Packing
Standard exporting packing
Wrapped with plastic thin film,polyethylene foamed sheet,edge protect,packing belt,solid pallets.
18 pallets in a 20'GP
Installation Process
1). Setting the line and carring the board in position
2). Sawing board
3). Sizing, sizing cement mortar on the side of panels
4). Installation, carry panel, correct panel and fix panel
5). Correcting and fixing
6). Grouting and filling starch
7). Sticking fiberglass mesh
8). installing electricity wire and switches
9). Installing doorcase
10). Facing coating and wall papers
11). Facing flexible soft ceramic tile
12). Electric apparatus installation

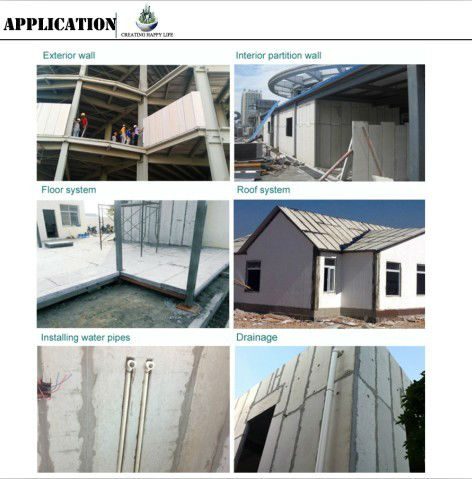

Application
Mainly for interior and exterior wall, and also can be used for roofing and flooring.
All kinds of low houses and high buildings are suitable to use the green prefab wall panel.
