Product Details:
Payment & Shipping Terms:
|
| Type: | Sandwich Wall Panels | Panel Material: | Nonmetal |
|---|---|---|---|
| Surface Panel Material: | Calcium Silicate Board | Core Material: | EPS, Cement, Sand, Water, Additive, Etc |
| Sound Insulation: | 46dB | Fireproof: | 240Minutes |
Sound Insulated EPS Cement Sandwich Wall Panels For Building Exterior / Interior Wall
1. Composition:
Core materials: cement, EPS, and fly ash core.
Surface materials: fiber reinforced calcium silicone board or cement calcium silicone board.
2. Specification: (L*W*T)
1500-3000mm X 610mm X (60, 75, 90,100, 120,150,180mm)
3. Usage:

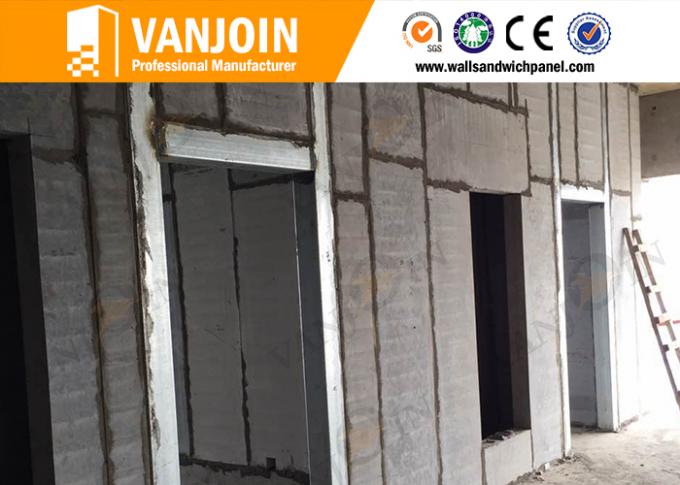

Interior and exterior partition on steel or concrete structure building,
For new construction, additions or renovations.
4. Advantages:

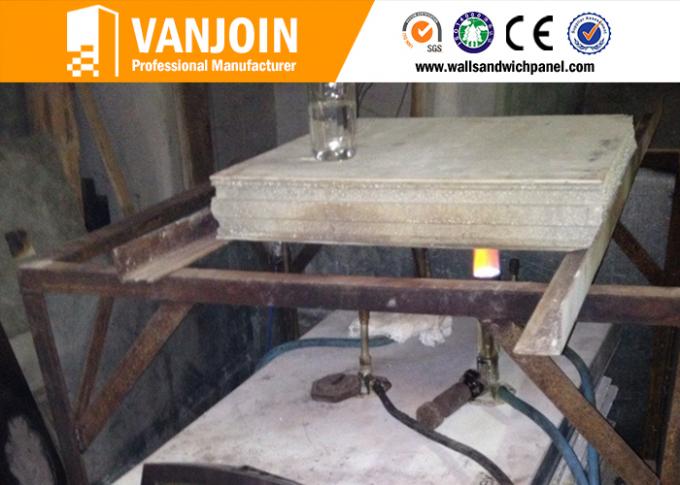

TEST :Hot Sale Buiding Material Fireproof Testing In Philippines(240 minutes/1000℃)
| | | | ||||
| Thickness | 60mm | 90mm | 120mm | 60mm | 90mm | 120mm |
1 | Anti-impact Capacity/times | ≥5 | ≥5 | ≥5 | ≥8 | ≥10 | ≥15 |
2 | Anti-bending damageload/times over deadweight | ≥1.5 | ≥1.5 | ≥1.5 | ≥3 | ≥4 | ≥5 |
3 | Compressive strength /Mpa | ≥3.5 | ≥3.5 | ≥3.5 | ≥5 | ≥5 | ≥5 |
4 | Softening coefficient | ≥0.80 | ≥0.80 | ≥0.80 | ≥1 | ≥1 | ≥1 |
5 | Surface density g/kg | ≤70 | ≤90 | ≤110 | ≤55 | ≤70 | ≤85 |
6 | Moisture rate a/% | ≤12/10/8 | ≤10/9/7 | ||||
7 | Drying shrinkage value /mm/m | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.45 | ≤.0.5 | ≤0.5 |
8 | Drying shrinkage value /mm/m | ≥1000 | ≥1000 | ≥1000 | ≥1200 | ≥1300 | ≥1500 |
9 | Sound insulation capacity in the air /Db | ≥30 | ≥35 | ≥40 | ≥35 | ≥40 | ≥45 |
10 | Fire proof limit /h | ≥1 | ≥1 | ≥1 | ≥2.5 | ≥3 | ≥4 |
11 | Heat transfer coefficient b/w/. |
|
| ≤1.0 |
|
| ≤1.0 |
12 | Radioactivity Limit | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
13 | IRa Inner radiation indexes | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
14 | Ir Outer radiation indexes | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
6. Application:
Can replace construction materials as red bricks, clay solid bricks, air bricks, color-coated steel sandwich boards, gypsum blocks, wire spatial grid structure perlite boards, and perlite porous board
Can widely be applied to wall materials of various high and low buildings such as banks, office buildings, hospitals, schools, hotels, malls, amusement halls, active barracks, old houses reconstruction, residences, and workshops
For Exterior Wall

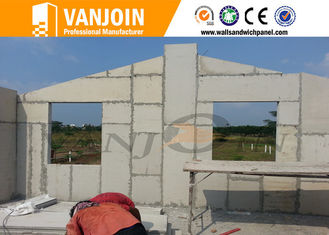

Interior & Exterior & Partition Wall
7. Packing:
Standard exporting packing
Wrapped with plastic thin film,polyethylene foamed sheet,edge protect,packing belt,solid pallets.
18 pallets in a 20'GP
