Product Details:
Payment & Shipping Terms:
|
| Product Name: | Sandwich Panel Production Line | Type: | Semi Automatic,Full Automatic |
|---|---|---|---|
| Advantage: | High Output, Easy Maintenance, Long-term Professional Services | Life Time: | More Than 20 Years |
| Warranty: | 1 Year | Color: | Customized |
| Production Capacity: | 1,000,000 SQM / Year | Material: | Metal |
Semi Automatic polyurethane sandwich panel production line , Easy Maintenance
1. Three Kinds of eps sandwich panel machine
(1) full automation line
(2) Semi-automation line
(3) Hand-operation line
2. Labors and Land Reuired(eps sandwich panel machine)
| Annual Output(m2) | Quantity of Moulding Cars(set) | Quantity of Workers Required | Prodction Area(m2) | Stacking Area(m2) |
| 100,000 | 5 | 8--13 | 500 | 1000 |
| 200,000 | 8 | 10--18 | 600 | 2000 |
| 300,000 | 10 | 12--20 | 700 | 3000 |
| 400,000 | 11 | 15--23 | 800 | 4000 |
| 500,000 | 12 | 18--28 | 900 | 5000 |
| 600,000 | 13 | 22--32 | 1000 | 6000 |
| 700,000 | 14 | 25--35 | 1100 | 7000 |
| 800,000 | 15 | 28--38 | 1200 | 8000 |
| 900,000 | 16 | 32--42 | 1300 | 9000 |
| 1,000,000 | 17 | 35--46 | 1400 | 10000 |
3. Advantages of eps sandwich panel machine
(1) One-key intelligent operation
(2) Unique Operation Software
(3) Addictives (with patent)
(4) Measuring precisely ensuring each panel is with exactly same materials and ratio
(5) Easy maintenance by demounting the broken piece
(6) Recycling use the eps foam& eco-friendly
(7) Use local resources to reduce your production cost( sand, Volcanic rock,Plant seeds)
(8) Professional after-services
4. Production Data of eps sandwich panel machine
| Specification(L*W*T) | Output of One Mould Car |
| 2270mm*610mm*60mm | 60 pcs/set |
| 2270mm*610mm*75mm | 50 pcs/set |
| 2270mm*610mm*90mm | 42 pcs/set |
| 2270mm*610mm*100mm | 40 pcs/set |
| 2270mm*610mm*120mm | 34 pcs/set |
| 2270mm*610mm*150mm | 28 pcs/set |
| 2270mm*610mm*180mm | 22 pcs/set |

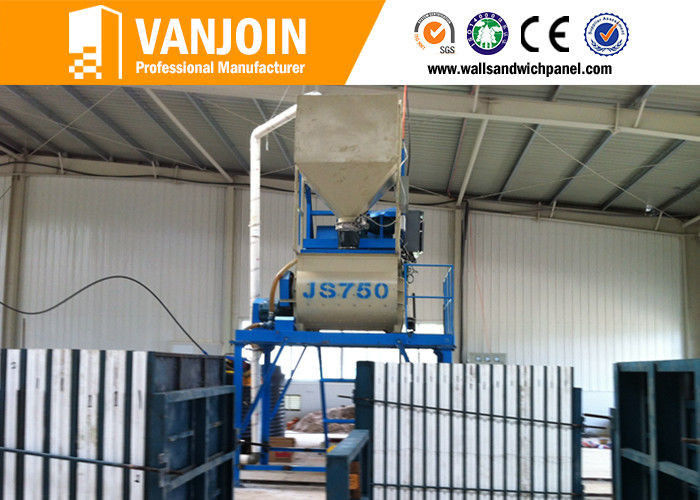

5. Photos of eps sandwich panel machine
