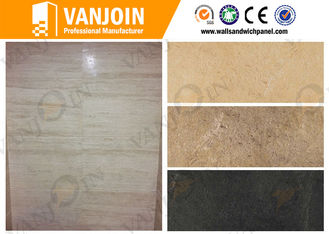

Natural Colors Composite Sandwich Panel For Exterior Wall Decoration , Heat Insulation

Large Image : Natural Colors Composite Sandwich Panel For Exterior Wall Decoration , Heat Insulation

Product Details:

Place of Origin:	Hubei, China
Brand Name:	VANJOIN
Certification:	CE/BV/ISO9001/ISO14001/
Model Number:	ST-4-4R

Payment & Shipping Terms:

Minimum Order Quantity:	100 sqm
Price:	negotiation
Packaging Details:	Packed in carton firstly, and then reinforced with wooden case for outer packing
Delivery Time:	15 working days after received your payment
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000 square meters per month

Detailed Product Description

Product Name:	Dry Hanging Dry Wall Fireproof Heat Insulation Integrated Plate Cladding	Material:	Flexible Clay Material, PU Sandwich, Calcium Silicate Board
Size:	300mm * 600mm; 800mm * 600mm, 1200mm * 600mm, 1220mm *2440mm, Other Size Can Be Customized	Thickness:	80mm, Can Be Customized
Color:	Natural Colors, More Colors Can Be Customized.	Type:	Composite Insulation Board, Integrated Plate
Feature:	Light Weight, Anti-crack, Waterproof, Anti-pollution, Self-cleaning, Fireproof, Breathable, Heat Insulation, Heat Preservation	Application:	Exterior Wall Decoration, High-rise Buildings, Facade, Curtain Wall

Dry Hanging Dry Wall Fireproof Heat Insulation Integrated Plate Cladding

1. Description:
The integrated plate cladding combined by eps foam basic layer as insulation, and soft ceramic tile as decoration layer. It's lightweight, fireproof, heat insulation. Installed by dry hanging, so, it's very fast. It provides you wall solution and decoration solution at the same time.

2. Composition:

Integrated plate is composited by 2 parts:

※ Facing Layer: Soft ceramic tile (optional);
※ Insulation Layer: PU or EPS

3. Technical Parameter, Feature and Performance:

Integrated Plate Technical Parameter	Material	Flexible Clay Material, PU Sandwich, Calcium Silicate Board
	Tile Size	300mm * 600mm; 800mm * 600mm, 1200mm * 600mm, 1220mm *2440mm, Other size can be customized
	Thickness	80mm, can be customized
	Dimensional Stability	±0.5%
	Colors	Natural Colors, More colors can be customized.
	Type	Composite insulation board, integrated plate
	Capacity	15kg/m2
	Fireproof Grade	A Grade
	Water Absorbing Capacity	<0.1 With European Indicators
	Usage	Exterior Wall Decoration, High-rise Buildings, Facade, Curtain Wall

Face Tile Feature	Light Weight	1/6 of other tiles
	Flexible	Soft and crack-free
	Tensile Strength	≧1.0Mpa
	Energy Saving	Low Carbon, Recyclable
	Fast Construction	Easy Install, Even can be pasted onto the original wall or tiles directly.
	Safe & healthy	Non-toxic, Non VOC, Eco-friendly, Environmental friendly
	Weather Resistance	Anti Aging, Alkali Resistance, Acid Resistance
	UV Resistance	Excellent Ultra violet ray resistance
	Fireproof	A-grade, No Naked Flame, No Dense Smoke
	Waterproof	Dump proof, Stain Resistance & Self-cleaning
	Plasticity	Any Pattern, Any Texture, Any Color
	Solid & Firm	Anti-impact, Non Friable
	Freezing, thawing resistance	-30~10 Degree 100 Times, No Cracking, No Striping
	Breathable	Microporous Structure, Water-repellent and Air Permeability
	Frost-Resistance	After 100 Cycles, No Surface Crack, Flake by naked eye observation
	Color Fastness	Mineral sand natural-born color, No color fading.
	Impact Resistance	Soft and Rebound Resilience
	Service Life	50+ Years

Natural Colors Composite Sandwich Panel For Exterior Wall Decoration , Heat Insulation

4. Advantages of Integrated Plate:

※ Light weight,
※ Short construction time,
※ Thermal insulation, heat preservation,
※ Stable performation,
※ Dropping free,
※ Crack free,
※ Waterproof,
※ Fireproof.

5. Comparison with Other Materials:

	Vanjoin Flexible Face Tile	Ceramic Tile	Marble slab	Aluminum Plastic Panel	Glass Curtain Wall	Paint
Weight/ kg/m2	1.5-8	20-60	30-60	9-20	20-50	1.5-5
Flexibility	√	×	×	×	×	Normal
Representability	Colorful, All kinds of
Surface texture	Colorful, All kinds of texture	Normal	×	×	Colorful, little kind of texture
Safety	√	×	×	Normal	×	√
Water-repellent	√	√	√	√	√	√
Installation Cost	Cheap	Normal	Expensive	Expensive	Expensive	Cheap
Air permeability	√	×	×	×	×	Normal
Service life	≥50years	≥30years	≥30years	≥10years	≥25years	≥10years

6. Installation and Construction:

※ After basic level processing, setting line, snap the line for positioning.
※ Apply cement mortar on the bottom side and paste the plate onto the wall.
※ Use achorage parts to connect the plates.
※ Jointing the gaps.
※ Completed results after finish construction.

7. Applications:

Vanjoin thermal insulation and decoration integrated plate mainly be used as exterior wall decoration, facade, curtain wall, especially as cladding for high-rise buildings, etc.
