Product Details:
Payment & Shipping Terms:
|
| Name: | Construction Material Making Machinery | Automatic: | Full, Semi Automatic Or Manual |
|---|---|---|---|
| Capacity: | 100,000-1,000,000 Square Meter/year | Panel Types: | EPS / Perlite / Ceramicite Sandwich Panel |
| Panel Length: | 2270mm, 2440mm, 2700mm, 3000mm | Panel Width: | 610mm |
| Thickness: | 60,75, 90, 100, 120, 150, 180mm | Application: | Interior Wall, Exterior Wall, Roof Or Floor |
| Mould Type: | Vertical Mould Machine | Installation: | Our Engineer Is Available To Install Machines |
| Guaranty: | 12 Month | Sevice Time: | More Than 20 Years |
Eco friendly Construction Material Making Machinery for Lightweight Sandwich Panel
I. Types of Lightweight Sandwich Panel Construction Material Making Machinery
Three Types of Lightweight sandwich panel making machinery:
Manual, Auto-matic and Full Automatic.
II. Details of Lightweight Sandwich Panel Construction Material Making Machinery
| Name | Lightweight Sandwich Panel Construction Material Making Machinery |
| Types |
1. Full automation line 2. Semi-automation line 3. Manual Line |
| Products | EPS / Perlite / Ceramicite Sandwich Panel |
|
Specification (sandwich panel) |
Length: 2270mm, 2440mm, 2700mm, 3000mm Width: 610mm Thickness:60mm,75mm, 90mm, 100mm, 120mm, 150mm, 180mm |
|
Application (sandwich panel) |
Interior wall, exterior wall, roof for house, villa, apartment, school, hotel, office building and so on |
| Capacity | 100,000-1,000,000 square meter/year |
| Trade terms | EXW, FOB, CNF, CIF |
| Payment terms | TT, L/C |
| Payment condition |
1. 40% TT deposit in advance, 55% TT balance before delivery, and 5% after installation but before adjusting machines by our engineer. 2. 100% L/C at sight |
| Delivery time | 30-45days after getting advanced payment |
| Loading port | Wuhan / Shanghai Port |
| Package | Standard exported packing |
| Our service |
1. Investment cost calculation 2. Capacity calculation 3. Factory design 4. Production line layout design 5. on site engineers for installation and guidance 6. Service life: over 20 years 7. Warranty :1 year 8. Free training |
| Your preparation |
1. Raw materials:EPS, sand, cement, water, addictives and ect.(your local materials can also be used) 2. Land (see specifications) 3. Workers (see specifications) |
III. Specifications of Lightweight Sandwich Panel Construction Material Making Machinery
| Annual Output(m2) | Quantity of Moulding Cars(set) | Quantity of Workers Required | Prodction Area(m2) | Stacking Area(m2) |
| 100,000 | 5 | 8--13 | 500 | 1000 |
| 200,000 | 8 | 10--18 | 600 | 2000 |
| 300,000 | 10 | 12--20 | 700 | 3000 |
| 400,000 | 11 | 15--23 | 800 | 4000 |
| 500,000 | 12 | 18--28 | 900 | 5000 |
| 600,000 | 13 | 22--32 | 1000 | 6000 |
| 700,000 | 14 | 25--35 | 1100 | 7000 |
| 800,000 | 15 | 28--38 | 1200 | 8000 |
| 900,000 | 16 | 32--42 | 1300 | 9000 |
| 1,000,000 | 17 | 35--46 | 1400 | 10000 |
IV. Main Systems of Lightweight Sandwich Panel Construction Material Making Machinery
1) Foaming System including: Electric / oil / gas Boiler + EPS foaming machine
2) Raw material storage measuring and conveying system: AUTOMATIC weighing and supply
3) Mixing system: two sets double-horizontal-shaft compulsory mixing and discharging separately.
4) Wall panel forming and gating system
1. Railway system
2. Steering system
3. Casting moulding system
5) Automatic Control System: auto feeding; electronic weighing & PLC touch screen One-key Control
V. Advantages of Lightweight Sandwich Panel Construction Material Making Machinery
1. Easy Opration: One-key intelligent operation System; Unique Operation Software
2. Reduce your production cost: you can use local resources (sand, Volcanic rock,Plant seeds)
3. Rich production experience and good after-sale services
We have produced eps sandwich panel for over 10 years with annual capacity 4,000,000m²,
exporting to more than 40 countries. we can solve all production problems you meet.

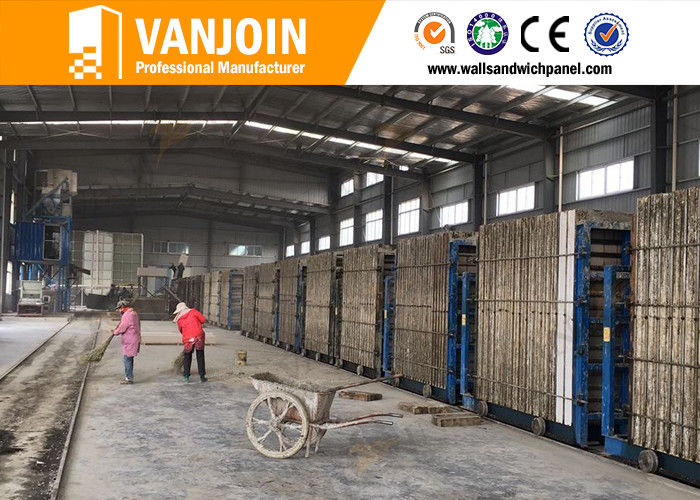

VI. Photos ofLightweight Sandwich Panel Construction Material Making Machinery
Final Product: Lightweight EPS Sandwich Panel
