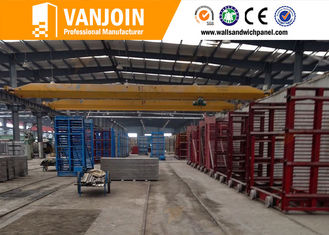

Automatic Wall Sandwich Panel Production Line / EPS Cement Panel Machine

Automatic Wall Sandwich Panel Production Line / EPS Cement Panel Machine



3 kinds of panel Production Line:



Full automation line

Semi-automation line

Hand-operation line



Specificcation of panel production line:

annual output(m2)	quantity of  moulding cars(set)	quantity of workers required	prodction area(m2)	stacking area(m2)
100,000	5	8-13	500	1000
200,000	8	10-18	600	2000
300,000	10	12-20	700	3000
400,000	11	15-23	800	4000
500,000	12	18-28	900	5000
600,000	13	22-32	1000	6000
700,000	14	25-35	1100	7000
800,000	15	28-38	1200	8000
900,000	16	32-42	1300	9000
1,000,000	17	35-46	1400	10000

























Outstanding Advantages:











Main Advantages of Vanjoin foaming system:



1. High technology to keep every part safe

2. High speed EPS output

3. Easy and convenient for operation

4. Long-term stability

oil tank, boiler, EPS Pre-expander, fluidized bed, EPS silo, etc.



Main Advantages of Vanjoin storage&conveyor system:



1. Easy and rich experience design.

2. Easy operation: Very easy to operate for simple design.

  cement: screw conveyor, sand: bucket elevator, water: pipe, etc

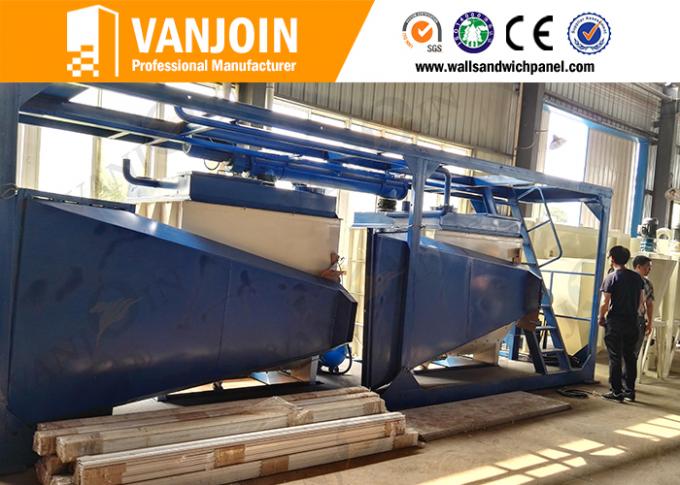

Main Advantages of Vanjoin mixing system:



1. Cost efficiency: design every part simple and practical.

2. High output: Need only 5 minutes to finish one cubic meter raw material.

3. Easy operation: Very easy to operate for simple design.



Cement metering system, water metering system, EPS measuring conveying system,Additive storage and metering system, etc

central control, pneumatic control, double tank mixer, etc.

Main Advantages of Vanjoin moulding system:



1. Face panel and core forming by one time compound

2. Low input, high output and returns.

3. Easy and convenient for operation

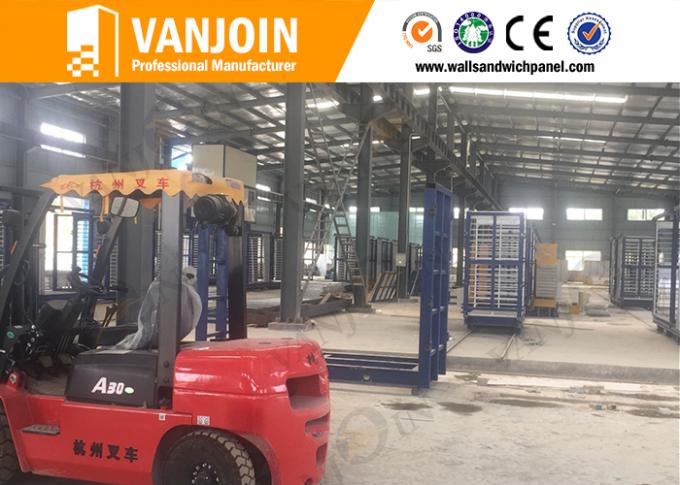

 vertical traction-type (automatic) sandwich panel mold car, automatic ferry vehicles, steel rail

Specification(L*W*T)	Output of One Mould Car
2270mm*610mm*60mm	60 pcs/set
2270mm*610mm*75mm	50 pcs/set
2270mm*610mm*90mm	42 pcs/set
2270mm*610mm*100mm	40 pcs/set
2270mm*610mm*120mm	34 pcs/set
2270mm*610mm*150mm	28 pcs/set
2270mm*610mm*180mm	22 pcs/set



















What you can get from us?

•  Over 20 years service life
•  Maintenance time: 2year
•  Fully automatic production system
•  Unique raw materials measuring ,delivery and mixing system

•  Long-term professional services

•  High output with less workers
•  Free training

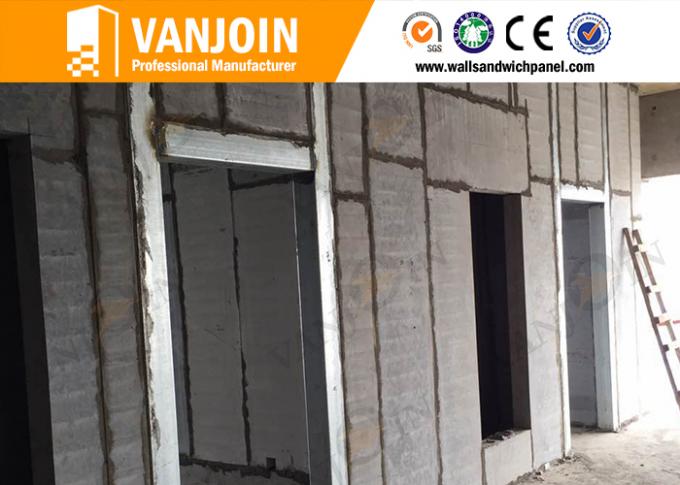

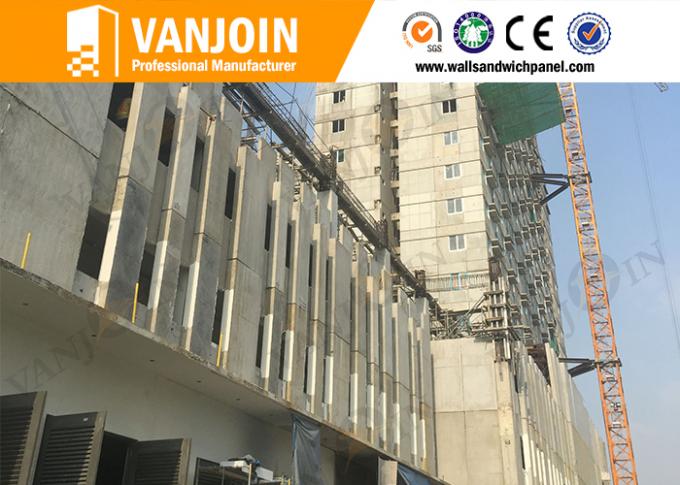

Wall panel application:

use for interior wall, exterior wall, flooring panel and roofing panel for various low houses and high buildings.

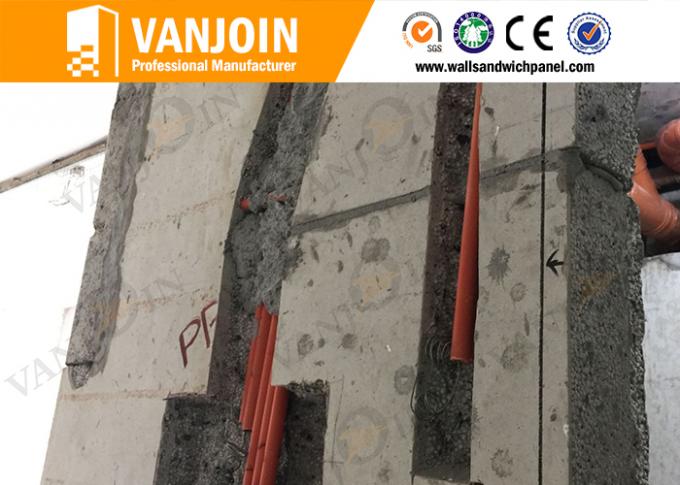

Water & electricity pipe installation
