100mm Thermal Insulation Sandwich Wall Panels for Building Partition

100mm Thermal Insulation Sandwich Wall Panels for Building Partition

Free sampls can provided

1. Sandwich Wall panel Composition:

EPS Sandwich Wall Panel take 5mm Calcium Silicon Board as surface panel, with EPS / ceramsite / perlite, Cement, Sand or fly ash as filler.

2. Sandwich Wall panel Specification:

3. Main Features of Vanjoin EPS Sandwich Panels
a. Light weight
The weight of Vanjoin EPS Sandwich Wall Panel is only 1/6 of traditional brick
b. Fireproof
Our sandwich panel approved fireproof test for 4 hours 1000 degree; got Grade A(GB/T9987).
c. Area-saving
Comparing with tradition building materials, you can save 4 m² per 100 m², if using our sandwich panel.
d. Waterproof
Good waterproof perfermance. No droplets observed behind the panel, test 24 hours at 250mm water head.
e. Sound-insulation
Excellent acoustic perfermance 38dB-46dB, 38dB for 60mm thickness panel, 46dB for 150mm thickness panel.
f. Fast and easy construction, Labor saving
Two experienced workers installation one day, they can install 50-80 ㎡.
g. Long life usage:70 years

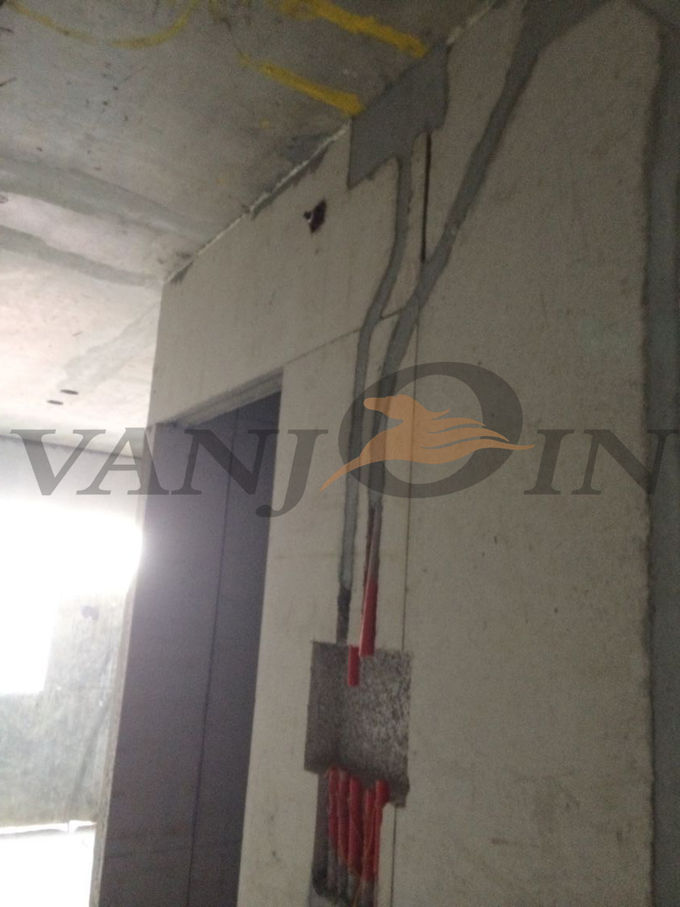

Electricity and Waterpipe Installation:

4. Sandwich Wall panel Application:

Eps cement sandwich wall siding can be widely used as interior wall, exterior wall, roof and floor, prefab house, high-rise building, villa, etc.

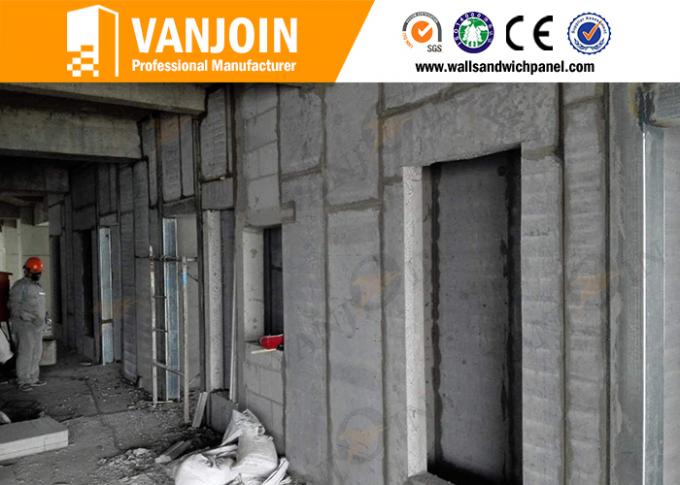

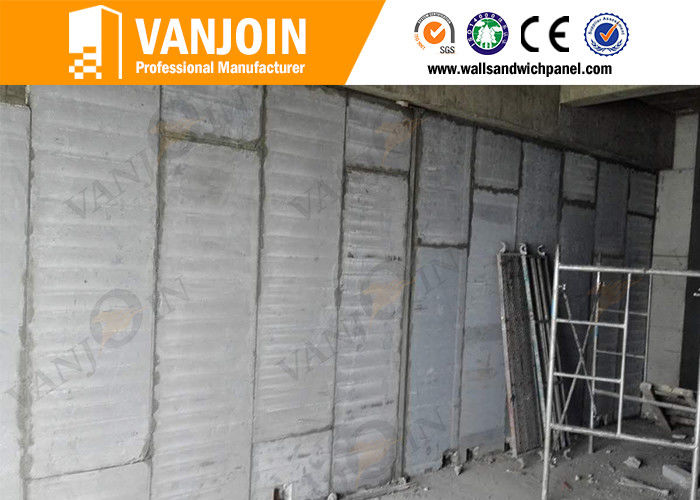

Use for exterior & interior & partition wall

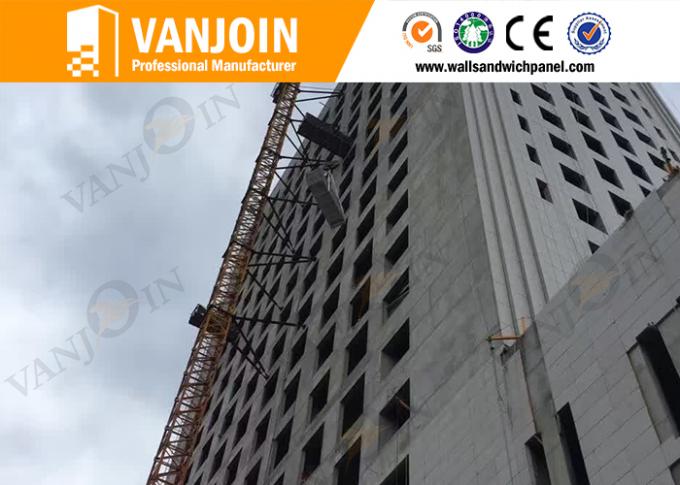

Exterior wall for high buildings

5.Sandwich Wall panel Installation
Setting the line and carrying the board in position;
Sawing board basing on requirement;
Sizing cement on tenon side of two boards;
Carrying the board prepared to be installed to the installation place, correcting the wall board by gavelock and making it close tightly;
Grouting and filling starch;
Sticking fiber glass mesh;
Apply putty powder and level up;
Finished.

6. FAQ:

1 ). How many years your company has been in this field?

VANJOIN : More than 10 years of manufacturing EPS concrete sandwich wall panel,

                now we are TOP 1 In middle of China, and among top 2 in china in this field .

2 ). Where is your main market of VANJOIN?

VANJOIN : Main market Asia, South America, Africa,South East Asia is our largest market,

                Mid East is our second largest market.

3 ). Exporting details :

VANJOIN : Loading & shipping 700 x 20 GP each month.

4 ). More information of VANJOIN factory?

VANJOIN : land area 30,000 m2 machines, full-automatic production line Productivity:

                2,000,000 m2 wall panel per year.

5 ). How could i get the samples?

VANJOIN : We will send you the free samples, catalogues, CD, but the Express charge is required.

               If you have the DHL, TNT, UPS, FedEx account, this is the best.

               If not, you can transfer money to our Western Union or Paypal, then we will send you.

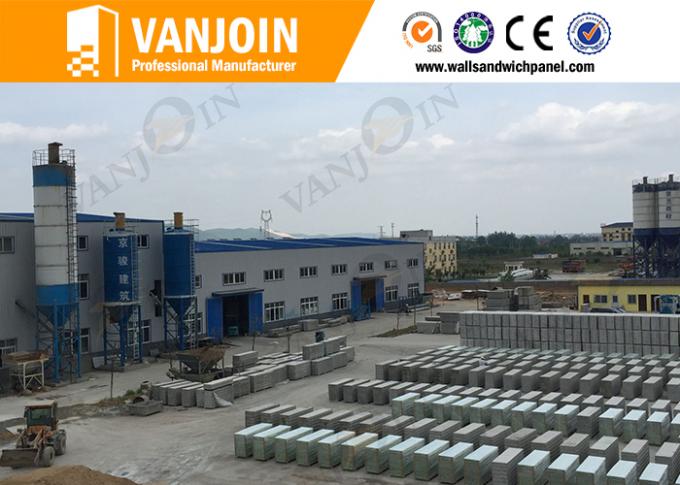

Our workshop
