Durable sandwich making machine lightweight wall panel machine

Large Image : Durable sandwich making machine lightweight wall panel machine

Product Details:

Place of Origin:	Hubei, China
Brand Name:	VANJOIN
Certification:	CE/BV/ISO9001/ISO14001/
Model Number:	PM-10-707R

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	Machinery is carefully packed with wooden pallets for outer packing, components and parts are packed in cartons.
Delivery Time:	30 working days after received your payment
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	20 sets per month

Detailed Product Description

Product Name:	Construction Material Making Machinery For Lightweight Sandwich Wall Panel	Material:	Stainless Carbon Steel
Automatic Grade:	Full Automatic, One-key Operation	Colors:	Blue, Other Colors Can Be Customized
Voltage:	380V, 50Hz	Main Component:	Mixing System; Forming And Gating System
Usage:	Produce Lightweight Foam Sandwich Wall Panels	Machine Capacity:	100,000 - 2,000,000 M2 Per Year

Durable sandwich making machine lightweight wall panel machine

1. Description:

Vanjoin Group dedicates in developing and innovating lightweight eps cement sandwich wall panel machinery for decades years, we have acquired national invention patent for our machinery and lightweight wall panels.

Composition:

※ Boiler System;
※ Raw Materials Storage/Measuring/Conveying System;
※ Mixing System;
※ Forming and Gating System

2. Technical Parameter and Production Data:

Technical Parameter	Material	Stainless Steel, Anti corrosion, Anti rust
	Color	Blue, other colors can be customized
	Voltage	380v
	Main Component	Boiler System; Raw Materials Storage/Measuring/Conveying System; Mixing System; Forming and Gating System
	Components	Boiler System, Raw Materials Storage/Measuring/Conveying System, Mixing System, Foaming and Gating System
	Automatic Grade	Full Automatic
	Usage	Produce sandwich wall panels
	Machine Capacity	100,000 - 2,000,000 m2 per Year
	Warranty	1 Year
	Service Time	20+ Years

Production Data	Thickness (mm)	Width (mm)	Length (mm)	Production Quantity (pc/set)	Area (㎡/set)	Raw Materials (m³)
	60	610	2270	60	83.0	4.15
	75	610	2270	50	69.2	4.50
	90	610	2270	42	58.1	4.65
	100	610	2270	40	55.3	4.98
	120	610	2270	34	47.0	5.17
	150	610	2270	28	38.7	5.42
	180	610	2270	22	30.4	5.77

3. Vanjoin Automatic Sandwich Wall Panel Machine Competitive Advantage:

※ Produce patented sandwich wall panels with excellent performance;
※ Unique raw material measuring, delivery and mixing system;
※ High-tech support from the talents of specialized research group in famous university;
※ Strict quality control;
※ Experienced and well trained workers and installation team;
※ Professional designer, engineer, technology

4. Raw Materials Storage/Measuring/Conveying System:

※ Automatic Cement Supply System;
※ Automatic Sand Supply System;
※ Automatic Water Supply System;
※ Automatic Foam Supply System;
※ Automatic Additive Supply System;

Durable sandwich making machine lightweight wall panel machine

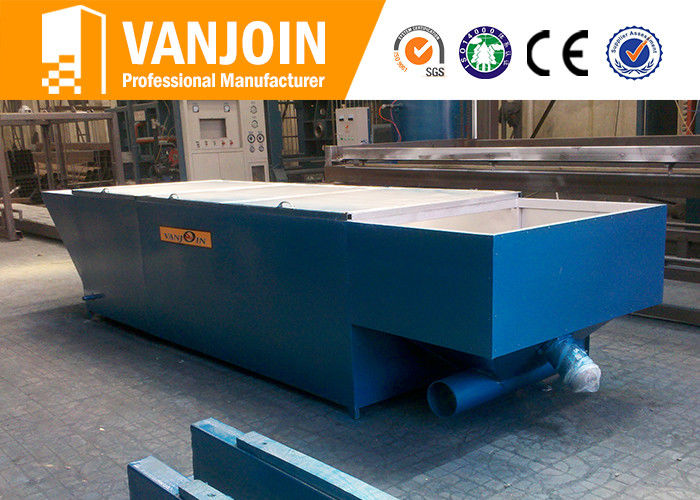

5. Mixing System

Through full automatic control system, it can realize the functions like automatic mixing and discharging, automatic supply cement, sand, water, foam materials and additives, etc.

Body Frame: Two-storey design by adopting section bars wedded together.

6. Forming and Gating System

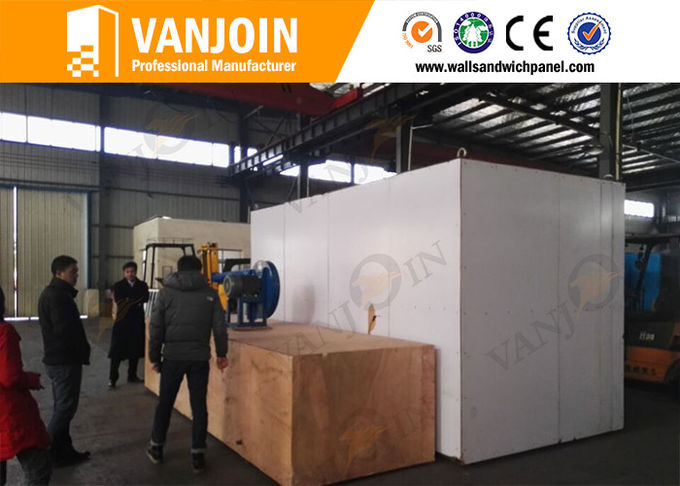

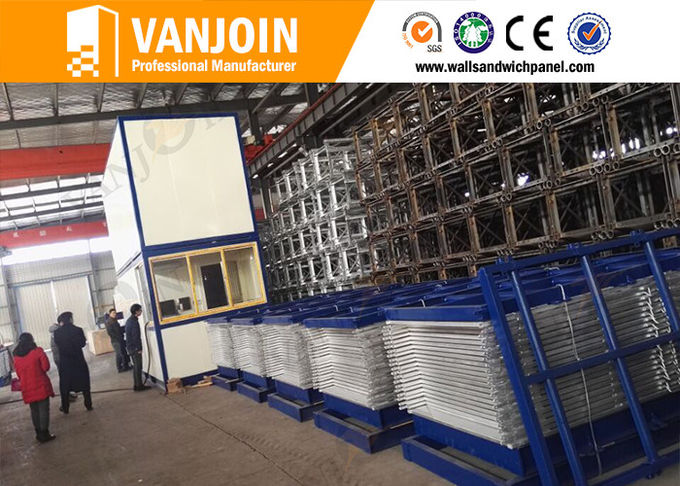

Vertical Automatic Mould Machinery

This mould has high output and returns, low input, high reach in production output of 100,000 to 2,000,000 square meters annual capacity.

Vertical Automatic Mould Technical Parameters:
Name			Main Parameters
Overall Dimensions (Length × Width × Height)			3180 × 1380 × 3480
Weight			2800 KGS
Mobile Power(KW)			2.2
Mobile Speed(m/min)			≤60
Main Components	Host		Chassis assembly(power device), former stands, after stands, after plate, rod
Main Components	Accessories		Press mould, side mould, bottom mould.
Production Information	Thickness (mm)	Width (mm)	Length (mm)	Quantity (pcs/set)	Area (m2/set)	Raw Material (m3)
	60	610	2270	48	66.5	3.32
	75	610	2270	42	58.2	3.78
	90	610	2270	36	49.8	3.99
	100	610	2270	32	44.3	3.99
	120	610	2270	30	41.5	4.57
	150	610	2270	24	33.2	4.65
	180	610	2270	20	27.7	4.71
Remarks	Two transition cars, production line conversion use, one set cheer machine, spray release agent use, pour table, track (the height of the mould cab be customized by customers specific requirements)
