Product Details:
Payment & Shipping Terms:
|
| Product Name: | Sandwich Panel Production Line | Type: | Semi Automatic,Full Automatic |
|---|---|---|---|
| Advantage: | High Output, Easy Maintenance, Long-term Professional Services | Life Time: | More Than 20 Years |
| Warranty: | 1 Year | Color: | Customized |
| Production Capacity: | 1,000,000 SQM / Year | Material: | Metal |
Expanded Polystyrene Foam Sandwich Wall Panel Machine Full Automatic
1. Three Kinds of Expanded polystyrene foam sandwich wall panel machine
(1) full automation line
(2) Semi-automation line
(3) Hand-operation line
2. Specification of Expanded polystyrene foam sandwich wall panel machine mould cars
| VJ-HT2270 | ||||||
| Name | Main Parameters | |||||
| Overall Dimensions(L*W*H) | 3180*1380*3480mm | |||||
| Weight | 2800KG | |||||
| Mobie Power(KW) | 2.2 | |||||
| Mobie Speed(m/min) | ≤60 | |||||
| Main Components | Host | chassis assembly (power device), former stands, after stands, after plate, rod | ||||
| Accessories | pressing plate, side mould | |||||
| Production Information | Thickness (mm) | Width (mm) | Length (mm) | Quantity (pcs/set) | Area (m2/set) | Raw Material (m2) |
| 60 | 610 | 2270 | 60 | 83.0 | 4.15 | |
| 75 | 610 | 2270 | 50 | 69.2 | 4.50 | |
| 90 | 610 | 2270 | 42 | 58.1 | 4.65 | |
| 100 | 610 | 2270 | 40 | 55.3 | 4.98 | |
| 120 | 610 | 2270 | 34 | 47.0 | 5.17 | |
| 150 | 610 | 2270 | 28 | 38.7 | 5.42 | |
| 180 | 610 | 2270 | 22 | 30.4 | 5.77 | |
|
|
||||||
3. Advantages of Expanded polystyrene foam sandwich wall panel machine
(1) One-key intelligent operation
(2) Unique Operation Software
(3) Addictives (with patent)
(4) Measuring precisely ensuring each panel is with exactly same materials and ratio
(5) Easy maintenance by demounting the broken piece
(6) Recycling use the eps foam& eco-friendly
(7) Use local resources to reduce your production cost
(8) Professional after-services
4.Parameters for Expanded polystyrene foam sandwich wall panel machine:
| Item No. | VJ-II |
| Rated current | 2.44A |
| Rated power | 1.1 KW |
| Voltage | 380V3- |
| Working mode | S1 |
| Machine Type | 2W-7 |
| Capacity | 1.25m3/ hour |
| Dimension(L*D*H) | 3200X146X2800 |
| Weight(kg) | 2800 |
| Stroke speed |
<30 meter/minute |

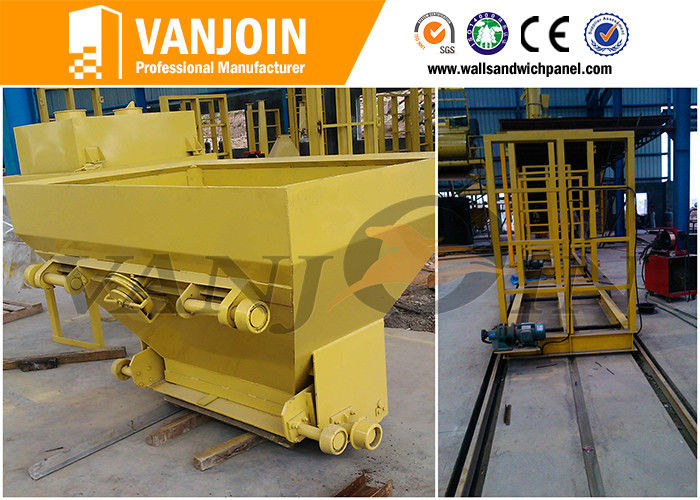

5. Detailed Photos of Expanded polystyrene foam sandwich wall panel machine
(1) Foaming Machine of EPS Cemrnt Concrete Sandwich Wall Production Line/Machine
(2)Storage,Conveyor and Mixing Machina of EPS Cemrnt Concrete Sandwich Wall Production Line/Machine
(3) Moulding Car of EPS Cemrnt Concrete Sandwich Wall Production Line/Machine
