Expandable EPS Polystyrene Concrete Wall Panels For Prefab House

Large Image : Expandable EPS Polystyrene Concrete Wall Panels For Prefab House

Product Details:

Place of Origin:	China
Brand Name:	Vanjoin
Certification:	CE, BV, ISO
Model Number:	VJWP-YRR14

Payment & Shipping Terms:

Minimum Order Quantity:	1X20GP Container
Price:	negotiation
Packaging Details:	Standard exporting packing ( wraped with plastic film , edge protect and good pallet )
Delivery Time:	7~10 working days after receive payments
Payment Terms:	L/C,T/T,Western Union, D/A,D/P, MoneyGra
Supply Ability:	200000 Square Meters per Mont

Detailed Product Description

Product Name:	Sandwich Wall Panels	Specification(LWT):	227061060/75/90/100/120/150mm
Raw Materials:	Eps, Sand, Cement, Fly Ash, Water, Additive, Etc	Construction:	3 Workers One Week For 100m2 House
Fireproof:	Under 1000 Degree For 4 Hours	Sound Insulation:	40~56 DB
Anti-earthquake:	Class 8-13	Service Life:	70 Years

Expandable Polystyrene EPS Sandwich Wall Panel Partition Wall Panels Prefab House

Free sample can be provided!!!

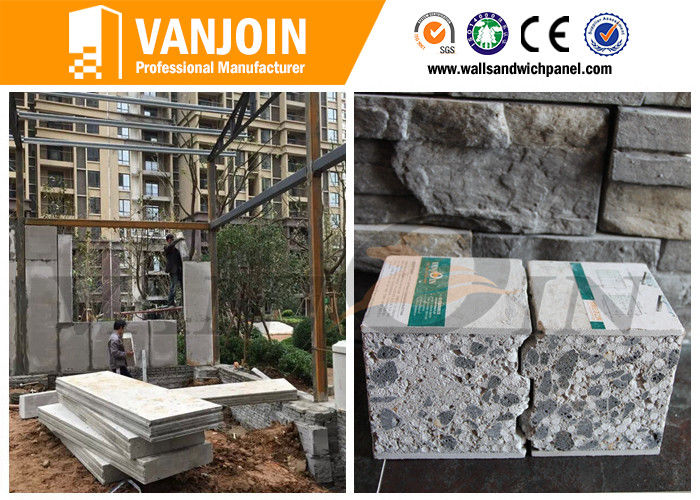

1. Composition:

Calcium Silicate Board as face panel, Cement, EPS and fly ash as core

2. EPS Sandwich wall panel for building construction:

A kind of light weight energy saving compound board material taking fibre reinforced calcium silicon board or cement calcium silicon board as panel,with cement,EPS or ceramsite,fly ash as fillers and forming by one time compound.

3. Specification

Name	Specification (mm)	Weight (kg/m2)	Packing (pcs and m 2 per 20' FCL)
VJ Light Weight Compound Sandwich Panel	2270x610x60	45~48	315pcs, 436m2
	2270x610x75	50~53	252pcs, 349m2
	2270x610x90	55~58	207pcs, 287m2
	2270x610x100	60~65	189pcs, 262m2
	2270x610x120	65~75	153pcs, 212m2
	2270x610x150	80~90	126pcs, 175m2

4.Advantage:

Energy-saving, light weight, environment-friendly
Area-saving
Waterproof and damp proof
Fire-proof
Sound-insulation
Best hanging force
Anti-seismic and impact resistance
Largest Span and height thin webbed wall
Most civilized, healthy and high efficient construction

5.Technology Index:

	Item	National Standards			Testing Indexes
	Thickness	60mm	90mm	120mm	60mm	90mm	120mm
1	Anti-impact Capacity/times	≥5	≥5	≥5	≥8	≥10	≥15
2	Anti-bending damage load/times over deadweight	≥1.5	≥1.5	≥1.5	≥3	≥4	≥5
3	Compressive strength /Mpa	≥3.5	≥3.5	≥3.5	≥5	≥5	≥5
4	Softening coefficient	≥0.80	≥0.80	≥0.80	≥1	≥1	≥1
5	Surface density g/m2	≤70	≤90	≤110	≤55	≤70	≤85
6	Moisture rate a/%	≤12/10/8			≤10/9/7
7	Drying shrinkage value /mm/m	≤0.6	≤0.6	≤0.6	≤0.45	≤.0.5	≤0.5
8	Hanging Force/N	≥1000	≥1000	≥1000	≥1200	≥1300	≥1500
9	Sound insulation capacity in the air /Db	≥30	≥35	≥40	≥35	≥40	≥45
10	Fire proof limit /h	≥1	≥1	≥1	≥2.5	≥3	≥4
11	Heat transfer coefficient w/m2.k			≤1.0			≤1.0
12	Radioactivity Limit	≤1	≤1	≤1	≤1	≤1	≤1
13	IRa (Inner radiation indexes)	≤1	≤1	≤1	≤1	≤1	≤1
14	Ir (Outer radiation indexes)	≤1	≤1	≤1	≤1	≤1	≤1

6. Application:

For interior and exterior wall partition on steel or concrete structure building, new construction or renovations. It can replace construction materials such as block, wire spatial grid structure perlite board, perlite porous board and etc. It can widely be applied to wall materials of various high and low buildings such as bank, office building, hospital, school, hotel, mall, amusement, old house reconstruction, residence and workshop.

7. Supplied to:

Iran, Russia, Australia, India, Dubai, South Africa and so on.

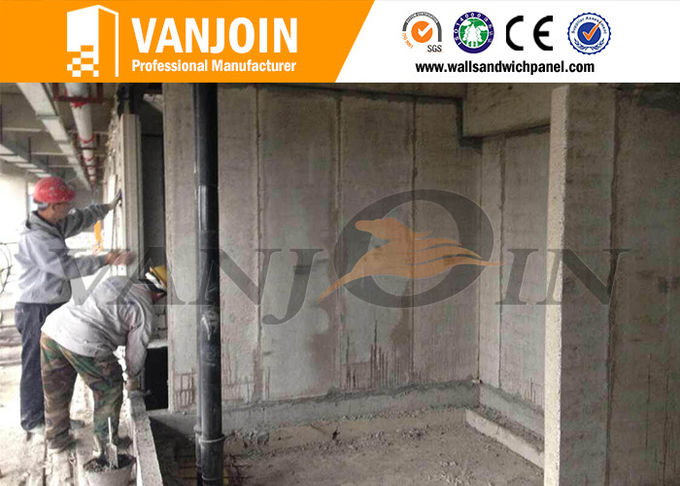

8. Installation:

Setting the line and carrying the board in position;

Sawing board basing on requirement;

Sizing cement on tenon side of two boards;

Carrying the board prepared to be installed to the installation place, correcting the wall board by gavelock and making it close tightly;

Grouting and filling starch;

Sticking fiber glass mesh;

Apply putty powder and level up;

Finished.

Expandable EPS Polystyrene Concrete Wall Panels For Prefab House
